WT2-10 interlocking clay brick machine in pakistan is a new model in our factory, produce 2 pcs per mold, as it is a whole production line, saves labor and have a high capacity.

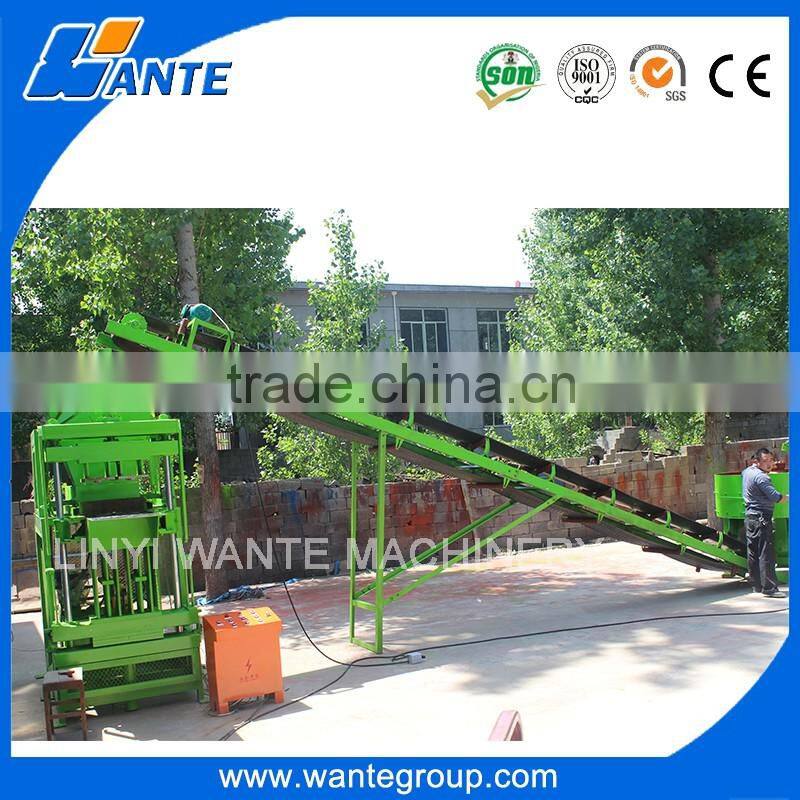

WT2-10 interlocking clay brick machine in pakistan showing

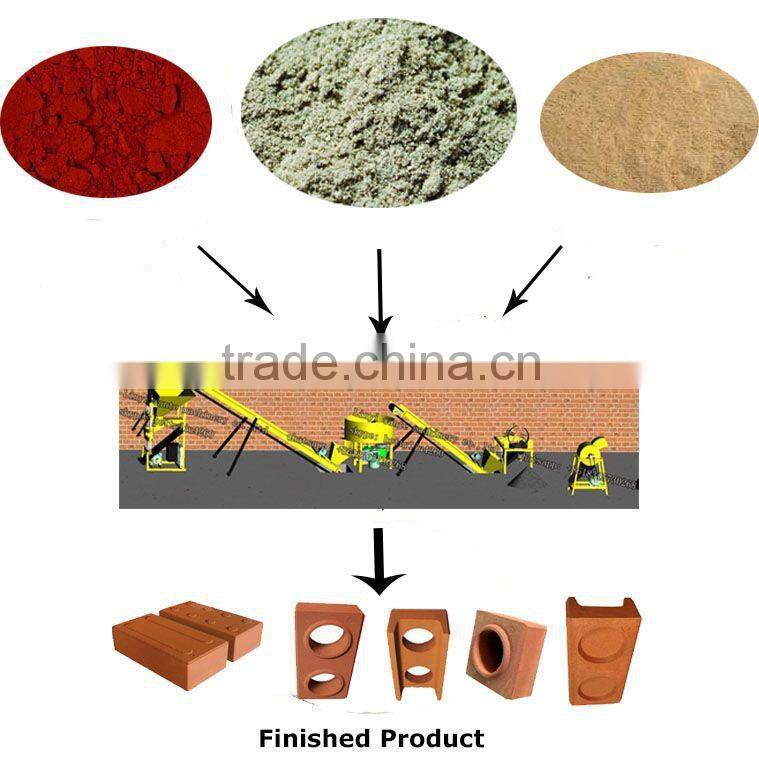

WT2-10 interlocking clay brick machine in pakistan working process :
1. Big clay made into small size by soil crusher
2. Remove the big size clay, use small size clay only
3. Pour the clay and cement to mixer , mixing them with water
4. Transfer the finished raw material to host machine by conveyor machine.
5. Produce green block.
6. Carry the green block to curing aera.

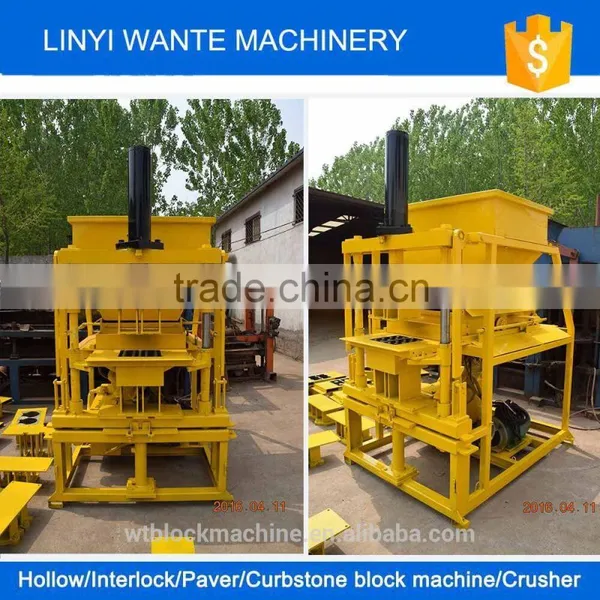

WT2-10 interlocking clay brick machine in pakistan introduction |
1.High capacity:improved from WT1-10,can produce 2 blocks/mould.
2.Automatic interlocking brick production line
3.Hydraulic press

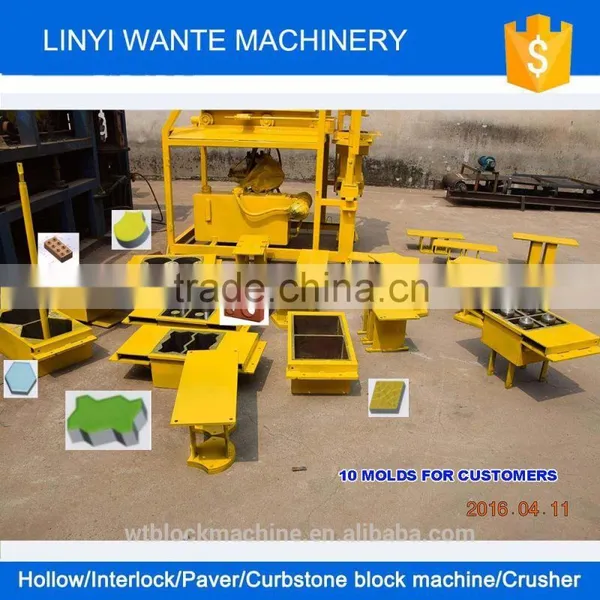

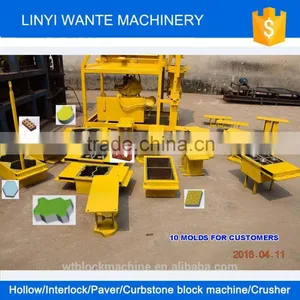

4.Can produce different kinds of interlocking bricks
WT2-10 interlocking clay brick machine in pakistan specification |
| WT2-10 hydraulic interlocking block machine | |
Overall size | 2500(L)×900(W)×2300(H)mm | |
Shaping cycle | 6-8 seconds | |
Power | 7.5 KW | |
15 Hp diesel engine | ||
Pressure | 16Mpa | |
Total weight | 1300 KGS | |
| Conveyor belt | |
Belt width (M) | 6(4.5/3) | |
Belt length (M)/KW | 6/2.2 | |
Belt speed (M/S) | 2 | |
| JD350 mixer | |
Overall size | 1200(L)×1200(W)×1300(H)mm | |
Shaping cycle | 5 mins | |
Volume | 350L (25Kgs Cement) | |
Electricity | 380V/220V/ (adjustable) | |
Total weight | 330KG | |

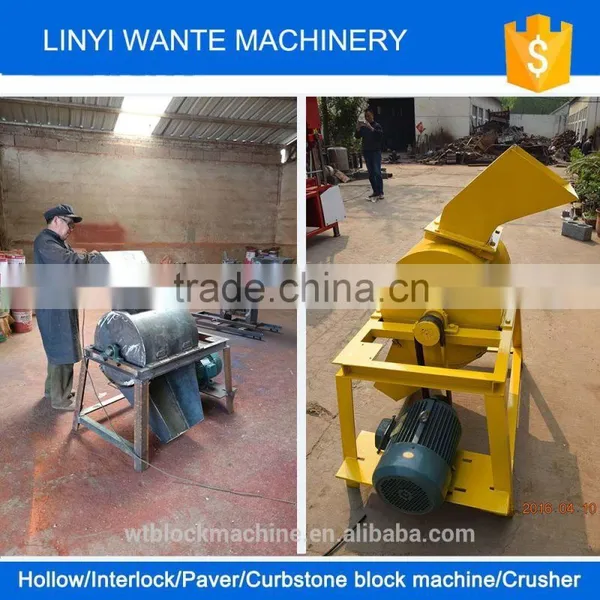

| Soil crusher | |
Overall size mm | 1100(L)x1100(W)x1400(H)mm | |
Motor | 5.5kw | |
Electricity | 220v | |
380v | ||
Capacity | 500KGS/H | |
Total weight | 200 KGS | |

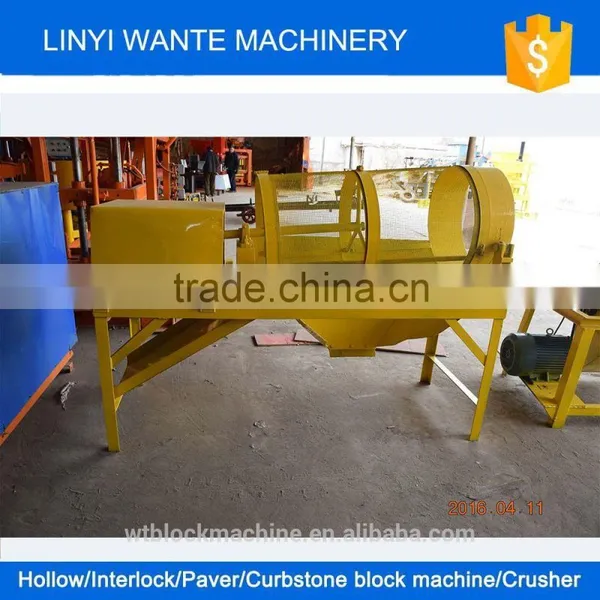

| Soil screen | |
Power | 3KW | |
Capacity
| 480KGS/h | |
Total weight | 300KGS | |
| ||
Bricks test
Delivery site
