Home > Products > New Products > sticky printing machine,roll to roll adhesive label printing machine
sticky printing machine,roll to roll adhesive label printing machine
- 5 Set / Sets per Month
- shenzhen
- T/T PayPal
Product Details
Condition: | New | Plate Type: | Letterpress | Place of Origin: | Guangdong, China |
Brand Name: | Label Source | Model Number: | YTP-260R4C+1 | Usage: | Label Printer |
Automatic Grade: | Automatic | Voltage: | 220V | Gross Power: | 25KW |
Dimensions(L*W*H): | 3.8*1.6*1.8m | Weight: | 3500kg | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

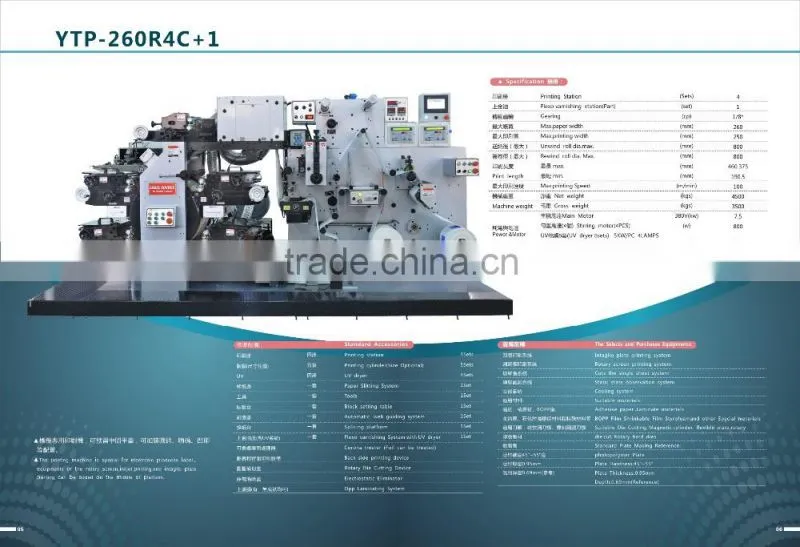

CE standard sticky printing machine, roll to roll adhesive label printing machine
Contact info:
NAME:Zoe Guo
Mobil :+86-18307202117
WECHAT:guohaoran12
Product Feature:
Combined with three kinds of unique function. Cold-stamping, letter press and flexo screen printing. To achive perfect printing effects.
Easy operation. Change of chase and adjustment are simple. Expensive printing material is reduced.
Easy maintenance. The body of machine is made of everlasting precision and durable elements.
Unique design of cell frame follows the oblique degree of inking knife to disengage from the printed material during the quick run and operations.
Data Sheet:
Specification | |
Printing Station | 4sets |
Flexo varnishing station(Part) | 1set |
Gearing | 1/4* cp |
Max.paper width | 260 mm |
Max.printing width | 250mm |
Unwind roll dia.max | 800 mm |
Rewind roll dia.max | 800 mm |
Max printing length | 460.375 mm |
Min printing length | 190.5 mm |
Max printing speed | 100 m/min |
Net weight | 3500 (kgs) |
Gross weight | 4500 (kgs) |
Main motor | 7.5 380v(kw) |
Stirring motor(2pcs) | 800 w 4PCS |
UV dryer 6sets | 5 kw/PC 4LAMPS 7 kw/PC 1LAMPS 27 |
Machine size | 3.8*1.6*1.8m |
Standard Accessorise | |
Printing station | 4sets |
Printing cylinder(Size Optional) | 5 sets |
UV dryer | 4 sets |
Paper slitter system | 1set |
Tools | 1 set |
Block setting table | 1 set |
Automatic web guiding system | 1 set |
Splicing platform | 1 set |
Flexo varnishing system with uv dryer | 1set |
Corona treater (Foil can be treated) |
|
Back side printing device |
|
Rotary die cutting device |
|
Electrostatic Eliminator |
|
Opp laminating system |
Industrial applications:
Our color label printer specialized in Color Label Printer mainly used in cosmetic industry,household goods industry,retailing industry,food and beverage packaging industry,drinks packaging industry,supermarket bar code industry,toys characters industry,medical supplies industry,animal feed industry,shoes and apparel industry,electronic industry,GHS label chemical industry,color box labels industry,anti-theft security industry,electrical nameplate industry, etc.
Company Culture
Dongduan Label Source Printing Machine Co,Ltd is professional and specialized in manufacturing of full rotary letterpress and high precision screen printing equipment .We focus on product research and development, with advance technology and technical support . We provide professional sale and services to customers over the world.
To meet customers' needs, we imported machine parts from Germany, Japan ,Taiwan and USA.
Our professional team has a innovation spirit to provide the best technical solutions for grow up with customers at the same moment
Label Source opinion: GOOD QUALITY
HIGH EFFICIENT
REDUCE THE PRODUCTION COST
UNCREASE COMPETITION POWER
We work together towards success.
FAQ
1) How do I place an order and what information will I have to provide when ordering?
Please provide the details :
Material/Size/Printing color/Surface finishing/packing/cut/Design/Applied place/Usage.
If you not sure what is material or surface finishing used,pls advice where your label will be applied to,we can make suggest to you.
2) Can you send me a free sample printed with my design ?
we suggest a JPG proof to you, then we take pictures for your checking before order shipment. You could also come to our factory and check out our company. Most of our customers choose this.
3)What is your MOQ?
Normally,our MOQ is 1 set,but it is also based on the customer's request.
4) How long can I expect to get the goods?
Normaly, it will take about 30 working days after payment.
5) What about the lead time for production?
Since it's a huge machine, we need to delivery by sea. So the lead time depends on your port position. Usually, it takes 15 days after shipment.
6) How much for delivery ?
It is up to the weight of the package, we compared the cheapest cost for you.
7)What kind of payment options you provide?
-Wire Transfer
-Online payment (Paypal)
-Western union
-T/T, L/C
8)Does your products passed any certifications?
Yes, we have passed CE, more certifications will be passed from this year.
9)What's the quality guarantee?
One year quality guarantee for the products, and our engineer is able to work overseas.
