cheap electromagnetic flow meter
The Kaide Meter KDLD Series electromagnetic flow meter is intended for fluid metering in most industries including water, wastewater, food and beverage, pharmaceutical and chemical.
The basic components of an electromagnetic flow meter are:
The sensor/ detector, which includes the flow tube, isolating liner and measuring electrodes
The converter/ transmitter, which is the electronic device responsible for the signal processing, flow calculation, display and output signals.
Each meter is factory tested and calibrated A calibration certificate is included with each meter.
Specification of electromagnetic flow meter
ITEM | The Specifications of electromagnetic flow meter |
Installation Type | Split/remote, integrated/compact |
Measuring fluid | conductive fluid and slurry |
Caliber | DN6-DN3000 |
End connection | Flange, threaded, clamping, insertion type, etc. |
Electrode materials | Mo2Ti HC HB Pt Ta Ti |
Flange standard | GB, DIN, JIS, EN, SABS, etc. |
Lining Material | PTFE, PFA (resistance to negative pressure), chloroprene rubber, polyurethane,hard rubber (optional conductive ground rubber), F46 |
Electrode Type | Standard type 316L, scraper-type (DN ≥ 50) |
Dielectric conductivity | > 5μs/cm (water> 20μs/cm) |
Accuracy grade | ±0.5% RS. |
Flow Range | 0-10m/s |
Maximum temperature of medium | For rubber liner ≤ 80 °C, for PTFE liner ≤ 120°C |
Ambient temperature | -20 - +60 |
Working pressure | 0.6Mpa-4.0Mpa, the special high rpressure is available |
Protection Level | IP65, IP67, IP68 (optional) |
Power | 220VAC(85~250 voltage) 24VDC(11~40 voltage) |
Display | Forward and backward instantaneous flowrate, total flow, velocity, flowrate percentage with back light |
Output | 4-20mA current output ,0-1kHz frequency output, pulse output per unit volume |
Communication | RS485 @Modbus, RS232@Modbus, HART, Profibus, GPRS, etc. |

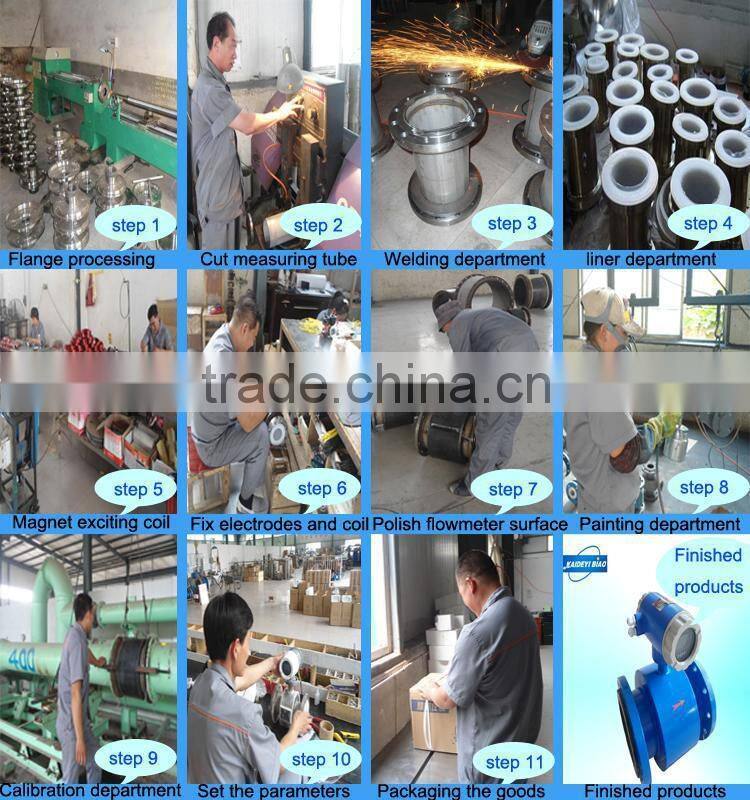

Production steps of electromagnetic flow meter
electromagnetic flow meter electromagnetic flow meter electromagnetic flow meter electromagnetic flow meter electromagnetic flow meter
Characteristics of electromagnetic flow meter
1. Variable forms for different kinds of working conditions. Compact and remote form; Flanged, flange wafer, clamped, threaded, insertion end connection; DC/AC, battery power supply.
2. High accuracy of ±0.5%.
3. Wide size range of 10mm~3000mm, adapt to different size of pipelines.
4. Full choice of liner to accommodate conductive medium from drinking water to strongly corrosive liquid like sulfuric acid.
5. Measurement is not affected by the density, viscosity, temperature, pressure and electroconductibility of fluid.
6. Two-line LCD, able to display positive and negative instantaneous flow and accumulative flow.
7. No pressure loss. No moving parts.
8. Pulse and 4~20mA standard current output. Multiple choice of communications: RS232, RS485, Modbus, Profibus, HART, etc..
9. Surface mount technology(SMT) technology of converter which possesses self-check and self-diagnose functions.
10. Explosion-proof type can be used at relevant explosion-proof sites. IP68 remote type can be used underwater.

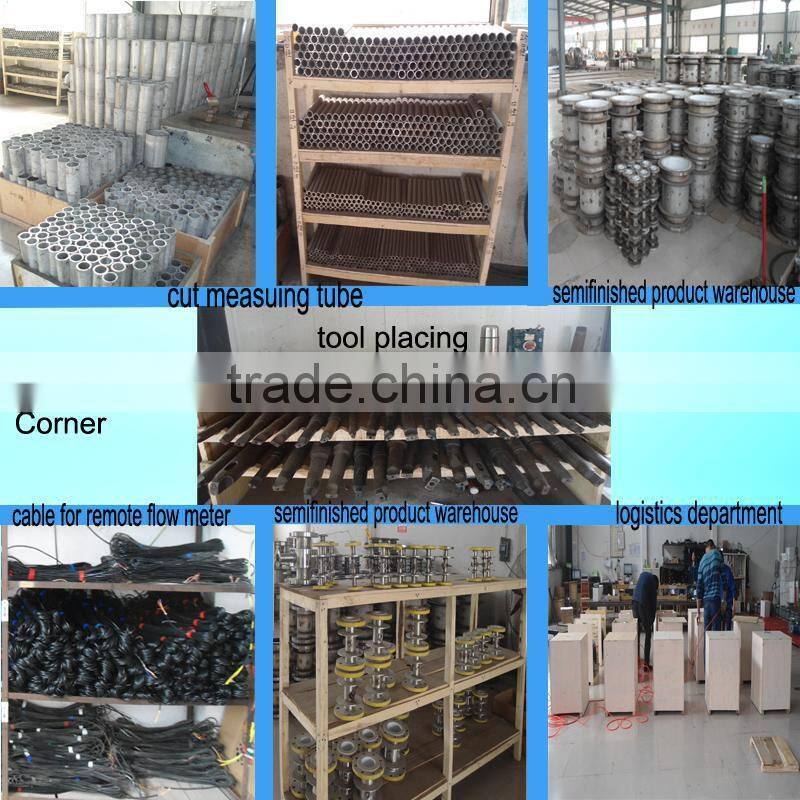

Workshop corner
electromagnetic flow meter electromagnetic flow meter electromagnetic flow meter electromagnetic flow meter electromagnetic flow meter electromagnetic flow meter
Part of our certificate
digital flow meter digital flow meter digital flow meter digital flow meter digital flow meter digital flow meter digital flow meter digital flow meter
Our team activities
digital flow meter digital flow meter digital flow meter digital flow meter digital flow meter digital flow meter digital flow meter digital flow meter
We have been in this business for more than ten years.
Our customer satisfaction is 99. 5%.
We are located in Kaifeng, the most ancient and biggest base of flow instrument in China, which means we have full access to the most advanced technologies in this field.
We are awarded ISO9001:2008.
Our belief is "Accuracy and Attitude, Access to Customer".
Our monthly output of electromagnetic flow meters is 3000 sets.
We are able to provide electromagnetic flow meters with international standards.
Our goal is to make world wide brand.
Our services
Payment

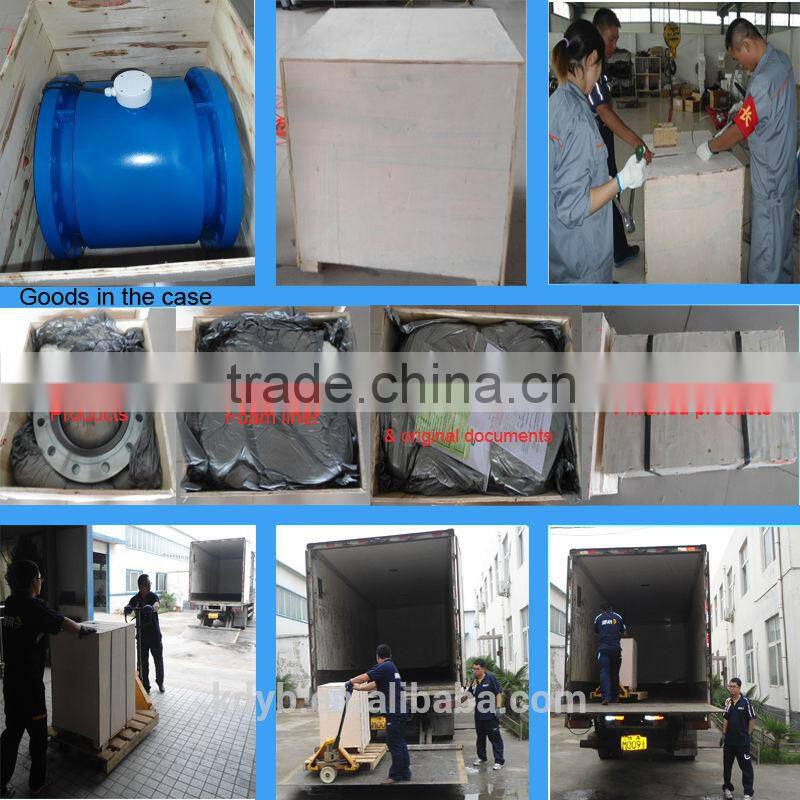

Packaging and shipping
Packaging
