Flowmeter/Electromagnetic Flowmeter

Specifications

EFM flow Meter/ Flow meter/ EFM Electromagnetic Flowmeter

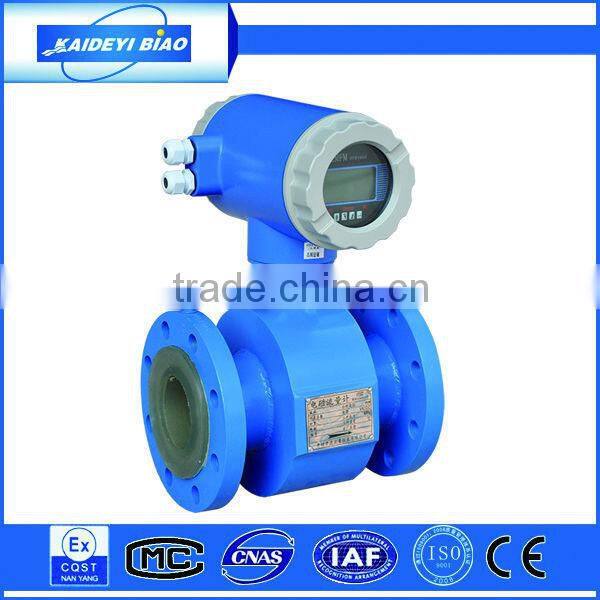

Electromagnetic flowmeter

Packing Detail: Carton /Wooden Case
Delivery Details: As per Order quantity

Specification:
Electromagnetic Flow Meter
Highly Interlligentized
Multi-electrode Structure
Serial Communication Bus

1. Introduction:
    KDLD electromagnetic flowmeter ,It is mainly used to measure the volume flow of conducting liquid and slurry in closed pipeline.

Electromagnetic Flow Meter

Using Area:

1.Oil field,

2.Chemical line

3.Textile line,

4.Foodstuff line

5.Metallurgy,

6.Pharmaceutical line,

7.Paper making line

8.Other industries as well as environmental protection,

9.Municipal administration,

10.Water conservancy and other fields.

Characteristic:

1.High-resolution backlit 2*16 LCD display,e Convenient to used,and easy to operated

2.Used for measuring the volume flow of Conductive liquids and slurries ,the pipe no additional loss of pressure. low requirement on straight pipe

3.Simple Structure, Simple Installation and convenient for Operation, High precision measurement and reliable.

4.Measurement resulted do not affacted by the pressure of measured liquid,temperature,density, viscosity or other physical parameters.

5. With two-way flow measurement function,could display the Positive and negative to flow.

6.And have two-way current, frequency output, Can recorded, preserved sepeately.

7.With upper and lower limit setting and alarm function, could Automatically alarm and display,can distinguish whether the pipe is empty.

8.With 4-20 mA output signal and Flow pulse signal output.

9. With Optional signal from RS485 RS232 HART Communication Output Interface

10.It could Directly with the host computer or a secondary instrument connected with computer to meet Remote DATA Display.

11.With EEPROM data storage technology, with historical data Storage and Query functions.

12.Nominal Diameter from DN15-DN3000, Liner and electrode of sensor have wide choice.
