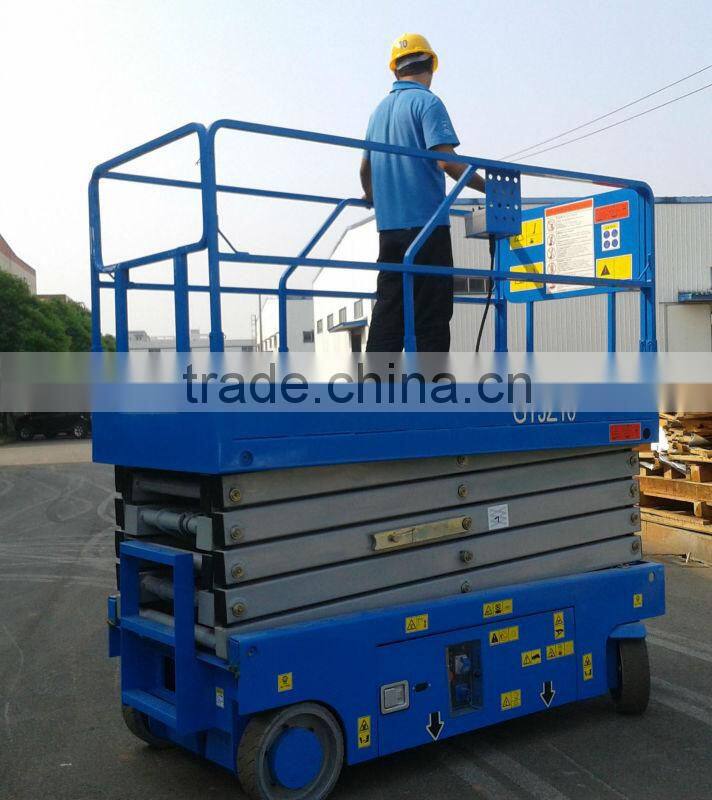

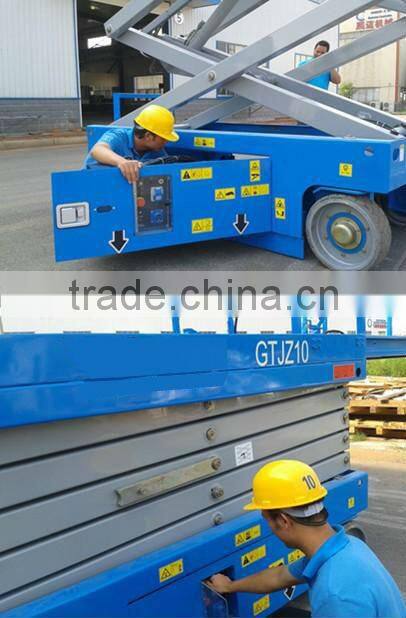

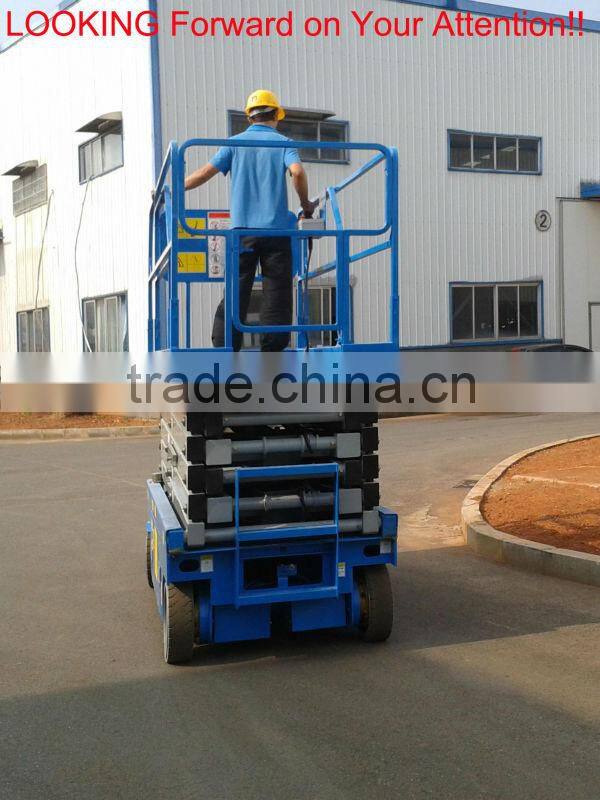

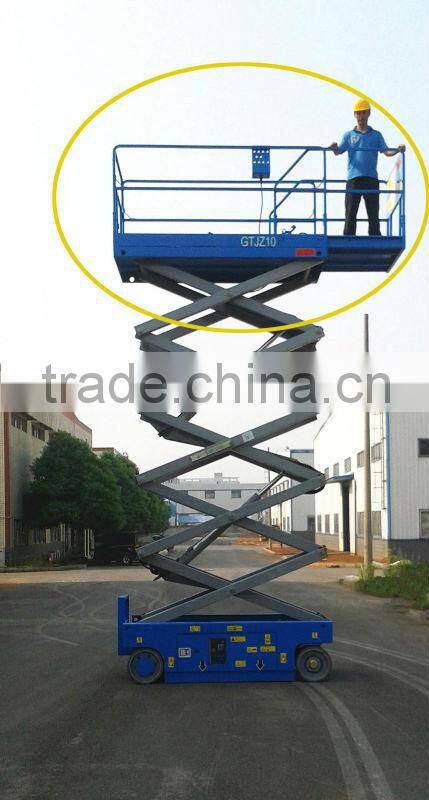

GTJZ12A Self-propelled Scissor Aerial Work Platform-electrical
Negotiable
/ Set
1 Set(Min. Order)
- DALIAN
- T/T Money Gram
You May Like
-
GTJZ10A Self-propelled Scissor Aerial Work Platform-electrical
-
GTJZ10 Self-propelled Scissor Aerial Work Platform-electrical
-
GTJZ08 Self-propelled Scissor Aerial Work Platform-electrical
-
GTJZ06 Self-propelled Scissor Aerial Work Platform-electrical
-
GTJZ05 Self-propelled Scissor Aerial Work Platform-electrical
-
GTBZ42 Self-Propelled Telescopic Boom
Product Details
| Place of Origin | Hunan, China | Brand Name | RUNSHARE | |
| Model Number | GTJZ12A |
Product Description
Specifications
DC Motor: HydraPower from KoreaHydraulic pump: HydraPower from Korea
Electromagnetism valve: oil-control (SANT) from Italy
Electrical scissor platform’s configuration
DC Motor: HydraPower from Korea
Hydraulic pump: HydraPower from Korea
Electromagnetism valve: oil-control (SANT) from Italy
Brake: White from USA
RE Motor: White from USA
Hydraulics Release pump: White from USA
Battery: Trojan from USA
Controller: IFM from Germany
Pressure sensor: Meas from USA
Coulometer: Curtis from USA
| Model No. | GTJZ12A | |
| Max. Platform Height | mm | 12100 |
| Max. work Height | 13800 | |
| Min. Platform Height | 1780 | |
| Ground Clearance | 200 | |
| Lift Rated Capacity | kg | 380 |
| Platform Size | mm | 2920×1650 |
| Platform Extend Length | 1100 | |
| Max. Drive Speed(Platform Stowed) | km/h | 5.5 |
| Max. Drive Speed(Platform Elevated) | 0.8 | |
| Min. Turning Radius | mm | 4500 |
| Max. Travel Grade | % | 30 |
| power Motor | v/kw | 48/4 |
| Battery | v/Ah | 8×6/420 |
| Charger | v/A | 48/50 |
| Overall Length | mm | 3100 |
| Overall Width | 1750 | |
| Overall Height | 2880 | |
| Overall Net Weight | kg | 4800 |
