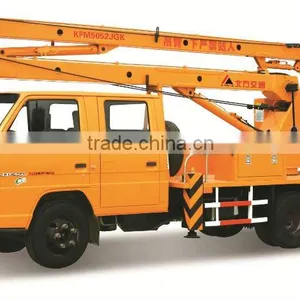

Help CenterGKZ-14J 14M Articulated Boom (JMC) Aerial Working Platform
Related Products
-
GKZ-20E 20M Articulated Boom (DONGFONG) Aerial Working PlatformNegotiableMOQ: 1 Set -
GTBZ38Z [Straight Arm Type] TELESCOPIC BOOMNegotiableMOQ: 1 Set
-
GKS-28E 28M Telescopic Boom (DONGFONG) Aerial Working PlatformNegotiableMOQ: 1 Set
-
GTBZ32 Self-propelled Telescopic Boom LiftNegotiableMOQ: 1 Set
-
GTBZ29 Self-propelled Telescopic Boom LiftNegotiableMOQ: 1 Set
Specifications
Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway.....
A.Working Condition
1.Altitude: 0-1000m
2.Temperature: -25°C--+45°C, environmental relative humidity ≤90%
3.Allowed working condition: solid, stable land, the vehicle should be horizontal
4.Wind force: ≤6 degree (wind speed ≤12.5m/s )
B.Working Range
KFM5052JGK Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on..
C.Main Parameters
Bulletin No. |
KFM5052JGK |
|
Type |
GKZ-14J |
|
External dimensions(mm) |
6320×2000×2920 |
|
Structure type |
Three-section articulated boom |
|
Working Cage |
Internal size(mm) |
1100×600×1100 |
Rated loading(kg) |
200(or 2 persons) |
|
Max. Working height(mm) |
14000 |
|
Max. Height from ground(mm) |
12300 |
|
Max. Working radius(mm) |
7050 |
|
Working radius when doing the highest height(mm) |
2990 |
|
Working Boom |
Max. Raising angle of lower boom(º) |
70 |
Max. Raising angle of upper boom(º) |
70 |
|
Max. Raising angle of jib(º) |
90 |
|
Boom rack rotation angle(º) |
360 |
|
Outrigger |
Vertical span(mm) |
2950 |
Horizontal span(mm) |
2750 |
|
Travelling of vertical outrigger(mm) |
450 |
|
Adjustment |
Single adjustable |
|
Lifting |
Rated lifting weight(kg) |
995 |
Rated lifting height(mm) |
7700 |
|
D.Chassis Introduction
|
Traveling Performance Parameters |
Chassis model |
JMC JX1060TSG23 |
Persons |
2+3 |
|
Axle base (mm) |
3360 |
|
Wheel base (front/rear)(mm) |
1385/1425 |
|
Driving mode |
4×2 |
|
Front suspension(mm) |
1015 |
|
Rear suspension(mm) |
1815 |
|
Approaching angle(º) |
27 |
|
Departure angle(º) |
11 |
|
Max. Grade ability(%) |
28 |
|
Min. Turning diameter(mm) |
13600 |
|
Min. Ground clearance(mm) |
190 |
|
Engine |
Engine model |
JX493ZLQ3 |
Rated power(kw/r/min) |
85/3600 |
|
Torque(N,m/r/min) |
285/2000 |
|
Max. Speed(km/h) |
70 |
|
Gas consumption per one hundred miles(diesel oil) (L) |
12 |
|
Specification of the tire |
7.00R16LT |
|
The whole weight(kg) |
4880 |
|
Max. Weight with whole loading(kg) |
5205 |
|
E.Equipments Introduction
1.JMC JX1060TSG23 2.Working boom assembly 3.Rotation structure assembly 4.Body transformation assembly 5.Extending outrigger 6. Spare type & tool box 7.Hydraulic system assembly 8.Electric system assembly 9. Safety control system 10. Working cage assembly 11.Safety belt 12.Safety lift & Moving guard bar 13. Balance slid rod device 14.Maintenance bag & tools 15. Safety warning & Light 16. Air- conditioning 17. Lifting device
F.Vehicle Information
1. Manual Instruction 2. Operation manual of chassis 3. Guarantee of chassis 4.Certification of quality of the vehicle 5.Maintenance Manual (Operation instruction) 6. Operating safety certification
Send Inquiry to This Supplier
