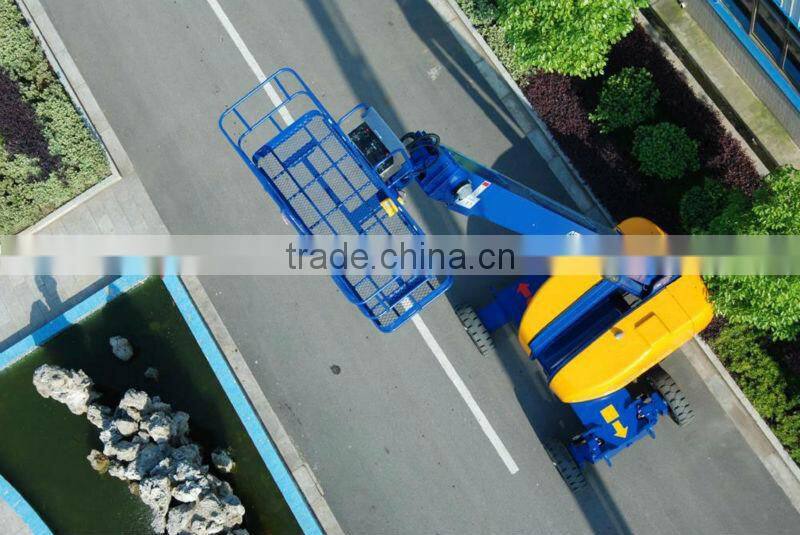

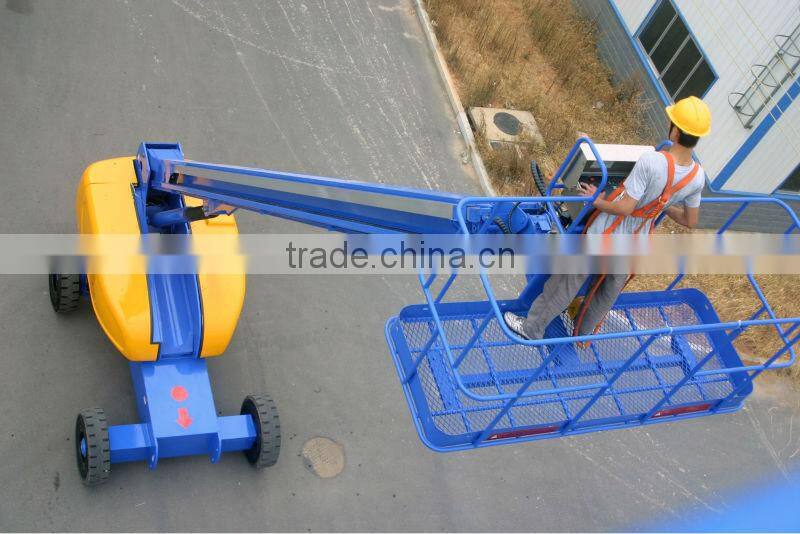

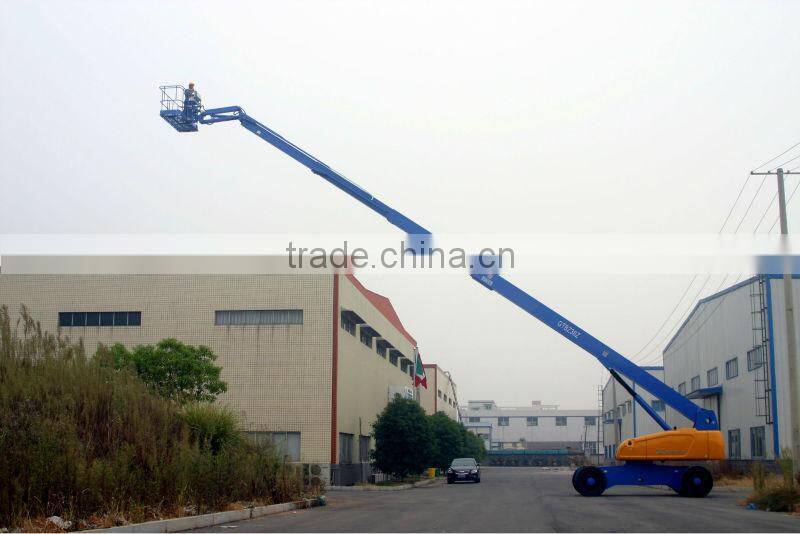

GTBZ27 Self-Propelled Telescopic Boom

Name: GTBZ27 Self-Propelled Telescopic Boom
Brand: RUNSHARE
SKU: 110839119
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

RUNSHARE

Model Number:

GTBZ27

Jiangsu Lionkin Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name RUNSHARE

Model Number GTBZ27

Specifications

Automatic-leveling platform,Hydraulic platform rotation, 360 continuous turntable rotation,Fully proportional joystick controls

MODEL		GTBZ27
MEASUREMENTS		Metric	US
Working height maximum *		28.4m	93ft
Platform height maximum		26.7m	88ft
Horizontal reach maximum **		23.4m	77ft
Below ground reach		3.73m	12ft
A	Platform length-8ft model	0.91m	3ft
	Platform length-6ft model	0.76m	2ft
B	Platform width-8ft model	2.44m	8ft
	Platform width -6ft model	1.83m	6ft
C	Height-stowed	2.8m	9ft
D	Length-stowed	12.46m	37ft
E	Width	2.49m	8ft
F	Wheelbase	3.0m	8ft
G	Ground clearance-center	0.43m	1ft5in
PRODUCTIVITY
Lift capacity (restricted)		480kg		1056lbs
Lift capacity (non-restricted)		200kg		441lbs
Platform rotation		160°
Jib rotation		—
Turntable Swing		360°continuous
Turntable tailswing		1.32m		4ft4in
Travel speed -stowed		5.3km/h		3.3mph
Travel speed -raised or extended		1.1km/h		0.68mph
Grade ability -stowed (2WD)		30%
Grade ability -stowed (4WD)		45%
Turning radius - inside		3.59m		11ft9in
Turning radius –outside		6.25m		20ft
Turning radius - axle extended outside
Controls		24V DC Proportional
Solid tires		12.00-20/8.5
POWER
Power source		Lovol 1004-4 78 hp (58kw)
		Perkins 400 76hp (56kw)
		Cummins B3.3 75HP (56kw)
Auxiliary power unit		24V DC
Hydraulic tank capacity		190L
Fuel tank capacity		150L
WEIGHT *******
2WD		16440kg	36168lbs
4WD		16520kg	36344lbs
STANDARDS COMPLIANCE EN280,JG/T5101,Q/ADZV001-2008
