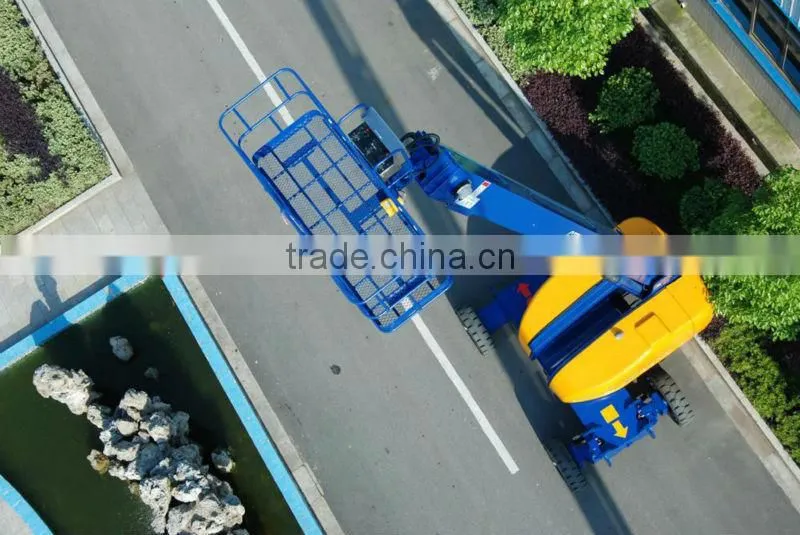

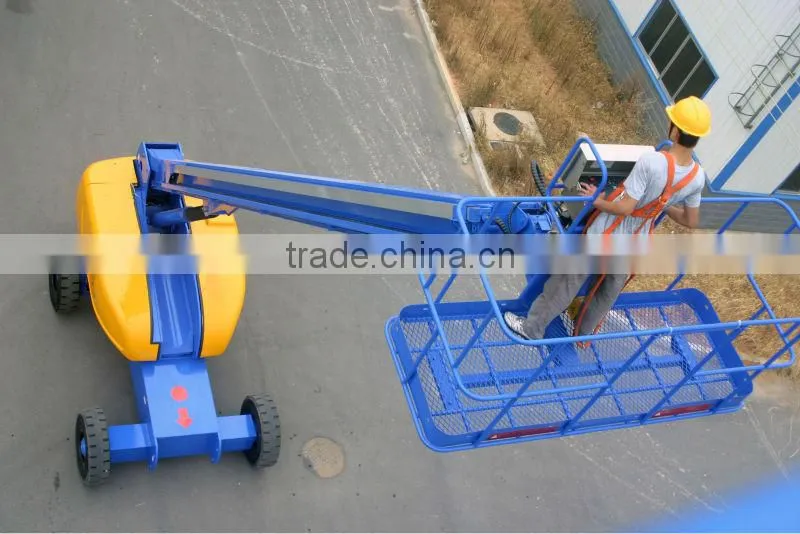

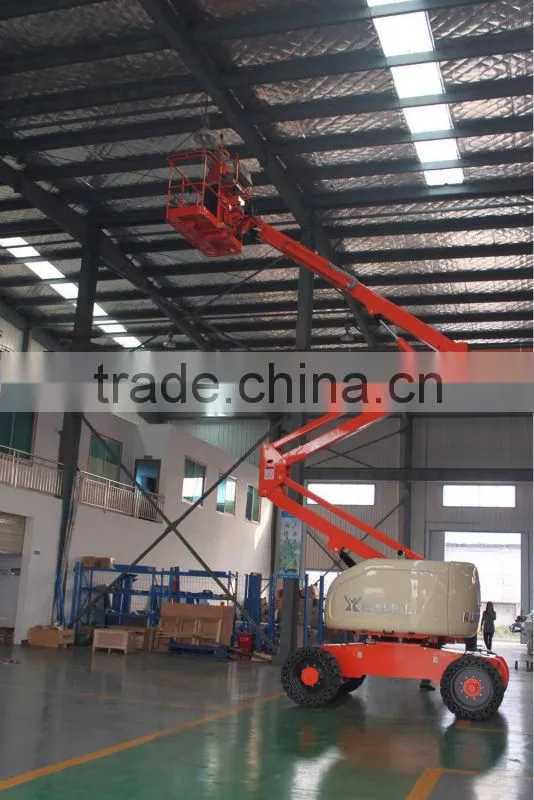

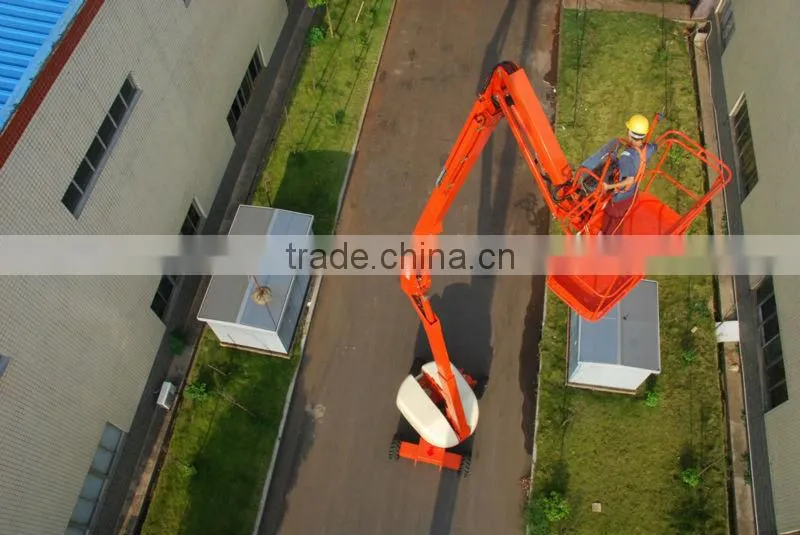

Help CenterGTZZ18 ARTICULATING BOOM
Related Products
-
XZJ5291JQJ16/XZJ5292JQJ16 Bridge Inspecting PlatformNegotiableMOQ: 1 Set -
PY5050JGKZ16 Aerial Working PlatformNegotiableMOQ: 1 Set
-
PY5110JGK25 Aerial Working PlatformNegotiableMOQ: 1 Set
-
XZJ5291JQJ18/XZJ5292JQJ18 Bridge Inspecting PlatformNegotiableMOQ: 1 Set
-
XZJ5082JGK Aerial Working PlatformNegotiableMOQ: 1 Set
Specifications
Automatic-leveling platform,Hydraulic platform rotation, 360 continuous turntable rotation,Fully proportional joystick controls
Working height maximum * |
19.7m |
64ft7in |
|||
Platform height maximum |
18 m |
50ft5in |
|||
Horizontal reach maximum ** |
12.17m |
39ft7in |
|||
A |
Platform length-8ft model |
0.76m |
2ft6in |
||
B |
Platform width-8ft model |
1.83m |
6ft |
||
C |
Height-stowed |
2.38m |
7ft9in |
||
D |
Length-stowed |
8.05m |
26ft5in |
||
E |
Width |
2.44m |
8ft |
||
F |
Wheelbase |
2.60m |
8ft6in |
||
G |
Ground clearance-center |
0.43m |
1ft5in |
||
PRODUCTIVITY | |||||
Lift capacity (restricted) |
230kg |
507lb |
|||
Platform rotation |
180° |
||||
0 | |||||
Turntable Swing |
360°continuousss |
||||
355°non-continuou | |||||
Turntable tailswing |
0 |
||||
Drive speed -stowed |
6.3km/h |
||||
Gradeability -stowed (2WD) |
30% |
||||
45% | |||||
Gradeability -stowed (4WD) |
45% |
||||
Turning radius - inside |
3 m |
9ft10in |
|||
Turning radius –outside |
5.2m |
17ft |
|||
Turning radius - axle extendeded outside | |||||
Controls |
12V DC Proportional |
||||
12V DC Proportional | |||||
POWER | |||||
Power source |
Cummins B3.3-C60(45kw) |
||||
Auxiliary power unit |
12V DC |
||||
12V DC | |||||
Hydraulic tank capacity |
140L |
||||
Fuel tank capacity |
100L |
||||
WEIGHT *** | |||||
2WD |
8200kg |
18077lbs |
|||
STANDARDS COMPLIANCE EN280,JG/T5101,Q/ADZV001-2008 | |||||
