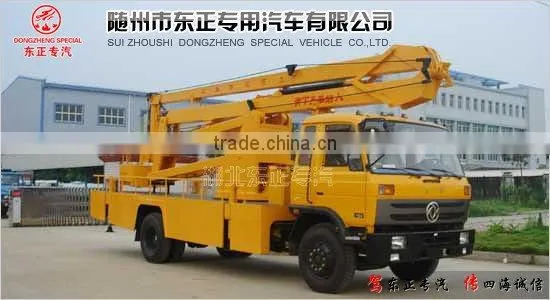

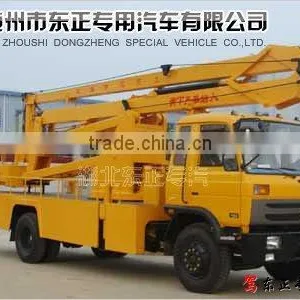

Help CenterDongfeng 145 Aerial Working Truck
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Special Purpose Vehicle
Fuel:
Diesel
Gear Box:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GKZ-14J 14M Articulated Boom (JMC) Aerial Working PlatformNegotiableMOQ: 1 Set -
GKZ-20E 20M Articulated Boom (DONGFONG) Aerial Working PlatformNegotiableMOQ: 1 Set
-
GTBZ38Z [Straight Arm Type] TELESCOPIC BOOMNegotiableMOQ: 1 Set
-
GKS-28E 28M Telescopic Boom (DONGFONG) Aerial Working PlatformNegotiableMOQ: 1 Set
-
GTBZ32 Self-propelled Telescopic Boom LiftNegotiableMOQ: 1 Set
Type
Other, Special Purpose Vehicle
Fuel
Diesel
Gear Box
Automatic
Made In
China
Steering
Left
Drive
FWD
Brand Name
DONGFENG,JIANGLIN, Steyr ..
Place of Origin
Hubei, China
Model
Special Purpose Vehicle
Specifications
This aerial working truck is from china , we have sold them to many countries|
Dongfeng 145 aerial working truck Technical Parameters
| |||
| Product | Dongfeng 145 aerial working truck | Overall dimension | 9200 ×2470 ×3610(mm) |
| Chassis model | EQ1110GLJ3 | Compartment dimension | (mm) |
| Gross weight | 9900 (kg) | Approach angle/Departure angle | 33/18 (°) |
| Rated payload | (kg) | Front/rear suspension | 1250/2050(mm) |
| Kerb weight | 9705 (kg) | Max speed | 90(km/h) |
| Engine | YC6J180-30/ISDe185 30/ISDe180 30/ISDe160 30 | ||
| Displacement | 6500/6700/4500/4500 (ml) | Power | 132/136/132/118 (kw) |
| Manufacturer | Guangxi Yuchai Machine Co., Ltd./Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd. | ||
| Emission standard | GB3847-2005,GB17691-2005 Euro 3 | ||
| Axle nos | 2 | Front tread | 1900 (mm) |
| Wheelbase | 4700,4500 (mm) | Rear tread | 1800 (mm) |
| Tyre nos |
6 | Tyre specification | 9.00-20 |
| Fuel type | Diesel | Leaf spring nos | 8/11+8 |
| Axle load | 3970/5930 | Passenger nos | 3 |
| Remarks | Crane extension length:1200mm | ||
