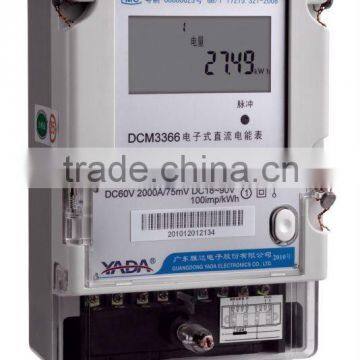

DC Energy Meter

Name: DC Energy Meter
Brand: YADA
SKU: 110255155
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YADA

Model Number:

DCM3366

Guangdong Yada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YADA

Model Number DCM3366

Display Type Digital Only

Phase Single Phase

Accuracy Class 1.0

Operating Temperature -25~+55℃

Dimensions 112mm x 160mm x 58mm

Specifications

1.RS485/232 port
2.LCD display
3.Modbus-RTU & DL/T645-1997 double protocols
4.DC energy measurement

Electrical Characteristics
Measuring Characteristics		Single-loop DC power computation
Measurement		current & voltage
Measurement		power
Accuracy	DC energy	1.0
Data Refreshing rate		1s
Input voltage characteristics	Spec.	DC0~60V,DC0~600V(customized)
	Measuring voltage	Measuring:0.2Umax ~1.2Umax
	Input power consumption	≤1W
Input current characteristics	Spec.	5(40)A /10(60)A /20(80)A Configured a shunt if the current is over 80A
	Strat-up current	0.004Ib
	Input power consumption	≤1W
Working power supply	Auxiliary power supply	DC18~90V
Working power supply	Power consumption	≤2W
Pulse output		Optical isolation(external power supply is needed)
Communication
Comms. interface		RS485
Comms. protocol		DL/T645-1997&Modbus double protocols
Data Format		E-8-1
Baud rate		1200,2400,4800,9600,19200, default 9600
Mechanical properties
Dimensions		H x W x T 160mm×112mm×58mm
Installation		M4 screws vertical mounting
