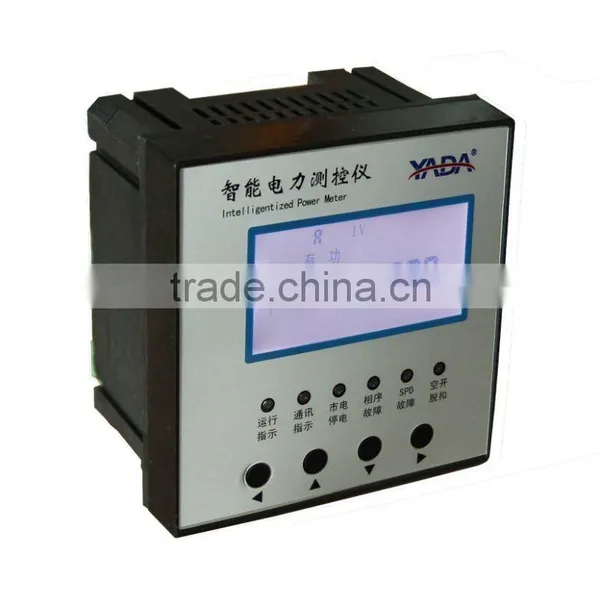

Multi-channels Power Meter

Name: Multi-channels Power Meter
Brand: YADA
SKU: 110255187
Availability: InStock

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YADA

Model Number:

YD2080 seires

Guangdong Yada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YADA

Model Number YD2080 seires

Display Type Analog and Digital

Measuring Range 0~5A

Accuracy Class 0.5 or 1.0

Supply Voltage AC85~265V/DC85~330V

Operating Temperature -10°C~50°C

Dimensions 96mm*96 mm*61mm

Specifications

1.Measure 3U,12I etc.
2.LCD display
3.RS485 port,Modbus protocol
4.DO+DI

Model	Descriptions for Functions	Note
YD2080	Three-phase voltage, frequency in one circuit, each phase current, power, power factor, energy in three circuits, with 3DI+1DO.
YD2080-2	Three-phase voltage, frequency in one circuit, each phase current, power, power factor, energy in two circuits, with 3DI+1DO.
YD2080-4	hree-phase voltage, frequency in one circuit, each phase current, power, power factor, energy in four circuits, with 3DI+1DO.
YD2080-K	Three-phase voltage, frequency in one circuit, each phase current, power, power factor, energy in three circuits, with 3DI+1DO.	With split-type transformer
YD2080-2K	Three-phase voltage, frequency in one circuit, each phase current, power, power factor, energy in two circuits, with 3DI+1DO.	With split-type transformer
YD2080-4K	Three-phase voltage, frequency in one circuit, each phase current, power, power factor, energy in four circuits, with 3DI+1DO.	With split-type transformer

Electrical Characteristics
Measuring Accuracy	Type of transformer	close-type	split-type
	Curent	0.5%	1%
	Voltage	0.5%	0.5%
	Power, power factor	1%	2%
	Frequency	45~60Hz	45~60Hz
	Active energy	1%	2%
Input voltage characteristics	Range	Input: 0~600V/AC (direct L-L)
		Measuring: 30~600V/AC(direct L-L) 20~400V/AC(direct L-N)
	Input power consumption	≤1VA
	Measured range of Frequency	45~60Hz
Input current characterstics Matched 5A/10mA transformer	Range	Input: 0~5A
		Measuring: 10mA~6A
	Max.overload	Continuous current 10A
	Input power consumption	≤1VA
Input current characterstics Matched (Ib/Io)50A/10mA~400A/80mA transformer	Range	Input: 0~Ib
		Measuring: 0.004Ib~1.2Ib
	Max.overload	Continuous current 2Ib
	Input power consumption	≤1VA
Auxiliary power supply	DC power supply	DC18~90V
	AC / DC power supply	AC85~265V/DC85~330V (optional)
	power consumption	≤5VA or ≤2W
