Multi-channels Power Meter

Multi-channels Power Meter thumbnail-1
Multi-channels Power Meter thumbnail-2
Multi-channels Power Meter photo-1

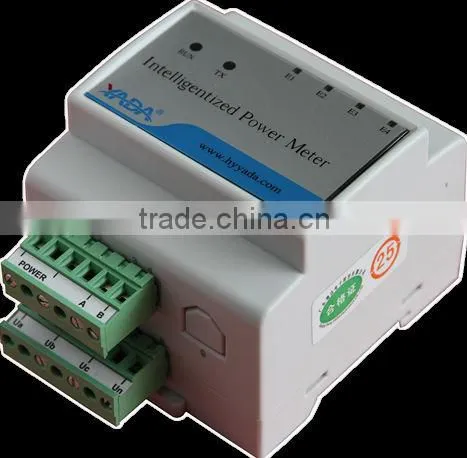

Multi-channels Power Meter photo-2
US$ 180 - 250 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YADA
Model Number:
YD2060
Contact Supplier Request Quote Chat Now
Guangdong Yada Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name YADA
Model Number YD2060
Display Type Digital Only
Measuring Range 0~5A
Accuracy Class 0.5
Supply Voltage AC 85~265 V or DC 18~90 V
Operating Temperature -10℃~50℃
Dimensions 72 mm*76.3 mm*62.8mm

Specifications

1.Din rail mounting
2.Modbus-RTU protocol,RS485+channels power meter
3.Harmonics measurement
4.+kW,-kW,+kVar,-kVAR
5.CE


Product Description

Frequency

Voltage(ph-ph)Ø & average voltage(ph-ph)

A,B,C phase voltage, average voltage and phase angle

A,B,C phase current(1-4 ways)

Total phase, A,B,C phase active power(1-4ways)

Total phase, A,B,C phase reactive power(1-4ways)

Total phase, A,B,C phase apparent power(1-4 ways)

Total phase, A,B,C phase power factor(1-4ways)

Computation

Total phase, A,B,C phase active energy(1-4 ways)

Data acquisition

Adopt RS485 digital communicate port to collect all the data, MODBUS protocol support.

Provide the demo software

Monitoring

Four LCD instructive lights to monitor the working procedure, run/ energy pulse/communication sending/communication collection

Programming

Connection mode

3P4W/3P4W (unbal)/ 3P3W/3P3W (unbal)/1P3W/1P2W.

Communication

Provide RS485 port, 32(128)networking, Modbus-RTU protocol

Working power supply

AC 85~265 V or DC 18~90 V

 Multi-channels power meter




Packaging & Shipping

      Multi-channels power meter


Our Services
Sample order is acceptable,one year warranty.
