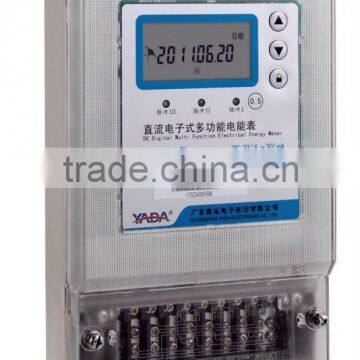

DC Energy Meter

Name: DC Energy Meter
Brand: YADA
SKU: 110255161
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YADA

Model Number:

DCM3366-3

Guangdong Yada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YADA

Model Number DCM3366-3

Display Type Digital Only

Phase Single Phase

Accuracy Class 1.0

Operating Temperature -25~+55℃

Dimensions 230mm x 145mm x 68mm

Specifications

1.RS485/232 port
2.LCD display
3.Modbus-RTU & DL/T645-1997 double protocols
4.Three-loop DC energy measurement

DCM3366-3 functions & features

Electrical Characteristics
Measuring Characteristics		Three-loop DC power computation
Mesurement		Each way current & voltage
		Each way power
Accuracy	DC energy	1.0
Data Refreshing rate		1s
3-way input volltage characteristics	Spec.	DC20~90V ,DC100~330V(customized)
	Measuring voltage	Measuring: 0.2Umax ~1.2Umax
	Input consumption	≤1W
3-way input current characteristics	Spec.	5(40)A /10(60)A /20(80)A Configured a shunt or Hall sensor if the current is over 80A
	Strat-up current	0.004Ib
	Input consumption	≤1W
Working power supply	Self powered supply	DC18~90V
	Power consumption	≤3W
Pulse output		No
Communication
Comms. protocol		Modbus & DL/T645-1997double protocol
Comms. port		RS485 or RS232(RS485 and RS232 use the same power supply)
Data Format		E-8-1
Baud rate		1200,2400,4800,9600,19200,(Default)9600
Mechanical properties Allowable Tolerance: ±0.5mm
Dimensions		H x W x T 230mm×145mm×68mm
Installation		M4 screws vertical mounting
