Home > Instruments & Meters > Meter for Electricity > Multimeter > VC97 Tester Thermometer Resistance AC DC Ohm Hz C 4000Count Voltmeter Multimeter

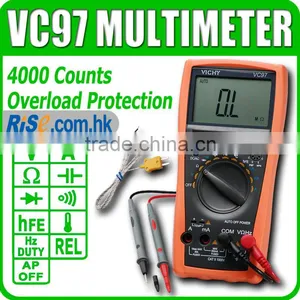

VC97 Tester Thermometer Resistance AC DC Ohm Hz C 4000Count Voltmeter Multimeter

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Model Number:

MM-109-S

Measuring Current Range:

400 μA - 20 A(DC);400 μA - 10 A(AC)

Contact Supplier Request Quote Chat Now

Rise Enterprise Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Model Number MM-109-S

Measuring Current Range 400 μA - 20 A(DC);400 μA - 10 A(AC)

Measuring Voltage Range 400 mV - 1000 V(DC);400 mV - 750 V(AC)

Measuring Resistance Range 400 Ω ~ 40 MΩ

Measuring Capacitance Range 4 nF ~ 200 uF

Operating Temperature 0 ~ 40 °C (32 ~ 104 °F)

Dimensions 185 (H) x 93 (W) x 35 (D) mm (7.28' x 3.66' x 1.38' inch)

Specifications

VC97 Auto-range Multimeter & Thermometer with 4000 Counts

Brief Description

This Professional Auto-range Digital Multimeter is a high performance and accuracy instrument with large LCD display to measure DC and AC voltage, DC and AC current, Resistance, Capacitance, Frequency, Temperature, Duty circle, Transistor, Diode, Triode and Continuity Test.

This multimeter has features and functions including unit signal indication, data hold (HOLD), relatively measuring (REL), AUTO/MANUAL range, auto power off and warning function. It is ideal for use on production lines or lab, R & D, maintenance and repairing work.

Features

Dual-slop DC/AC converter CMOS technology for auto-zero, polarity selection and over-range indication.
Full overload protection
New type holster, streamline design
3 ¾ digit Large LCD Display
Metallic screen board with stronger antimagnetic and anti-interferential function.
Full function protection, anti-high voltage circuit design.
Low battery display indication
Unit symbol display
Relative Value, Frequency/Duty cycle measuring and data hold

Specifications

Display: 3 ¾ digit Large LCD with a max readings of 3999
Polarity: Automatic Negative Polarity Indication
Measuring method: Dual-slope integrating A/D Converter System featuring CMOS technology for auto-zero, polarity selection, and over-range indication.
Sampling Rate: approx. 3 Times / Second
Over range indication: Only the MSD "OL" display
Low battery display auto turn off (after turn on 15 minutes)
Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
Operating Humidity: below 80% RH
Storage Temperature: -10 ~ 50 °C (14 ~ 122 °F)
Storage Humidity: below 80% RH
Range Selection Method: Automatic and Manual
Safety Standards: CE, IEC1010, double insulation II
Power: 2 x 1.5 V AAA batteries (not included)
Dimensions: 185 (H) x 93 (W) x 35 (D) mm (7.28' x 3.66' x 1.38' inch)
Weight: approx. 345g (12.2 oz)
