Home > Instruments & Meters > Meter for Electricity > Multimeter > VC99 Tester Thermometer Resistance AC DC Ohm Hz C 6000 Count Voltmeter Multimeter

VC99 Tester Thermometer Resistance AC DC Ohm Hz C 6000 Count Voltmeter Multimeter

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Model Number:

MM-111

Measuring Current Range:

600 μA ~ 20 A(DC);600 μA ~ 60 A(AC)

Contact Supplier Request Quote Chat Now

Rise Enterprise Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Model Number MM-111

Measuring Current Range 600 μA ~ 20 A(DC);600 μA ~ 60 A(AC)

Measuring Voltage Range 600 mV ~ 1000 V(DC);6V - 750 V(AC)

Measuring Resistance Range 600 Ω ~ 60 MΩ

Measuring Capacitance Range 40 nF ~ 2000 μF

Operating Temperature 0 ~ 40 °C (32 ~ 104 °F)

Dimensions 185 (H) x 93 (W) x 35 (D) mm (7.28' x 3.66' x 1.38' inch)

Specifications

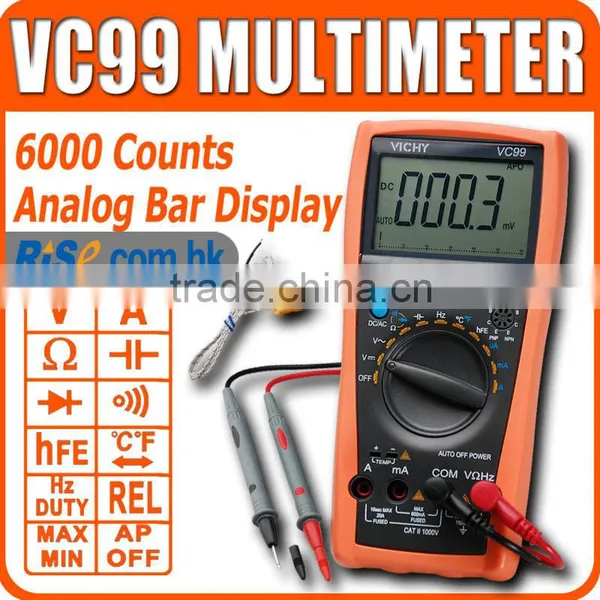

VC99 Auto-range Multimeter & Thermometer with 6000 Counts

Brief Description

This Professional Auto-range Digital Multimeter is a high performance and accuracy instrument with large 3 6/7 digits LCD display and 6000 counts.

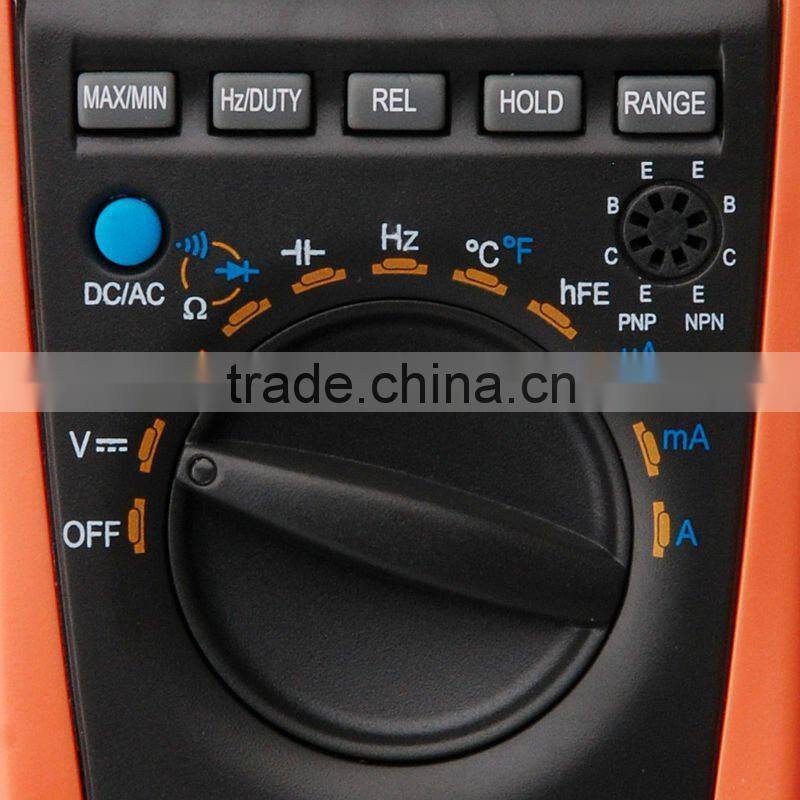

The multimeter has the function of measuring various parameters including DC and AC voltage, DC and AC current, Resistance, Capacitance, Frequency, Temperature (°C / °F), Duty circle, Transistor, Diode and Continuity Performance Test.

The multimeter has features and functions including analog bar display, unit symbol display, data holding, relative value measuring, maximal / minimal value measuring, auto / manual range switching (RANGE), auto power off and warning function. It adopts double integral A / D converter as its core.

This multimeter is ideal for use on production lines or lab, factories, radio-technology, R & D, maintenance and repairing work.

Features

Dual-slop DC/AC converter CMOS technology for auto-zero, polarity selection and over-range indication.
Full overload protection
New type holster, streamline design
6000 counts (3 6/7 digits) Large LCD Display
Full function protection, anti-high voltage circuit design.
Low battery display indication
Unit symbol and 61 selection analog bar display
Selectable between °C and °F
Relative Value, Frequency/Duty cycle measuring and data hold

Specifications

Display: 6000 (3 6/7) digits Large LCD with automatic polarity, unit symbol and 61 selection analog display
Measuring method: double integral A/D Conversion
Sampling Rate: approx. 3 Times / Second
Over range indication: "OL" displayed in the highest digit
Low battery display symbol
Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
Operating Humidity: below 80% RH
Storage Temperature: -10 ~ 40 °C (14 ~ 104 °F)
Storage Humidity: below 80% RH
Safety Standards: CE, IEC1010, double insulation II
Power: 2 x 1.5 V AAA batteries (not included)
Dimensions: 185 (H) x 93 (W) x 35 (D) mm (7.28' x 3.66' x 1.38' inch)
Weight: approx. 345g (12.2 oz)
