Specifications
Professional LC MultimeterBrief Description

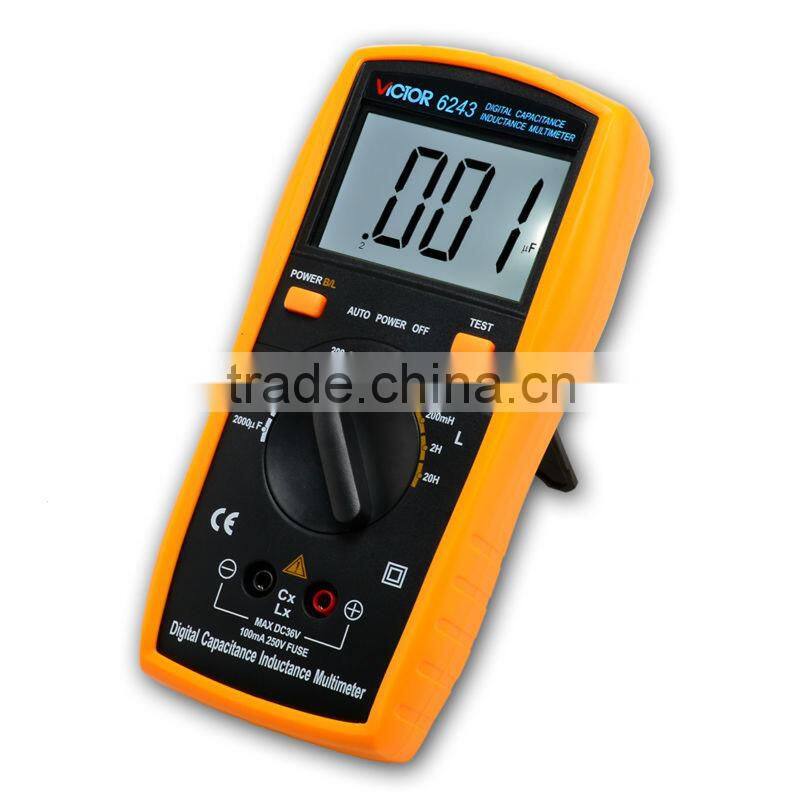

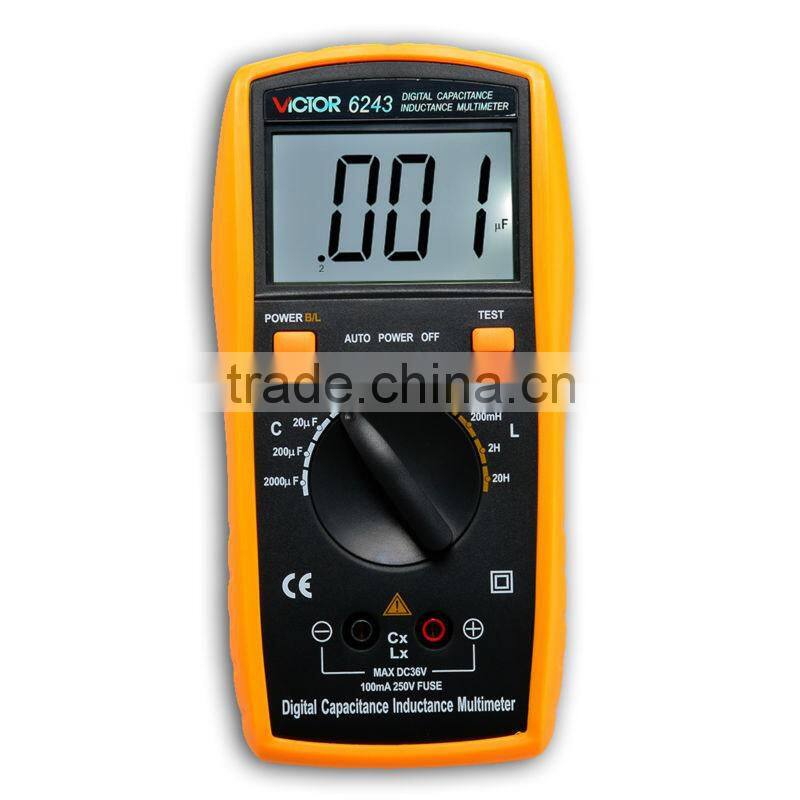

This professional LCR meter (VC6243) is made by VICTOR brand. It is a stable and accurate instrument with Large 3 ½ LCD display. It is widely used on measuring Inductance and Capacitance. It is an ideal tool for lab, factory and family use.
Features

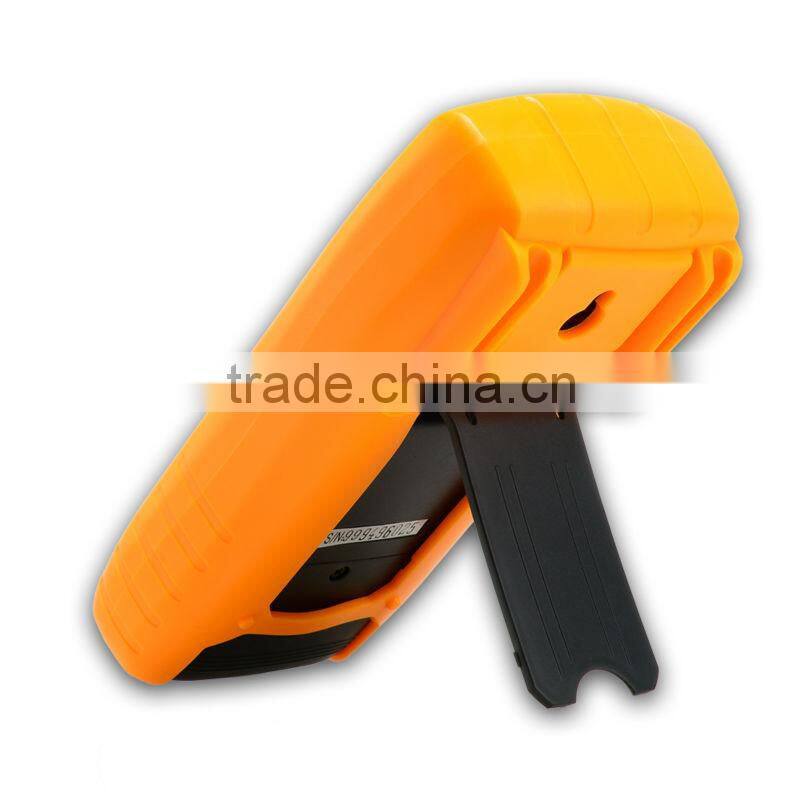

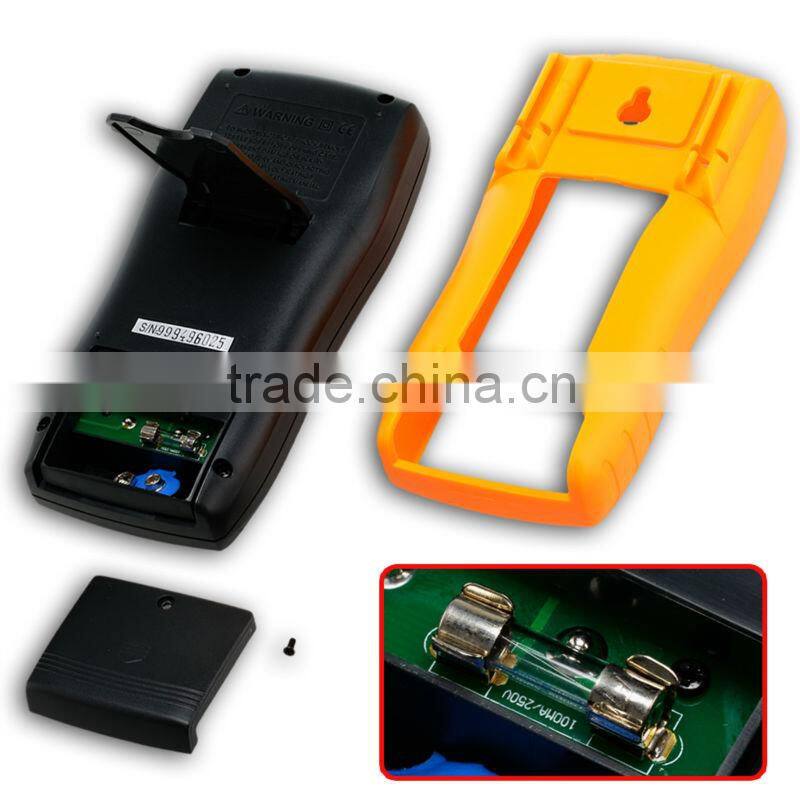

- New type holster, streamline design
- 3 ½ digit Large LCD Display
- Metallic screen board with stronger antimagnetic and anti-interferential function.
- Low battery display indication
- Meet IEC1010 standards
General Specifications
- Display: 3 ½ digit Large LCD with a max readings of 1999.
- Auto Polarity indication
- Measuring method: Dual-slope A/D conversion
- Sampling Rate: approx. 3 Times / Second
- Over range indication: MSD displays "1"
- Operating Temperature: 0 – 40 °C (32 - 104 °F)
- Operating Humidity: below 80% R.H.
- Low battery display auto turn off (after turn on 15 minutes)
- Power: 1 x 9 V PP3 battery (not included)
- Dimensions: 189 (H) x 97 (W) x 35 (D) mm (7.44' x 3.82' x 1.38' inch)
- Weight: approx. 380 g (13.4 oz)
Electrical Specifications:
Function Model
Inductance |
2 mH – 20 H |
Capacitance |
2 nF - 1000 μF |
Alarm |
Yes |
Accuracy is ±(percentage of reading + number of digit) at (23±5) °C, <75% Relative humidity.
2-1. Inductance (L)
Range |
Accuracy |
Resolution |
Measure Frequency |
Though Current |
2 mH |
± (2.0% + 5d) |
1 μH |
1KHz |
150μA |
20 mH |
10 μH |
1KHz |
150μA |
|
200 mH |
100 μH |
1KHz |
150μA |
|
2 H |
± (5.0% + 5d) |
1 mH |
1KHz |
150μA |
20 H |
± (5.0% + 15d) |
10 mH |
100Hz |
15μA |
1 H = 103 mH = 106 μH
2-2. Capacitance (C)
Range |
Accuracy |
Resolution |
Measure Frequency |
Though Voltage |
2 nF |
± (1.0% + 5d) |
1 pF |
1KHz |
150mV |
200 nF |
100 pF |
1KHz |
150mV |
|
2 μF |
± (2.0% + 5d) |
1 nF |
1KHz |
150mV |
20 μF |
10 nF |
100Hz |
150mV |
|
200 μF |
± (5.0% + 5d) |
100 nF |
100Hz |
15mV |
1000 μF |
± (5.0% + 25d) |
1 μF |
100Hz |
1.5mV |
1 F=106 μF=109 nF=1012pF

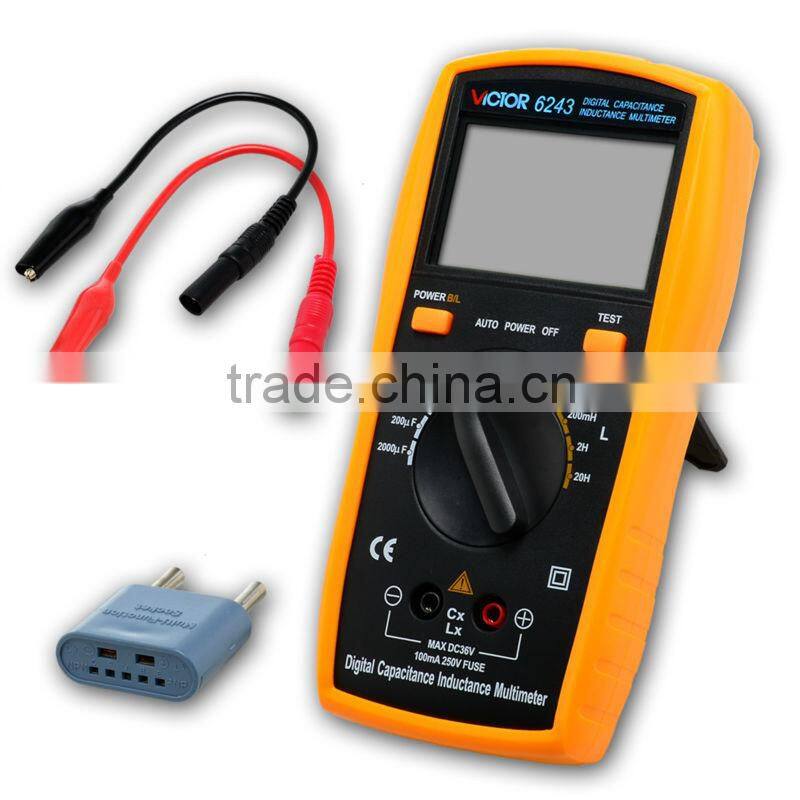

One Set Included
- 1 x Digital LC Multimeter

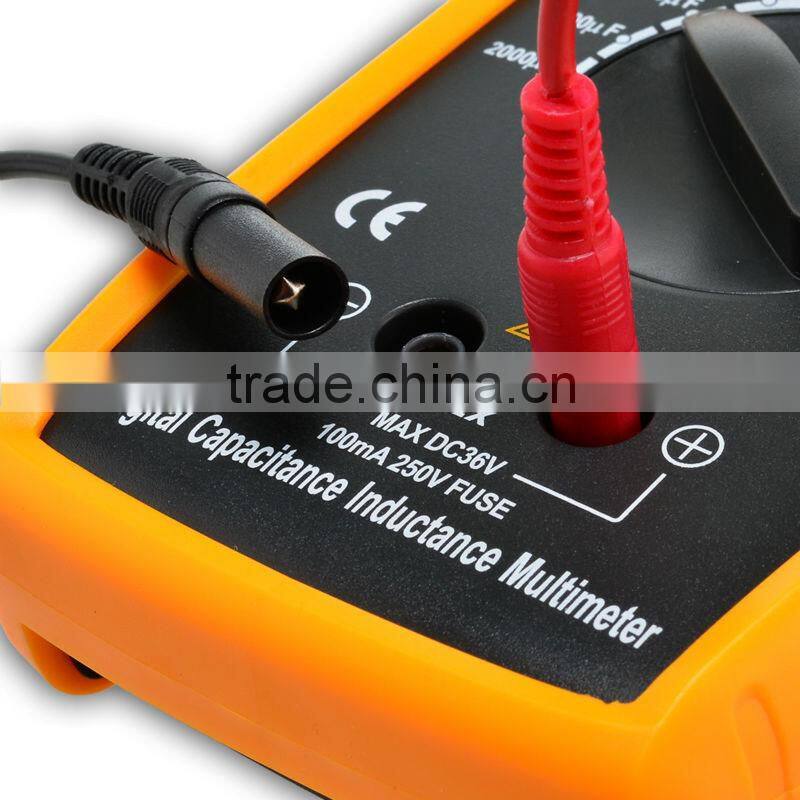

- Test Leads
- 1 x Instruction Manual
- Standard Factory Package
