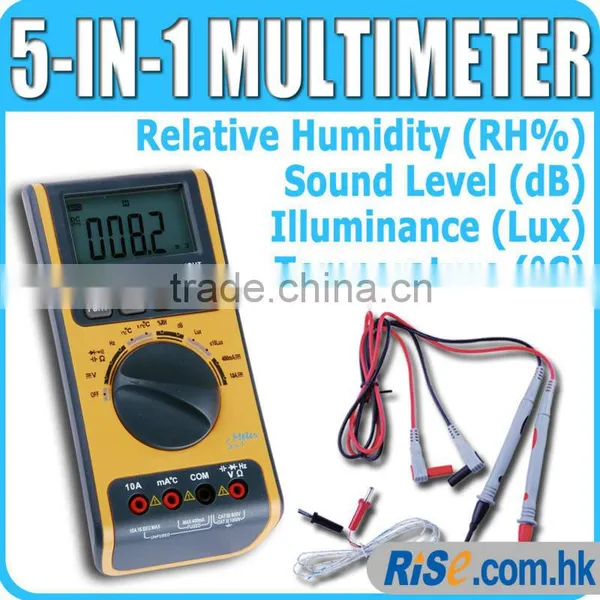

5-in-1 Digital Thermometer Lux Sound Level Meter dB %RH Hygrometer Multimeter

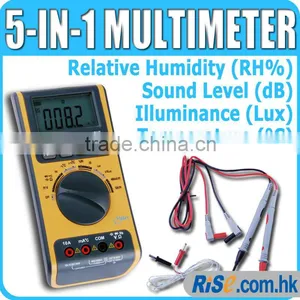

5-in-1 Digital Thermometer Lux Sound Level Meter dB %RH Hygrometer Multimeter thumbnail-1
5-in-1 Digital Thermometer Lux Sound Level Meter dB %RH Hygrometer Multimeter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
MM-103
Measuring Current Range:
40mA ~ 10A
Contact Supplier Request Quote Chat Now
Rise Enterprise Company
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number MM-103
Measuring Current Range 40mA ~ 10A
Measuring Voltage Range 400mV ~ 600V(DC);4V ~ 600V(AC)
Measuring Resistance Range 400Ω ~ 40 MΩ
Measuring Capacitance Range 4 nF ~ 200 μF
Operating Temperature 0 ~ 40 °C (32 ~ 104 °F)
Dimensions 178 (L) x 85 (W) x 40 (H) mm (7.01 x 3.35 x 1.57 inch)

Specifications

5-in-1 Multimeter w/ Temperature, Sound Level & Lux

Brief Description



This 5 in 1 multifunction meter combines Multimeter, Sound Level Meter, Luxmeter, Thermometer and Hygrometer into one unit. Moreover, this multimeter has 14 functions with 39 measuring ranges. With novel design and functionality, the meter was granted iF product design award in Hannover.



This Multimeter measures DC & AC Current and Voltage, Resistance, Capacitance, Frequency, Diode and Continuity Test. The meter also measures Sound Level (dB), Illuminance (Lux), Temperature (°C) and Relative Humidity (RH). The meter also has functions of Data Hold, Over range protection, Backlight LCD display and Auto Power Off.



This is an ideal tool for in schools, laboratories, industries and home applications.





Features

  • 5 in 1 meter: Multimeter, Sound Level Meter, Luxmeter, Thermometer and Hygrometer
  • Including 14 functions with 39 Auto and Manual ranges
  • Measuring DC & AC Current and Voltage, Resistance, Capacitance, Frequency, Diode and Continuity Test.
  • Measuring Sound Level (dB), Illuminance (Lux), Temperature (°C) and Relative Humidity (RH)
  • Over range protection for all ranges
  • Large LCD display with backlight
  • Data hold, Low power indication, Auto Power off
  • Double Insulation





Specifications:



Electrical Specifications:

Circumstance Temperature: 23 °C (73.4 °F)

Relative Humidity: < 70%



DC Voltage

Range

Resolution

Accuracy

Overload Protection

400 mV

0.1 mV

± (0.7 % of reading + 2 digits)

250 V DC or 250 V rms AC

4 V

1 mV

600 V DC or 600 V rms AC

40 V

10 mV

400 V

100 mV

600 V

1 V

± (1.0 % of reading + 2 digits)



Input Impedance: 10 MΩ

Maximum input voltage: 600 V DC or 600 V rms AC





AC Voltage

Range

Resolution

Accuracy

Overload Protection

4 V

1 mV

± (0.8 % of reading + 3 digits)

600 V DC or 600 V rms AC

40 V

10 mV

400 V

100 mV

600 V

1 V

± (1.5 % of reading + 5 digits)



Input Impedance: 10 MΩ

Overload Protection: 400 mV range: 250 V DC or rms AC

Maximum Input Voltage: 600 V DC or 600 V rms AC

Frequency Range: 40 to 400 Hz

Response: Average, calibrated in rms of sine wave.



DC Current

Range

Resolution

Accuracy

40 mA

10 μA

± (1.2 % of reading + 3 digits)

400 mA

100 μA

10 A

10 mA

± (2.0 % of reading + 10 digits)

Overload Protection: mA ranges: F 500 mA / 250 V fuse (quick acting), 10 A range: unfused.

Maximum Input Current: mA Jack: 400 mA, 10 A Jack: 10 A

Voltage Drop: mA ranges: 5 mV / 1 mA, 10 A range: 10 mV / 1 A



AC Current

Range

Resolution

Accuracy

40 mA

10 μA

± (1.5 % of reading + 5 digits)

400 mA

100 μA

10 A

10 mA

± (3.0 % of reading + 10 digits)

Overload Protection: mA ranges: F 500 mA / 250 V fuse (quick acting), 10 A range: unfused.

Maximum Input Current: mA Jack: 400 mA, 10 A Jack: 10 A

Voltage Drop: mA ranges: 5 mV / 1 mA, 10 A range: 10 mV / 1 A

Frequency Range: 40 to 400 Hz

Response: Average, calibrated in rms of sine wave



Resistance

Range

Resolution

Accuracy

400 Ω

0.1 Ω

± (1.2 % of reading + 2 digits)

4 kΩ

1 Ω

40 kΩ

10 Ω

400 kΩ

100 Ω

4 MΩ

1 kΩ

40 MΩ

10 kΩ

± (2.0 % of reading + 5 digits)

Open Circuit Voltage: 0.25 V

Overload Protection: 250 V DC or rms AC



Continuity Test: Buzzer will sound if resistance is lower than 40 Ω





General Specifications

  • 14 functions with 39 ranges
  • Auto and manual range
  • Over range protection for all ranges
  • Maximum Voltage between Terminals and Earth Ground: 600 V DC or rms AC
  • Operating Altitude: 2000 Metres (7000 feet) maximum
  • Maximum shown value: 3999 counts max
  • Polarity indication: “-“ indicates negative polarity
  • Over range indication: Display ‘0L’ or ‘-0L’
  • Sample Time: approximately 0.4 second
  • Unit showing: showing of function and electrical capacity
  • Auto power off time: 15 minutes
  • Fuse Protection: F 500 mA / 250 V (quick acting)
  • Low battery indication
  • Temperature Factor: < 0.1 x Accuracy / °C
  • Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
  • Storage Temperature: -10 ~ 50 °C (14 ~ 122 °F)
  • Power Supply: 9 V PP3 Battery (not included)
  • Dimension: approx. 178 (L) x 85 (W) x 40 (H) mm (7.01’ x 3.35’ x 1.57’ inch)
  • Weight: approx. 320g





One set included:

  • 1 x 5 in 1 Multimeter
  • 2 x Test Leads (1 set)
  • 2 x Alligator Clips (1 set)
  • 1 x K-Type Thermocouple
  • 1 x Instruction Manual
  • Standard Factory Package
