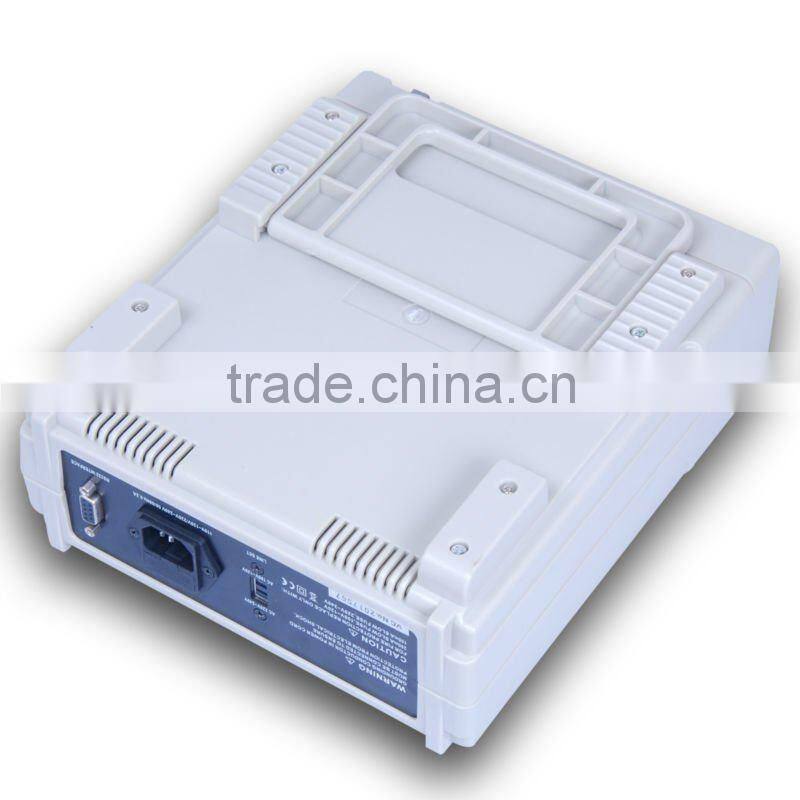

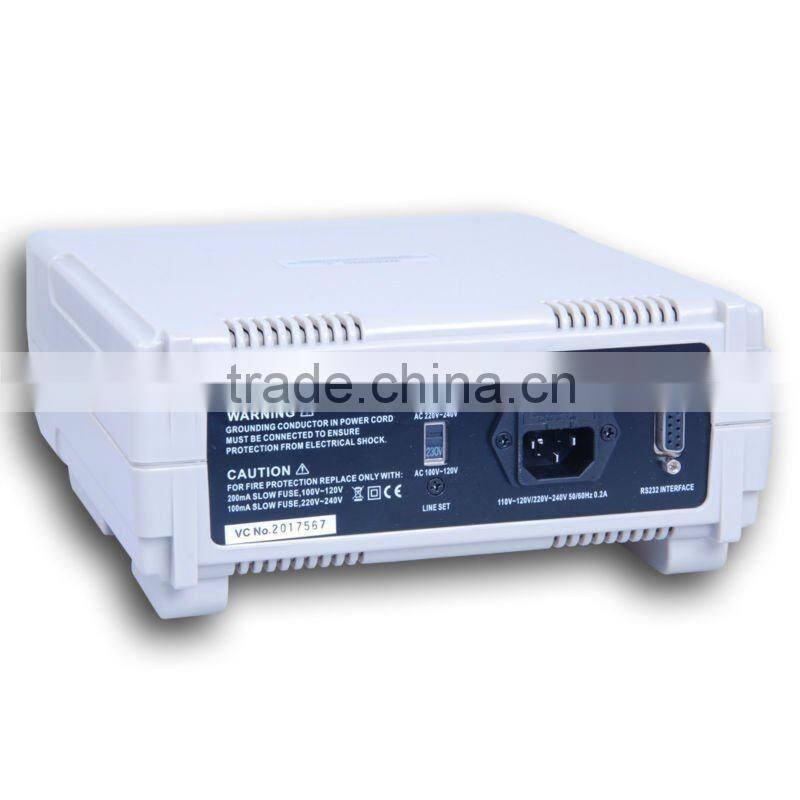

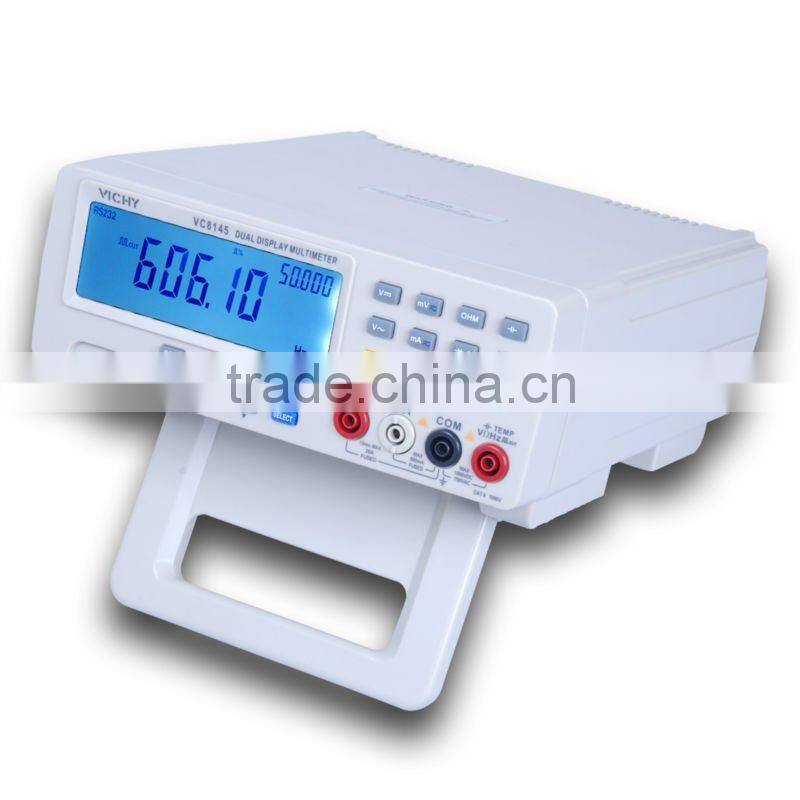

VICHY VC8145 DMM Digital 80000 counts Bench Top Meter PC Multimeter

Specifications

Brief Description

This Professional Bench Top Multimeter (VC8145) is made by VICHY Brand. It has 4 7/8 digits Dual Displaywith 80,000 counts and Analog Bar Graph with 23 segments.

VC8145 is high performance with more than 50 measuring functions including DC/AC Voltage, DC/AC Currents, Resistance (Ω), Capacitance, Frequency (Hz), Rotational Speed, Square Waveform, Temperature (°C/°F), Duty Cycle, Diode and Continuity Check.

Moreover, you can connect VC8145 to your computer through RS-232 Cable.The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal / minimal value measuring.

This multimeter is most suitable for use on production lines, laboratories, factories, radio-technology, R & D, maintenance and repairing work.

Features

• Large and wide angle LCD display with white backlight
• Dual Display:
• Main Display: 80000
• Vice Display: 80000
• Analog Bar Graph: 23 segments
• More than 50 measuring functions including DC/AC Voltage, DC/AC Currents, Resistance (Ω), Capacitance, Frequency (Hz), Temperature (°C/°F), Duty Cycle, Diode and Continuity Check
• Single Analyzed:
• (AC+DC) measuring synchronous
• (AC+Hz) measuring synchronous
• (DC+dBm) measuring synchronous
• (dBm+Hz) measuring synchronous
• (Hz+Duty) measuring synchronous
• ( °C+ °F) displaying synchronous
• Frequency measuring up to 80 MHz
• Basic DC Accuracy: 0.05 %
• mV Impedance: > 1000 MΩ
• Standard function generator: 16 kinds of frequency, 1 ~ 99% Duty cycle, 1800 pieces wave output
• Resistance measuring from 0.01 to 80 MΩ
• Capacitance measuring from 10 PF to 100 μF
• Temperature measuring from -50 ~ 1300 °C (-58 ~ 2372 °F)
• dBm measuring: 20 pieces load Resistance choice
• Auto data refurbish, positive, negative peak data auto hold
• 36 hours dynamic record: MAX, MIN, AVG, MAX-MIN
• Relative measuring: REL, Relative percent: REL%
• 0.1 ~ 99.9% pulse duty cycle measuring
• Set upper and lower limit area measuring
• Photoelectricity insulation RS-232 computer interface
• Timing measuring function
• AC measuring adopt High accuracy RMS, Widely measuring and AC+DC function, can measure the accuracy virtual value of AC by any wave

Specifications

• Maximum Voltage between any terminal and earth ground: 1000 V RMS
• Continuity Beeper: approx. 3 kHz
• Display: Double Digital: 80000
• Bar Graph: 23 segments, update 40 times/second
• Electromagnetic Compatibility: in a RF field or 1 V/m on all ranges and function except Capacitance
• Total Accuracy: specified +5% of range Capacitance not specified in RF fields performance above 1 V/m is not specified
• PC Interface: RS-232
• Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
• Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
• Operating Altitude: under 2,000 m (6,562 feet)
• Storage Altitude: under 10,000 m (32,808 feet)
• Relative Humidity: ≤ 75 % at 0 ~ 40 °C (32 ~ 104 °F)
• Battery Type: 9V DC Adapter
• AC Power: 100 ~ 240 V (US / EU / AU / UK Power adapter plug)
• Safety and Compliance: IEC 61010, CAT II 1000 V, CAT III 600 V
• Item Size: approx. 242 (L) x 209 (W) x 92 (D) mm (9.53 x 8.23 x 3.62 inch)
• Item Weight: approx. 1382 g (48.7 oz) (accessories excluded)

One Set Included

• 1 x Digital Bench Top Multimeter
• 1 x Pair of Test Leads
• 1 x Type K Thermocouple
• 1 x Software CD
• 1 x RS-232 Cable
• 1 x AC Power Cord (US / EU / AU / UK Power adapter plug)
• 1 x Instruction Manual
• Standard Factory Package
