Digital AngleFinder Protractor Spirit Level 360 Degree Angle Meter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
AN-102
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital AngleFinder 360 Degree 2in1 Protractor Ruler Angle MeterNegotiableMOQ: 1 Piece -
Bidirectional Ultrasonic Range Laser Measure Length Area Volume Distance MeterNegotiableMOQ: 1 Piece
-
Laser Area Volume Measure Range 0.5m ~60m 20inch~197ft Ultrasonic Distance MeterNegotiableMOQ: 1 Piece
-
Mini Digital Protractor Inclinometer Angle Meter 360 Degree Slope Angle Upright MagnetNegotiableMOQ: 1 Piece
-
Digital Bevel Box Gauge Angle Protractor Slope Level InclinometerNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
AN-102
Specifications

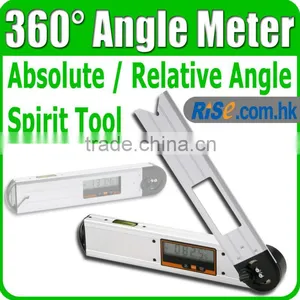

Digital Angle Finder Spirit Level (360 degree)Brief Description
This Angle Meter measures and lays out any angle accurately and quickly. This angle meter is featured with wide measuring range up to 360° , High Resolution (0.05° ) and High Accuracy (0.1° ). With bubble level, you can also use it as a Spirit Level Tool.
You can instantly measure absolute and relative angles within a 225° range, making it useful for layout work, machine set-up (table-saw blades, jointer fence etc) and trim installation. The flat and straight edges of the meter are perfect for marking accurate lines with a marker or pencil.
Features
- Easy to measure all kinds of angle and draw lines

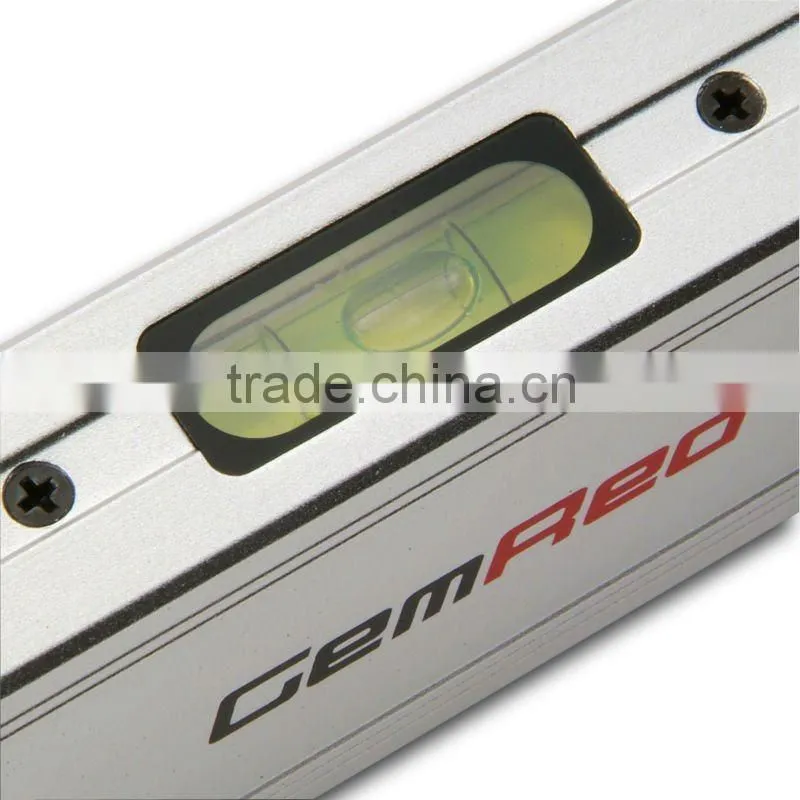

- Accurate Bubble / Spirit Level for measuring horizontal level easily
- Wide measuring range up to 360° without locking knob
- With adjustable pivot leg providing 225° range of movement
- High resolution of 0.05° and easily transfer miter angles with no calculations
- Conversion between absolute measurement and relative measurement

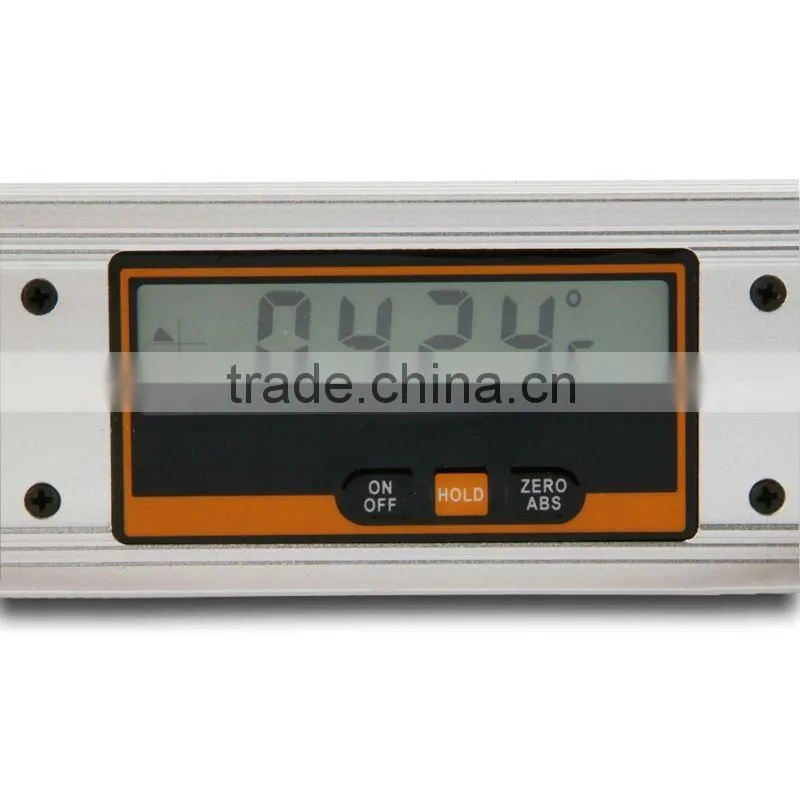

- Display always reads upright, no matter which way it is turned
- Easy Calibration and Zero Setting
- Data HOLD function
- Analogue quadrant for easy reading
- Accurate Level Bubble for measuring horizontal Level

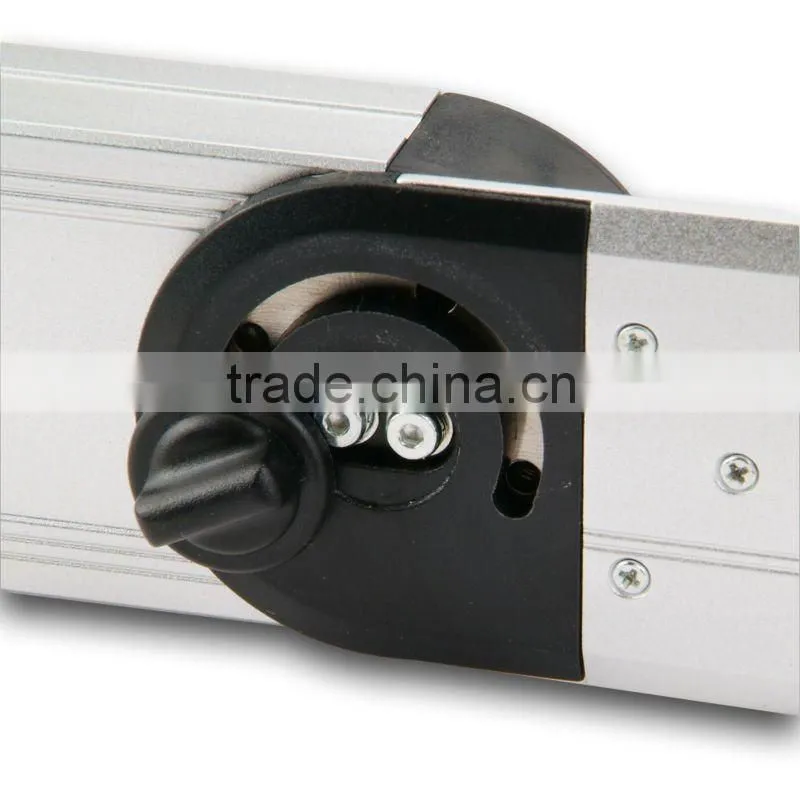

- Lock the moving blade at any angle
- Long Battery Life (more than 2000 hours)
Specifications
- Measuring Range: 0 ~ 360°
- Resolution: 0.05°
- Accuracy: 0.1°
- Operating Temperature: 5 ~ 45 °C (41 ~ 113 °F)
- Operating Humidity: 0 ~ 85% R.H.
- Working Current: < 80 µA
- Power: 1 x 3V CR2032 Battery (not included)
- Battery Life: more than 2000 hours
- Dimensions: approx. 254 (L) x 50 (W) x 36 (D) mm (10.0' x 1.97' x 1.42' inch)
- Weight: approx. 410 g (14.46 oz)
One Set Included
- 1 x Digital Angle Meter (360 ° )
- 1 x Instruction Manual
- Standard Factory Package
