Specifications

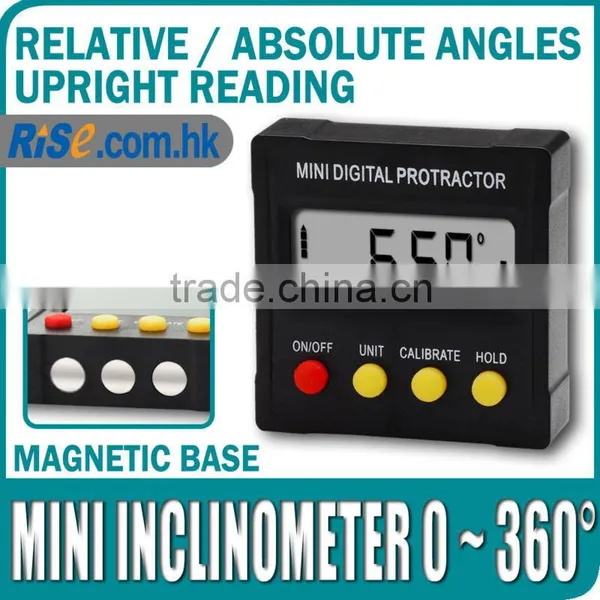

Mini Digital Inclinometer with Magnet Base (4 x 90 degree)Brief Description

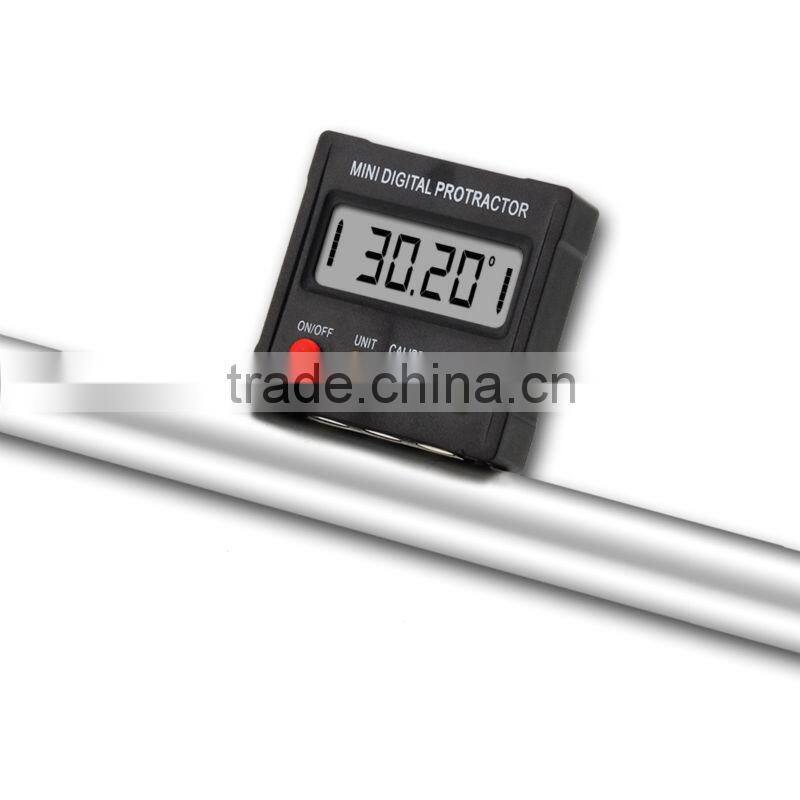

This mini Digital Inclinometer is used to measure slope angles 4 x 90° (total 360° ) range withresolution 0.1° for wide variety of applications. Readings can be shown in Degree or Percentage. Compared with traditional inclinometers, this product equips 3pcs of strong magnet so that it can firmly be attached to metal surfaces.

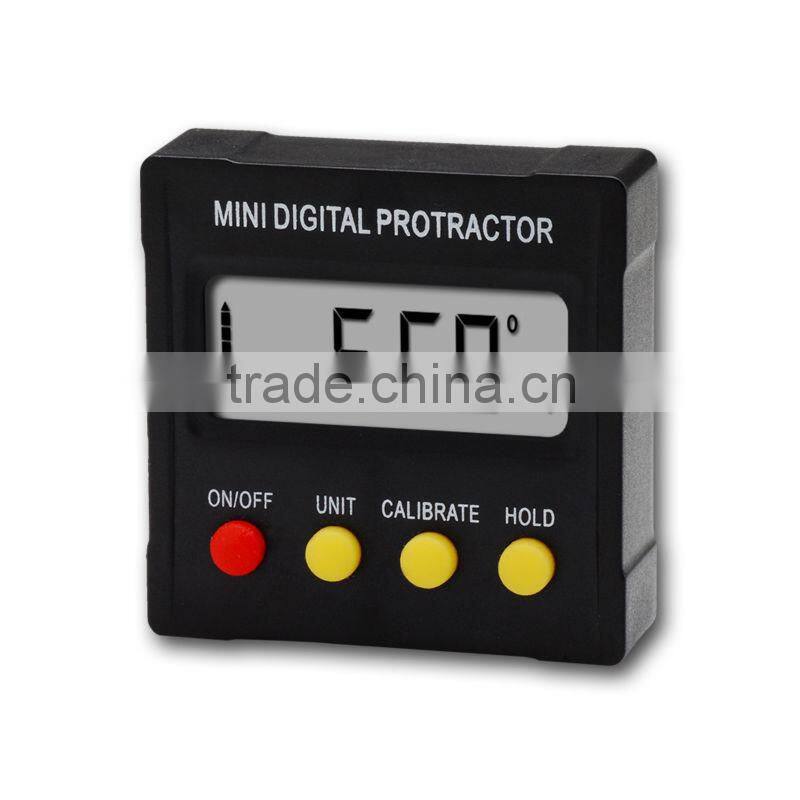

The inclinometer is featured with large and clear LCD. It isultra-slim and more convenient for users to measure on small machines and easy for carrying. You can even put it into your clothing pockets for field works. In addition, the reading is always displayed upright even the inclinometer is upside down.
Moreover, you can simply place the meter on a reference surface zero to measure relative angle, then it will give a result of measured slope angle. With absolute angle measurement, you will able to test whether the working surface is on the level. You can use this function to check roof slopes and wheel alignment etc. This meter works great for miter and table saws, detailed applications are listed as follows.
Applications
- Drainage angles and run-off slopes
- Tool setting on Lathes
- Setting blade angle of Circular Saws
- Setting blade angle of Miter Saws
- Setting work piece angle for milling
- Grader and tractor work alignment
- Platform monitoring
- Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table
Features
- Ultra-slim size
- Portable design & simple operation

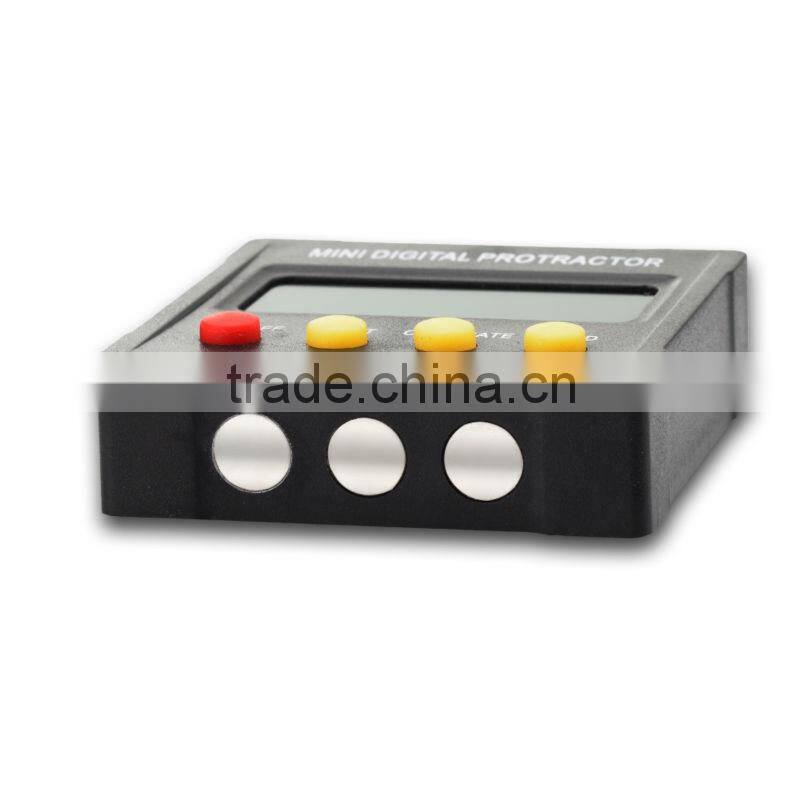

- Built-in 3pcs of strong magnet for attaching on metal surfaces
- High accuracy and resolution
- Measuring range of 4 x 90° (total 360°)
- Degree and Percentage of slope in conversion

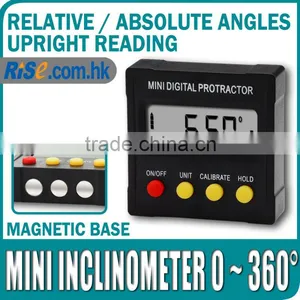

- Absolute & relative measurement modes

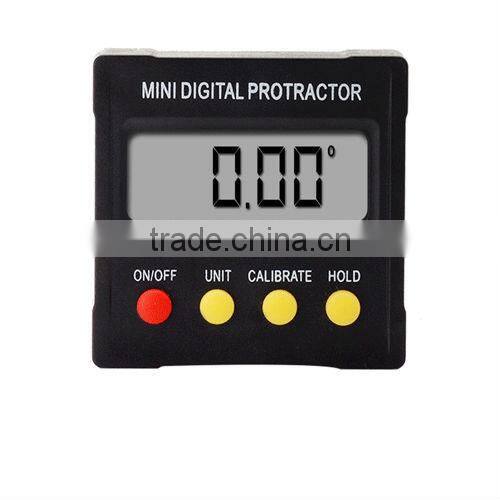

- Large and clear LCD display
- Measured data hold
- Calibrate button to calibrate the meter to any reference surface

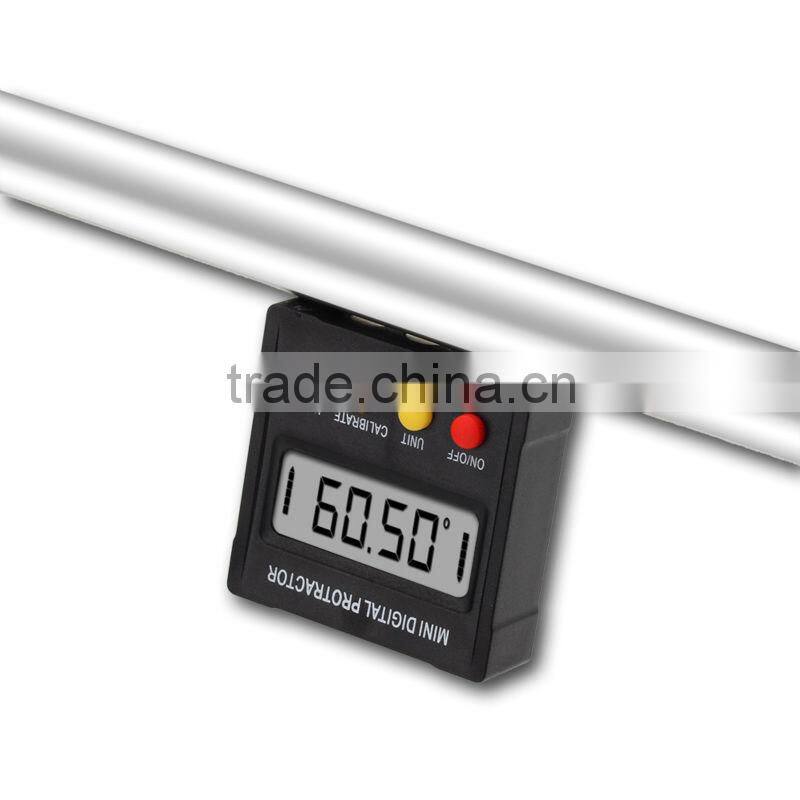

- Displayed readings remain upright to enable easy viewing at all angles
Specifications
- 3pcs of magnet on base
- Measuring Range: 4 x 90°
- Resolution: 0.1°
- Operating Temperature: 0 ~ 40°C
- Operating Humidity: 40 ~ 80%

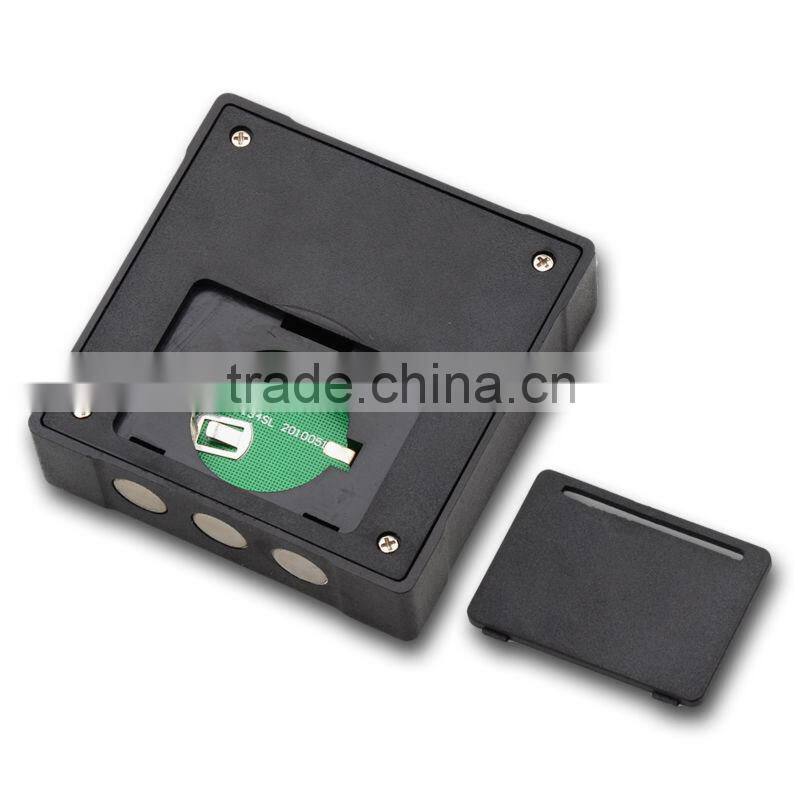

- Power: 3 x 3V CR2032 Batteries (not included)
- Dimensions: approx. 55 (L) x 55 (W) x 15.5 (D) mm (2.1’ x 2.1’ x 0.6’ inch)
- Weight: 40g
One Set Included
- 1 x Mini Digital Inclinometer

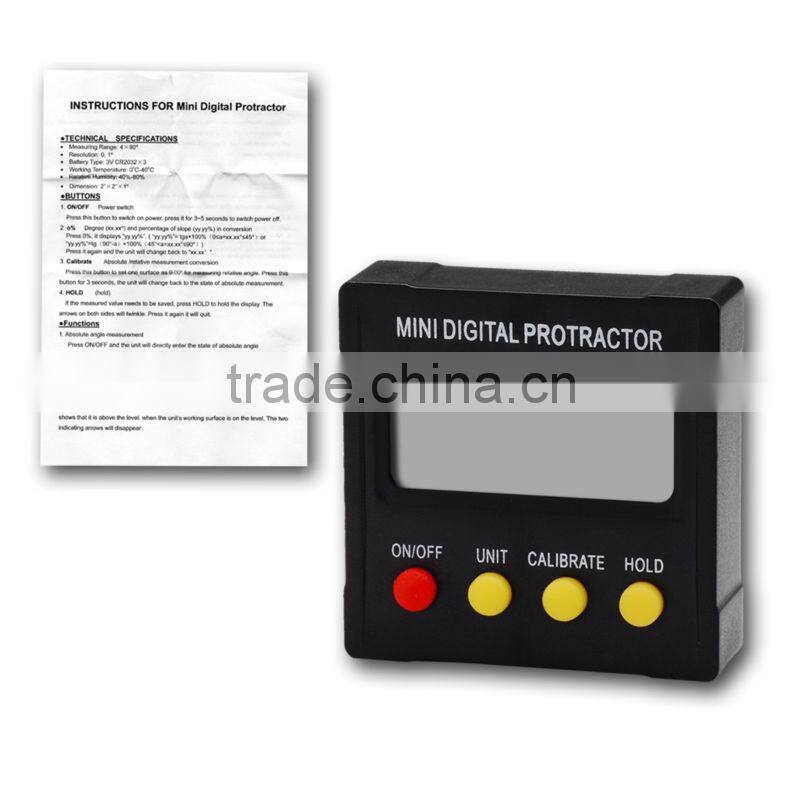

- 1 x Instruction Manual
- Standard Factory Packag
