Digital Bevel Box Gauge Angle Protractor Slope Level Inclinometer
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
IM-104
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Tread Depth Gauge LCD Magnetic Self Standing Aperture 80mm Hand RoutersNegotiableMOQ: 1 Piece -
Digital Level 360 Degree Range Angle Finder Spirit Level Upright Magnets InclinometerNegotiableMOQ: 1 Piece
-
Digital Level 360 Degree Range Angle Finder Spirit Level Upright Magnets Golden Color InclinometerNegotiableMOQ: 1 Piece
-
Range Finder Accuracy 2mm 40m 131ft Laser Distance Meter Area Volume MeasurerNegotiableMOQ: 1 Piece
-
Accuracy 2mm 60m/196 ft Area Volume Measurer Range Finder Laser Distance MeterNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
IM-104
Specifications
Bevel Box / Inclinometer (up to 360 degree)Brief Description

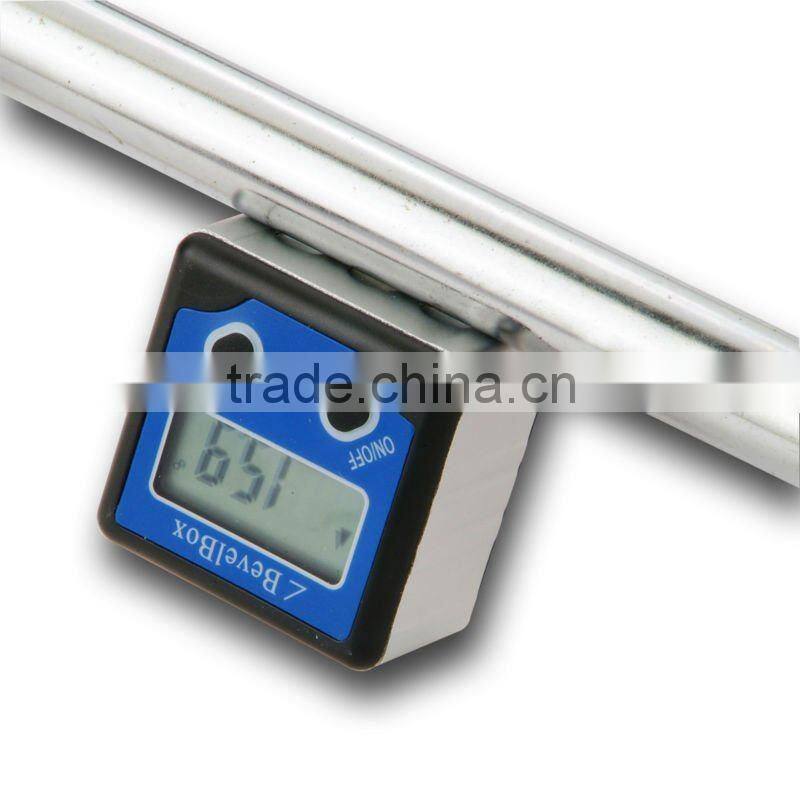

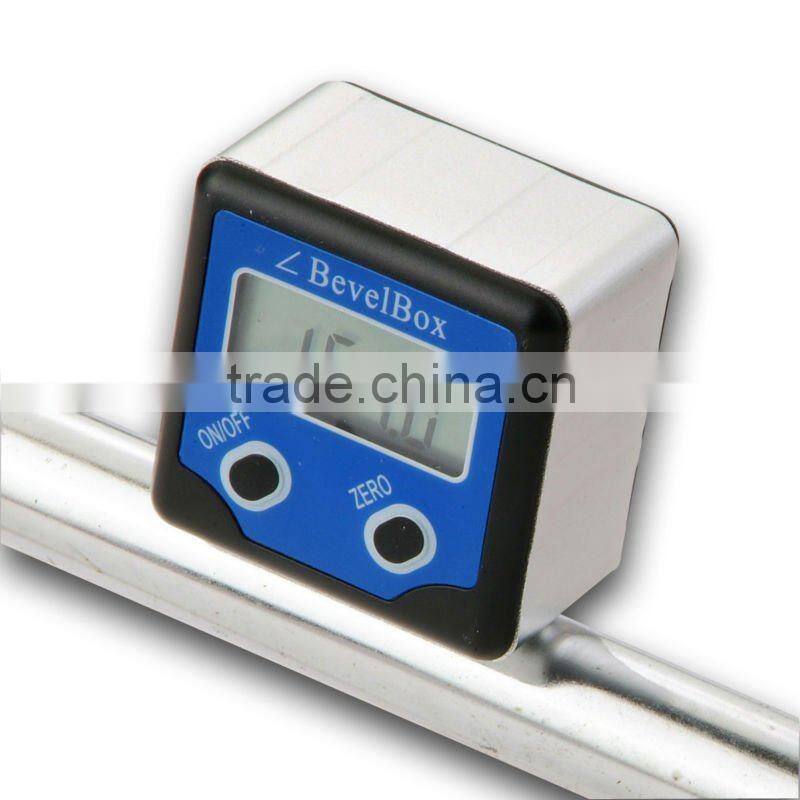

This Bevel Box is a mini digital protractor that provides digital reading between ±180.0° (0 ~ 360° ) on table saws and other shop equipment instantly. You can simply place the meter on a reference surface zero, then it will give a result of measured angle within 0.1° accuracy.
The extra large LCD is convenient to read and light weight and small design is easy for you to carry. Measuring plane containing strong disk magnet material can stick to the surface measured. It is especially easy to measure bevel angle of miter saw, examine and repair the automobile and so on.
Applications
- Drainage angles and run-off slopes
- Tool setting on Lathes
- Setting blade angle of Circular Saws
- Setting blade angle of Miter Saws
- Setting work piece angle for milling
- Grader and tractor work alignment
- Platform monitoring
- Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table
Features

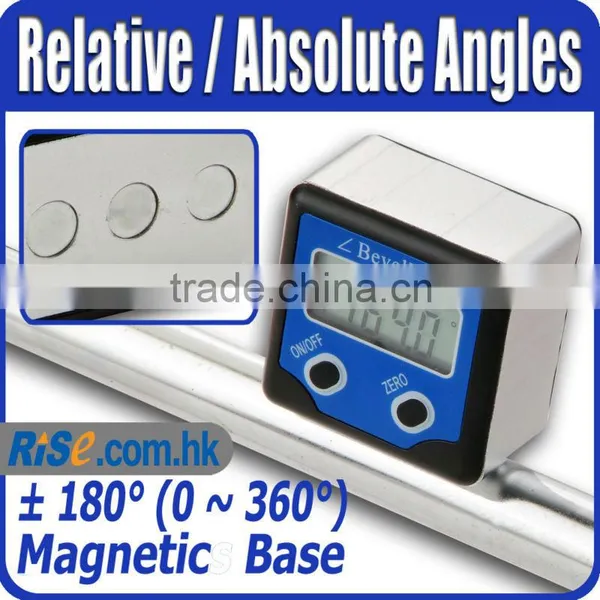

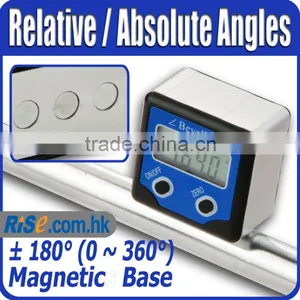

- Wide measuring range of ±180° (0 ~ 360° ) with ± 0.1 Repeatability
- Zero button to calibrate the gauge to any reference surface

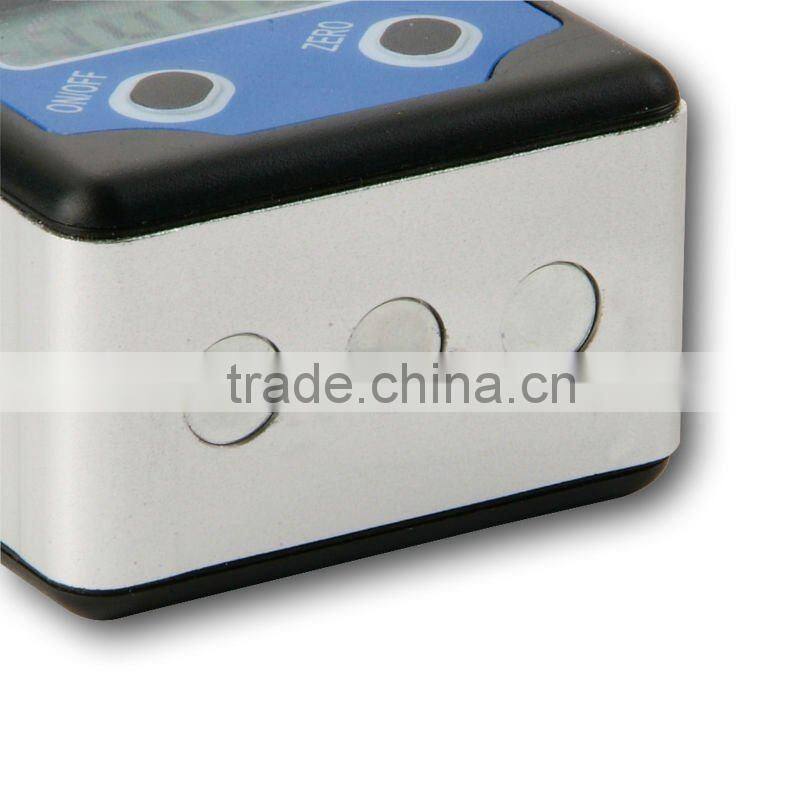

- 3 powerful built-in magnets on the base of the main unit to attach any magnetic surfaces
- Fast and accurate measurements
- Light weight portable design

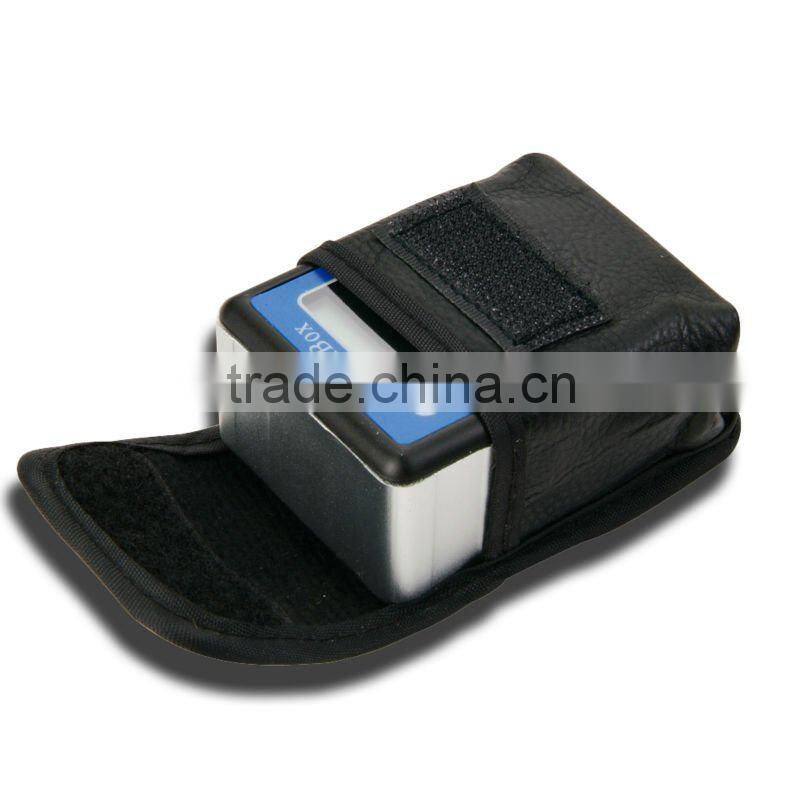

- FREE carrying pouch
Specifications
- Measuring Range: ± 180° (0 ~ 360° )
- Resolution: 0.1°
- Repeatability: ± 0.1°
- Working Current: < 100 μA
- Power: 3V CR2032 Lithium Battery (not included)
- Dimension: approx. 50 (L) x 50 (W) x 33 (D) mm (1.97' x 1.97' x 1.29' inch)
- Weight: approx. 117 g (4.12 oz)
One Set Included
- 1 x Bevel Box
- 1 x Instruction Sheet
- 1 x Carrying Pouch
- Standard Factory Package
