Specifications

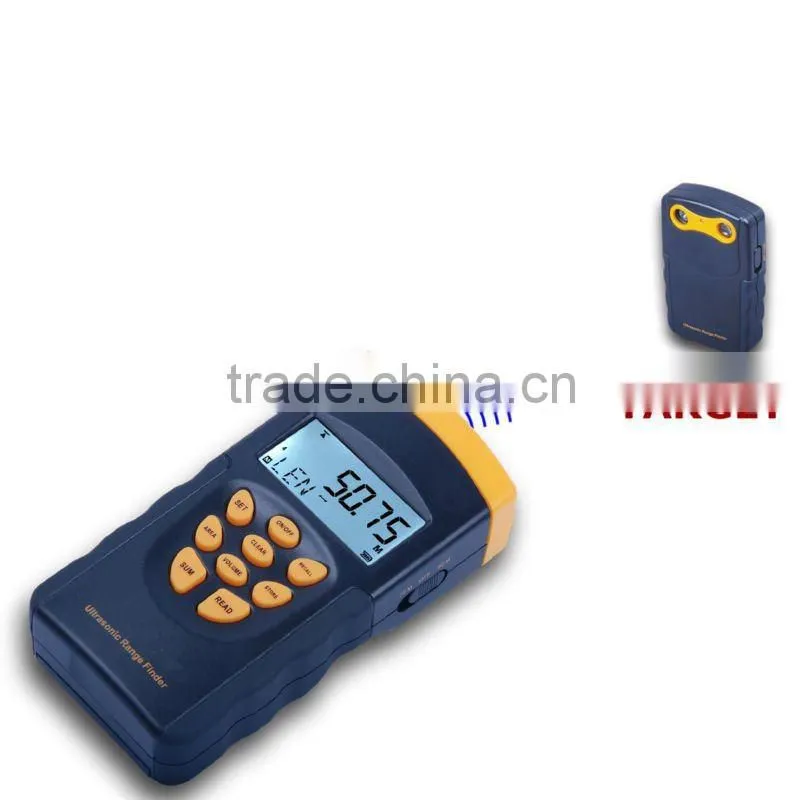

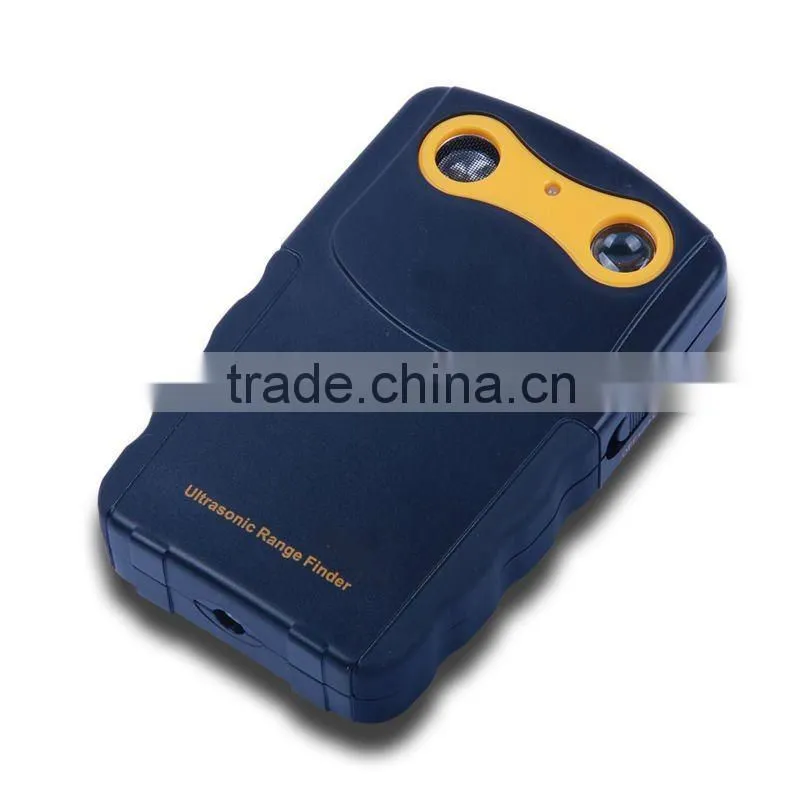

Ultrasonic Distance Meter and Target Unit with Range 60m(197ft)Brief Description
This Double Unit Ultrasonic Distance Meter is an ideal tool for real estate agents or building industry professionals to provide Quick measurement of Distance, Area and Volume. The tool can widely measure distances in a straight line from 0.5 to 60 m (1.64 to 197 feet).
This meter transmit Ultrasonic Waves to a target point and measure the time taken by the waves to reflect and then calculates the Distance. Compared with traditional distance meter, this Professional Distance Meter can transmit signals to the "Target Unit" and receive sound waves back from the "Target" in the "dual unit mode" when measuring from 1 ~ 60 m (3.28 ~ 197 feet).
The LCD has Backlight and you can aim the object with Laser Pointer. This advanced instrument has "Temperature Compensation" for greater accuracy because temperature will affect speed of sound. It is also featured with measuring sensitivity adjustment for different measuring purposes, switchable between metre (m) or feet (ft), Temperature measurement (ºC or ºF), 5 groups of memory storage and Calculation of Area and Volume.
Features
- Wide measuring option, 20M / 60M
- Backlight and laser indicator
- Adjustable Measuring Sensitivity for different measuring purposes
- Measuring temperature (ºC or ºF)
- Option usage for Double & Single unit rangefinder
- 5 groups of value in memory
- Data store, recall and delete
- Quick 2 seconds response time
- Clear and big LCD screen with Backlight
- Hold function
- Switchable between metre (m) or inch / feet (ft)
- Start point selection
- Automatically computes Area and Volume
- Takes the sum of consecutive length measurements
- Low battery indication
- With clear visual notification and audible sound to guide the correct measurement or when there is an error in reading as well as in reading confirmation
- Auto / manual power off function
- Key sounds, beep for wrong reading finding and reading confirmation
- Ultrasonic Design
- Ergonomic soft-grip area for sure grip and comfort
- When summing up length, maximum length in feet 999, 10 in inches and 600 in meters
- Conformed with CE standard, ISO9001 and UKAS certified
- Regulatory approvals laser guide system
Specifications
- Measuring range
- Single unit: 0.5 ~ 20 m (20 inch ~ 65 feet)
- Double unit: 1 ~ 60 m (39-3/8 inch ~ 197 feet)
- Accuracy
- Single unit: 0.5 ~ 20 m ± 1% (± 1/4 inch or ± 1 cm)
- Double unit: 1 ~ 60 m ± 1% (± 1/2 inch or ± 2 cm)
- Conditions of test: 0 ~ 30 ºC (32 ~ 86 ºF), 30 ~ 70 %R.H.
- Working frequency: Single unit -40 kHz; Double unit -25 kHz
- Current consumption
- Stand-by current: ≤ 50 µA
- Operating current: 16 ~ 35 mA
- Operating environment
- Temperature: 0 ~ 48 ºC (32 ~ 100 ºF)
- Humidity: 30 ~ 80 %RH
- Auto shut-off: approx. 120 seconds
- LCD backlight
- Power supply: 1 x 9V battery for main unit or target unit (Included)
- Battery life: 50 hours continuous operations
- Store temperature: -10 ~ 60 ºC (14 ~ 140 ºF)
- Dimension (Main unit): approx. 150 x 75 x 44 mm (5.90 x 2.95 x 1.73 inch)
- Dimension (Target): approx. 118 x 74 x 23 mm (4.65 x 2.91 x 0.91 inch)
- Weight (Main unit): approx. 210 g (7.41 oz) (battery excluded)
- Weight (Target): approx. 110 g (3.88 oz) (battery excluded)
One Set Included
- 1 x Distance Meter (Main Unit)
- 1 x Target Unit
- 2 x 9 V Batteries
- 1 x Instruction manual
- Standard Factory Package
