Bidirectional Ultrasonic Range Laser Measure Length Area Volume Distance Meter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
DM-106
Measurement Accuracy:
±1% ±digit
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Laser Area Volume Measure Range 0.5m ~60m 20inch~197ft Ultrasonic Distance MeterNegotiableMOQ: 1 Piece -
Mini Digital Protractor Inclinometer Angle Meter 360 Degree Slope Angle Upright MagnetNegotiableMOQ: 1 Piece
-
Digital Bevel Box Gauge Angle Protractor Slope Level InclinometerNegotiableMOQ: 1 Piece
-
Digital Tread Depth Gauge LCD Magnetic Self Standing Aperture 80mm Hand RoutersNegotiableMOQ: 1 Piece
-
Digital Level 360 Degree Range Angle Finder Spirit Level Upright Magnets InclinometerNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
DM-106
Measurement Accuracy
±1% ±digit
Specifications
Bidirectional Ultrasonic Distance Meter with Measuring Range up to 32mBrief Description
This Bidirectional Ultrasonic Distance Meter determines the distance to the object through electronic signals with high speed. The tool with built-in computer chip has the function of calculation of room area and volume.
The unique bidirectional dynamic measurement technology makes the effective measurement distance can reach 32 metres (104.9 feet). The tool has the function of long distance measurement. It is easy to operate and clear to display. It is Class II Laser tool and conforming to EN60825-1 safety rule.
This is an ideal tool for building, decoration industries such as land agents, upholstery designers and craftsmen).
Features

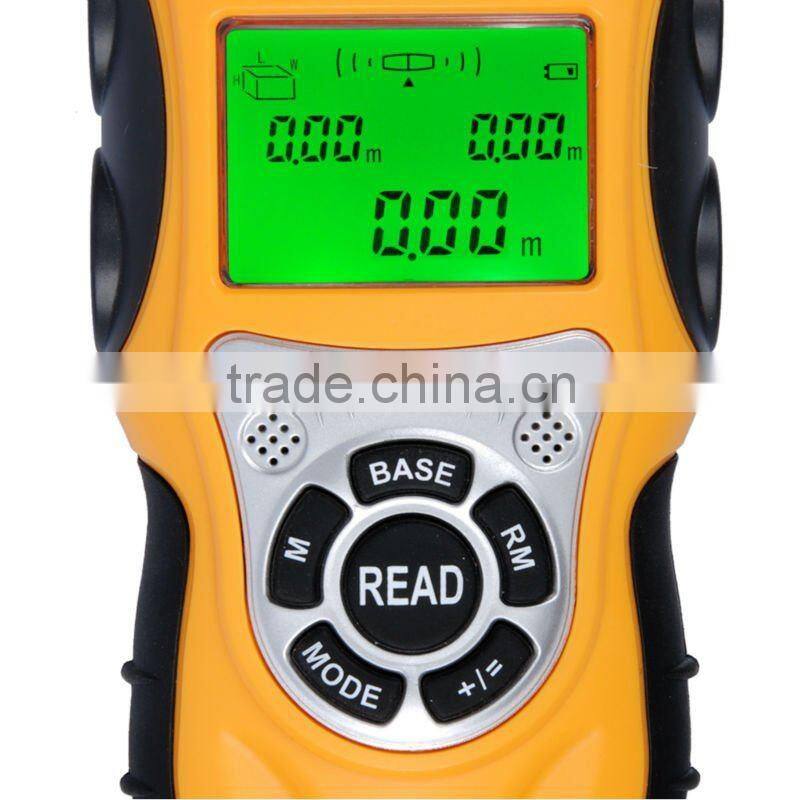

- Showing measured data (upper line) and computed result (bottom line) in one LCD

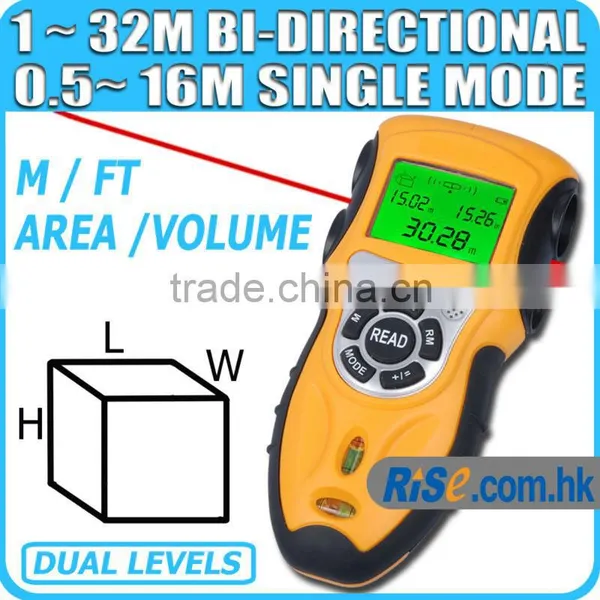

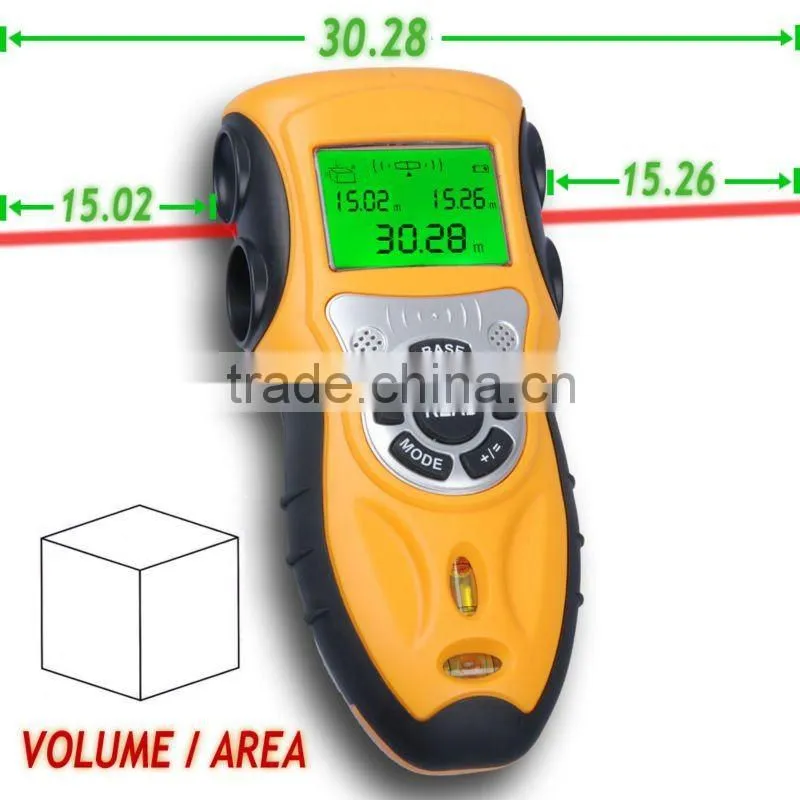

- Bi-directional or single direction distance measurement
- Measurement Ranges:
- Single direction: 0.5 to 16 m (1.64 ~ 52.5 feet)
- Bidirectional direction: 1 to 32 m (3.28 ~ 104.9 feet)
- Memory recall feature
- Memory and accumulation function
- Display environment temperature, in °C or °F
- Measures length, area and volume

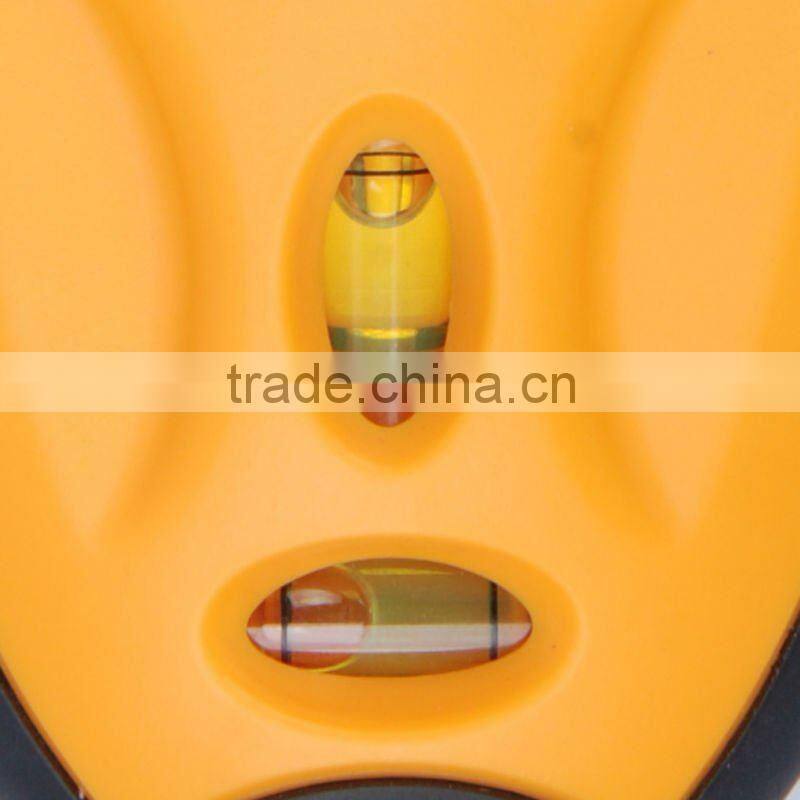

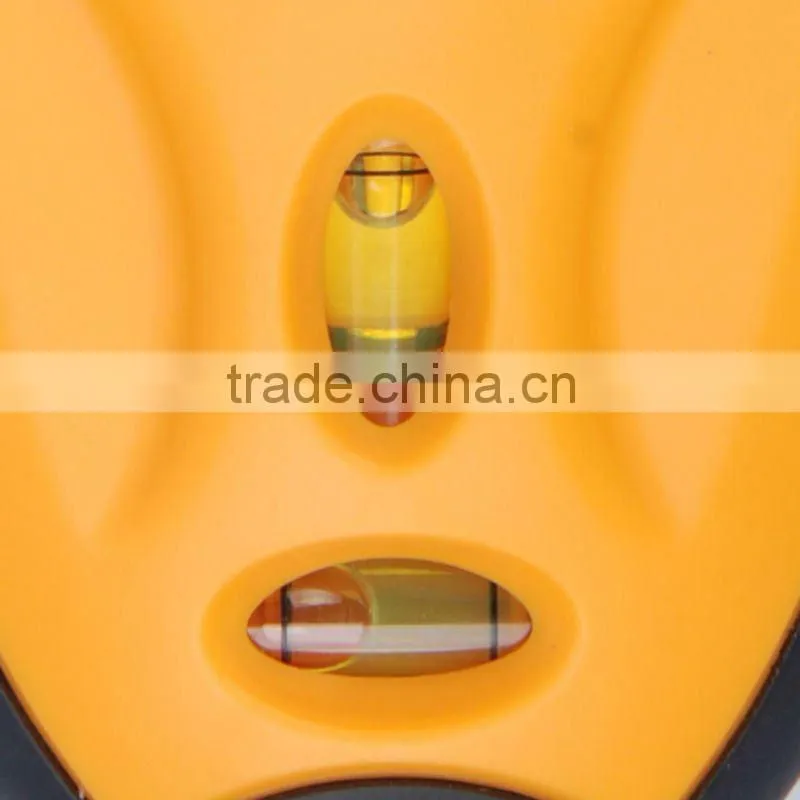

- Horizontal and Vertical spirit levels
- Base measurements
- Measurement units: square foot (ft2), cubic foot (ft3), meter (m), square meter (m2) and cubic meter (m3)
- 630 ~ 660 nm wavelength of laser with 0.01m resolution
- Accuracy: ±1%±1digit
- Distance of limit measurement: 40m (under the standard test environment)
- Manual & Automatic power-off
- Left and right measured results
- Addition operation with and without memory
- Error warning display if out of specified range
- Laser pointing, Sound indication and Backlight function
- Automatic calculation of measured results
- Selectable between m and ft
Specifications
- Indoor Use
- Measuring Range:
- Single Direction : 0.5 to 16 m (1.64 ~ 52.5 feet)
- Bidirectional Direction: 1 ~ 32 m (3.28 ~ 104.9 feet)
- Distance of limit measurement: 40m (under the standard test environment)
- Accuracy: ±1% ±digit
- Base Select: Left edge, mid point, right edge
- Calculation Range:
- Length: 9999' 11" (9999.99 m)
- Area: 99999.9 sq. ft (99999.9 m2)
- Volume: 999999 cu ft (999999 m3)
- Resolution: 0.01 m
- Wavelength: 630 ~ 660 nm
- Temperature Range: 0 ~ 40 °C (32 ~ 104 °F)
- Class II Laser Product
- 60 seconds automatic power off
- Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)

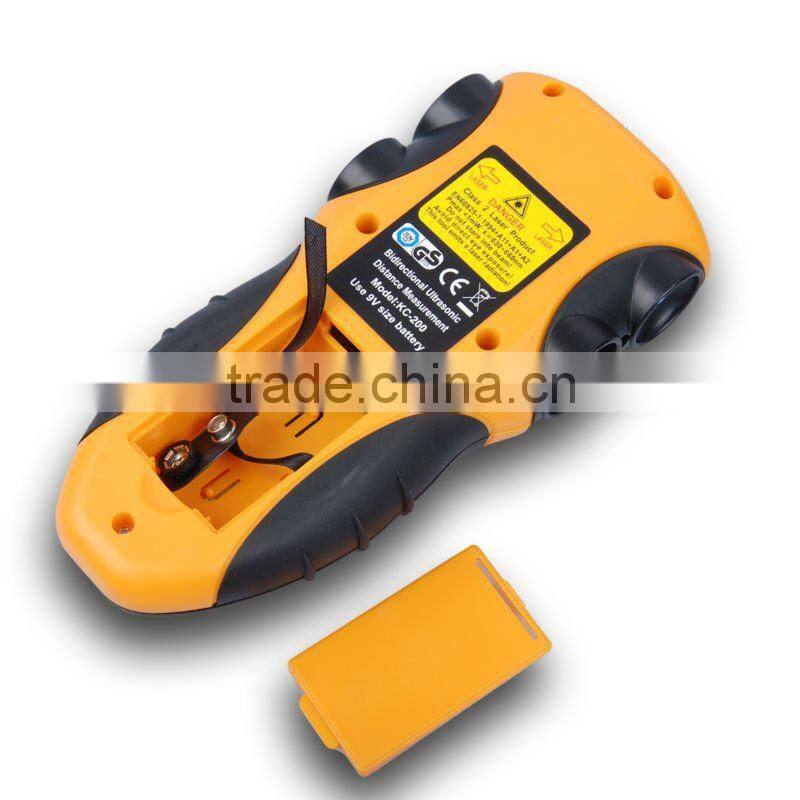

- Power Supply: 1 x 9V 6F22 Battery (not included)
- Item Dimensions: approx. 180 (L) x 82 (W) x 49 (D) mm (7.08 x 3.23 x 1.93 inch)
- Item Weight: approx. 195g (battery excluded)
One Set Included
- 1 x Bidirectional Ultrasonic Distance meter
- 1 x Instruction Manual
- Standard Factory Package
