Product Application

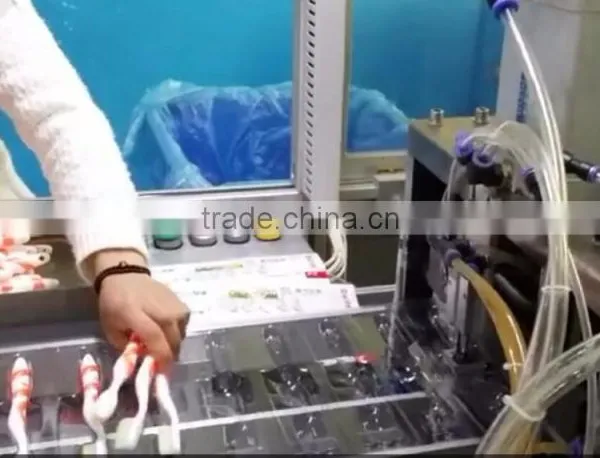

The product is suitable for (battery, electronics, glue, hardware, stationery (pencil sharpener, eraser, correction fluid, solid glue), automobile and motorcycle fittings, brake pads, spark plug), daily necessities (razors, toothbrushes, pacifiers), cosmetics (lipstick), medicine (safflower oil, oil and refined), toys (car), medical equipment, food, and other related products industry, paper and plastic packaging.
Structure characteristics:
The heating time of PVC is shortened, the molecular structure of the PVC is effectively protected, and the energy is saved, and the heating plate is automatically opened when the machine is shut down, so as to avoid the waste of the PVC.

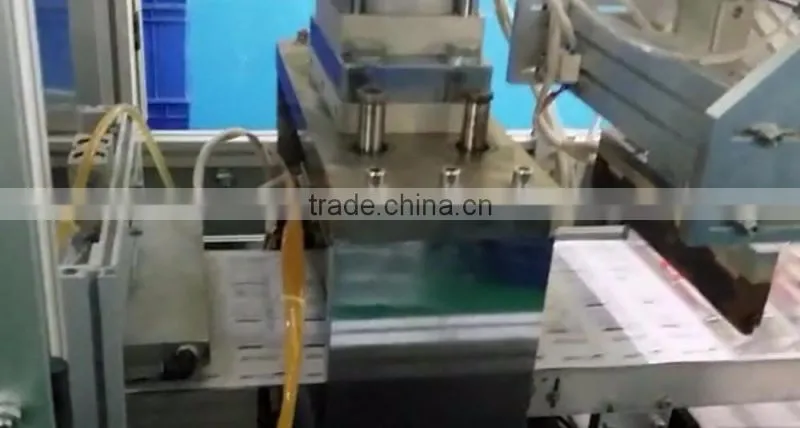

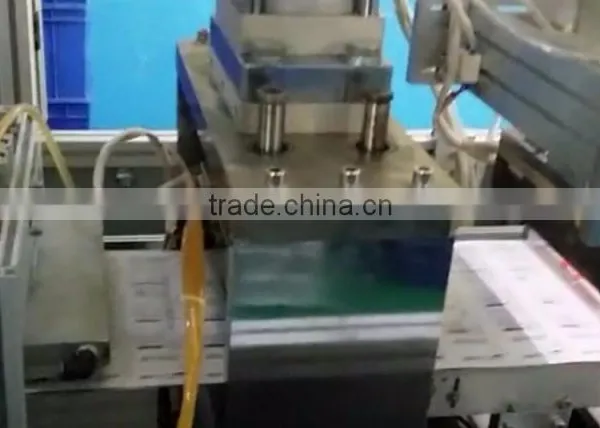

Forming device - large packages let punch effective stretching of PVC, and the vacuum and blowing with, positive pressure and negative pressure molding, so as to ensure rate blister throughout the thickness uniformity, tall and straight and smooth.
Heat seal with the cylinder - when the machine is shut down, the heat sealing plate with the cylinder rod together, to avoid excessive heat caused by excessive packaging waste.
Stroke traction - the use of servo, stepper motor, high precision, the production of products neatly.
Circuit control - equipped with imported PLC and touch screen unified programming controller.
Machine configuration:
The machine adopts the steel frame structure of the metal material, body paint, computer color white, and stability, small ultrasonic, body appearance generous.
All the mechanical parts for CNC precision machining;
Pneumatic components are used in Japan SMC brand;
Positive and negative pressure suction plastic molding system to ensure the smooth, uniform thickness, no water.
Mold using hard oxidation treatment, rust and oxidation, to ensure the life of the mold.
Technical parameter:
Following if the specification can not meet the requirements can be adjusted according to customer requirements, you can also mix manipulator device, the details of negotiable.
Model QO-300A
Punching frequency 12-20 times per minute
Travel range 40mm
Air pressure 0.5Mpa
The air flow rate is more than 0.5 m fand /min
Power total power 50HZ 5KW 380V
PVC maximum formation area of 250*110mm (according to user requirements design)
Maximum size of the 250*280mm card (can be designed according to user requirements)
Outline dimension 4000*1000*1500 (L*W*H)
Main Features
Structure characteristics:
The heating time of PVC is shortened, the molecular structure of the PVC is effectively protected, and the energy is saved, and the heating plate is automatically opened when the machine is shut down, so as to avoid the waste of the PVC.
Forming device - large packages let punch effective stretching of PVC, and the vacuum and blowing with, positive pressure and negative pressure molding, so as to ensure rate blister throughout the thickness uniformity, tall and straight and smooth.
Heat seal with the cylinder - when the machine is shut down, the heat sealing plate with the cylinder rod together, to avoid excessive heat caused by excessive packaging waste.
Stroke traction - the use of servo, stepper motor, high precision, the production of products neatly.
Circuit control - equipped with imported PLC and touch screen unified programming controller.
Machine configuration:
The machine adopts the steel frame structure of the metal material, body paint, computer color white, and stability, small ultrasonic, body appearance generous.
All the mechanical parts for CNC precision machining;
Pneumatic components are used in Japan SMC brand;
Positive and negative pressure suction plastic molding system to ensure the smooth, uniform thickness, no water.
Mold using hard oxidation treatment, rust and oxidation, to ensure the life of the mold.
