CE ISO Certification and CO2 Laser Type Machine Laser Cut Die
- Qingdao
- Credit Card PayPal
You May Like
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Cutting Thickness | 0-12mm | |
| Cutting Area | 600*400mm | Cutting Speed | 500mm/s | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | Lasercut/CorelDraw | Graphic Format Supported | BMP, DXF, PLT | |
| Place of Origin | Shandong, China | Brand Name | Shengtian | |
| Model Number | ST6040 | Certification | CE, ISO | |
| After-sales Service Provided | Overseas service center available |
Product Description

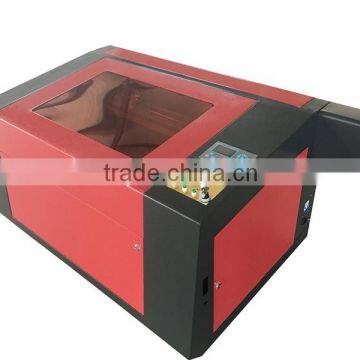

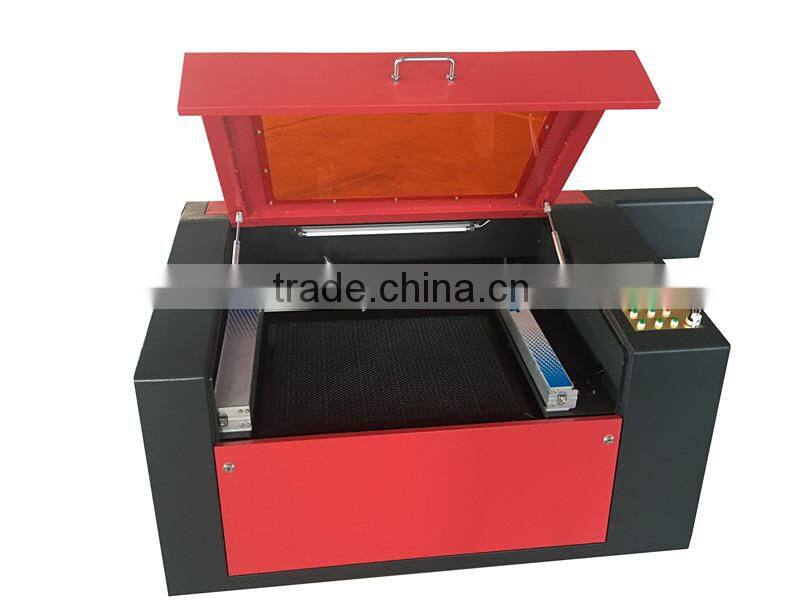

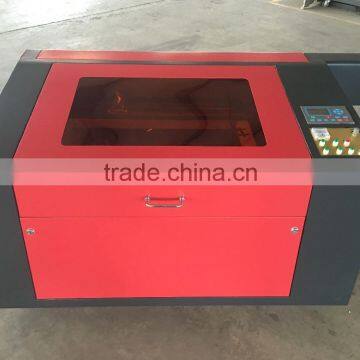

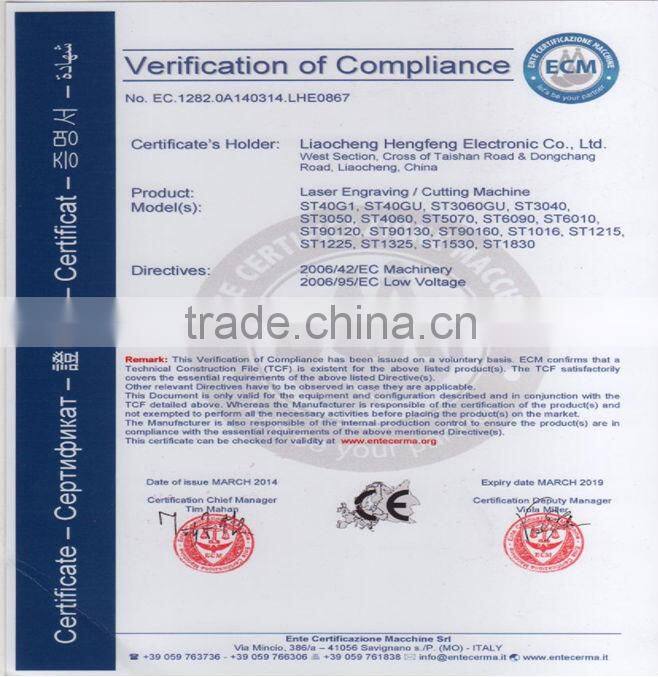

CE,ISO Certification and CO2 Laser Type machine laser cut die
| Model | ST4060 |
| Laser Power | 60W |
| Working area | 400*600mm |
| Laser type | Sealed CO2 glass Laser tube |
| Cutting depth | 12mm acrylic max |
| Engraving speed | 500mm/s max |
| Cutting speed | 50mm/s max |
| Resetting positioning accuracy | <0.01mm |
| Minimum forming character | 1x 1mm |
| Power supply | 220V 10% 50HZ or 110V 10% 50HZ |
| Software supported | CorelDraw, AutoCAD, LASERCUT |
| Picture Formats Supported | PLT/DXF/BMP/AI (Direct output) |
| Cooling system | Water cooling and protection system |

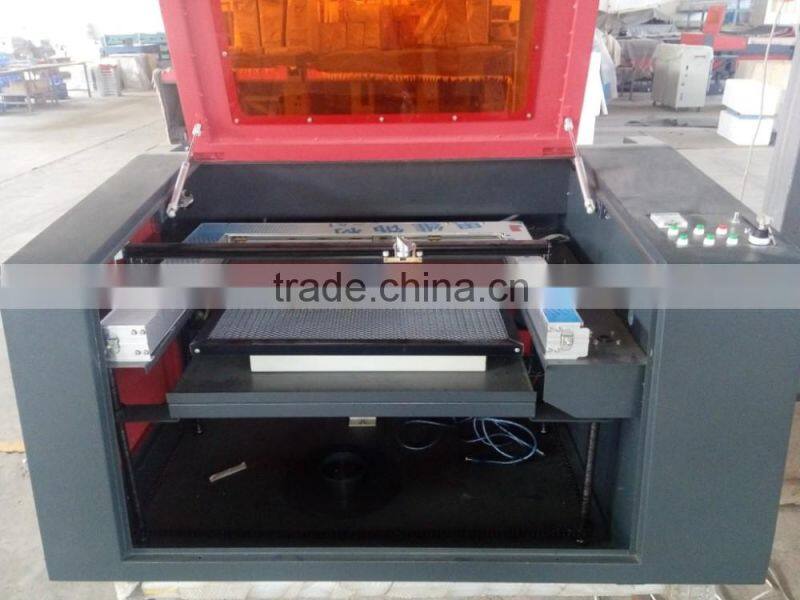

| Working table | Honeycomb table |
| Lifting table | 300mm (Motorized Up and down table) |
| Machine Weight | 120 kgs |
| Gross weight | 150 kgs |
| Machine Dimension | 1300mm *780mm * 550mm |

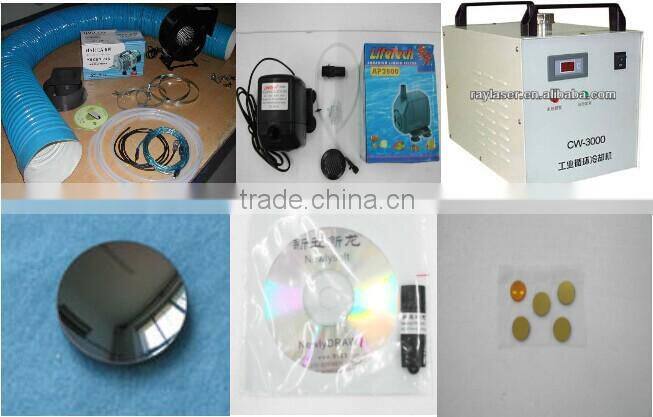

Standard accessories:
Exhaust fan and pipe, Power Cable, USB Cable, Lamp, Water Pump, Air pump, Software CorelLaser and Dongle, Keys
Spare parts recommended:
Laser tube, mirrors & lens
Warranty:
2 years for the whole machine,6 months for laser tube, mirrors & lens

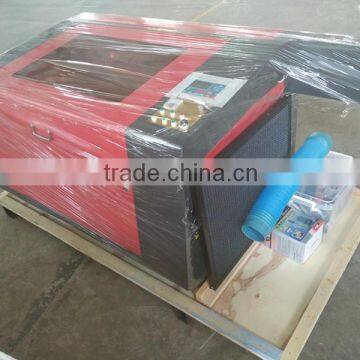

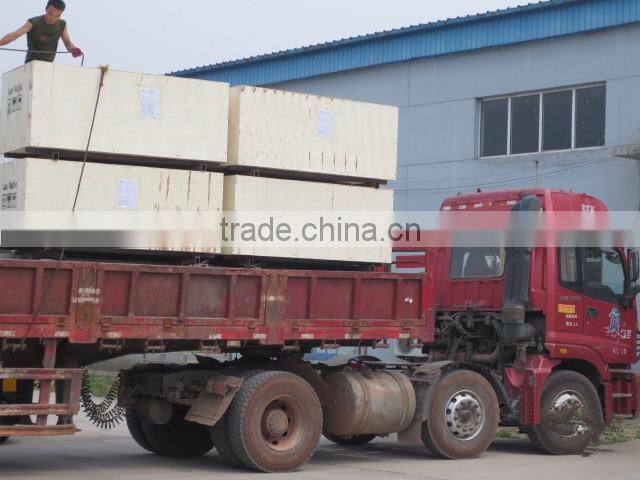

Plywood box/Wooden case (safe and stable)
As a manufacture,we have own Research and development team so as to promise product quality, and specialize in laser engraving machine for ten more years.

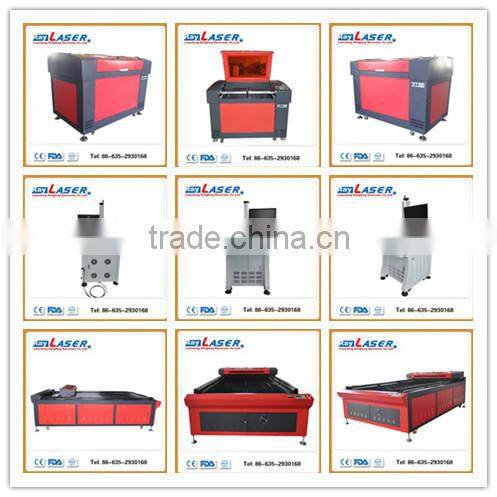

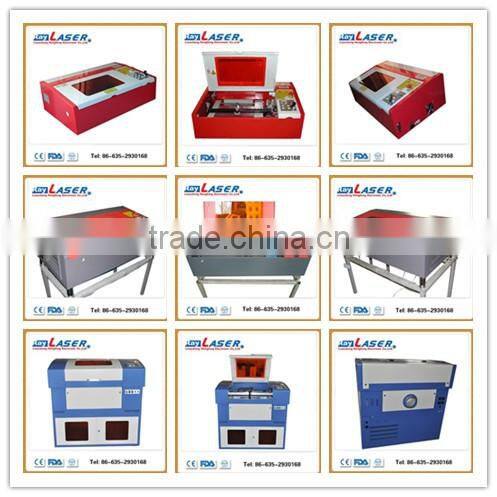

Here are our kinds of model machines.Hope to cooperate with your in near future.
Q: What materials does your machine work ?
A: acrylic, leather, wood, rubber, plastic, cardboard etc non-metal materials.
Q: What depth can your machine cut MAX ?
A: it mainly depends on the material and the laser power, for example, 60w power can cut 12mm acrylic max. for the different material, please check with our sales.
Q: Does your machine run from a laptop or Desktop PC ?
A: both are OK, as long as your operation system is window 2000/XP/vista/win7
Q: Can your machine work in Coreldraw/AutoCAD ?
A: Yes, our laser machine can work in CorelDraw and AutoCAD directly.
and it connects with computer by a USB cable, besides support DSP offline control by U-disk.
Q: What files is the software compatible with ?
A: JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW etc.

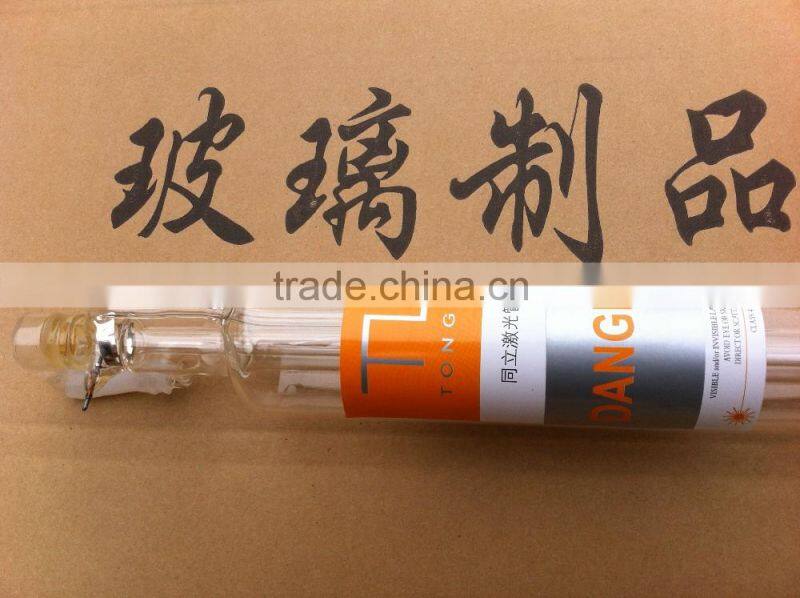

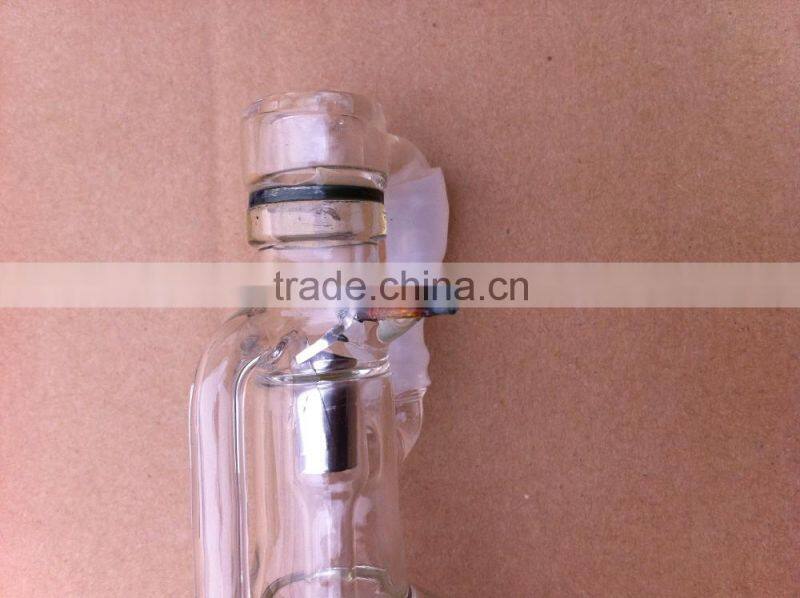

Q: What's the difference between the laser tubes ?
A: usually, the power of the tube is decided by two parameters:
1) the length of the tube, the longer the tube is, the more powerful.
2) the diameter of the tube,the bigger the tube is, the more powerful.
Q: What other models does your company have ?
A: There are 7 main models in our factory, like small laser 260*320mm, 320*600mm, large laser 400*600mm, 600*900mm, 900*1200mm, 1200*1500mm, 1300*2500mm etc. please contact our sales for the proper model.
