large format laser cutter machine for sale
Specification:
Model |
ST1215 |
Laser power |
80w/100w/130w/150w |
Laser tube |
Sealed CO2 glass laser tube |
Working Area |
1200×1500mm |
Lifting table space |
550mm Up and Down adjustable by Motor |
Software supported |
Indirect output : ArtCut, Photoshop |
Direct output : CorelDraw, AutoCAD, Lasercut | |
Main Graphic format |
PLT/DXF/BMP/AI |
Machine Dimension |
2100×1730×1250mm |
Packing Dimension |
2200×1900×1350mm |
Gross Weight |
500 kgs |
Cutting Ability |
(150w Laser Tube) Acrylic Max 30mm |
Engraving Speed |
Max 1200mm/s |
Power Supply |
220V±10% 50HZ 110V±10% 50HZ |
Cooling System |
Water Cooling and protection system |
Standard parts |
Air blower and exhausting pipes, water chiller, air pump, dual red dot pointer, motorized up-down worktable, DSP offline control, knife board, software etc |
Optional Spare Parts |
Rotary Clamp : used to engrave on curve surface |
All the parts
Knife board (Aluminum piece board)
Dual red dot pointer (easy to focus)

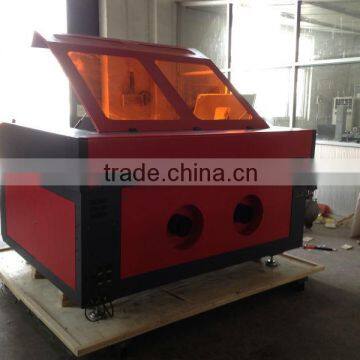

The front door and back door could be opened, so it can cut and engrave
on larger area.

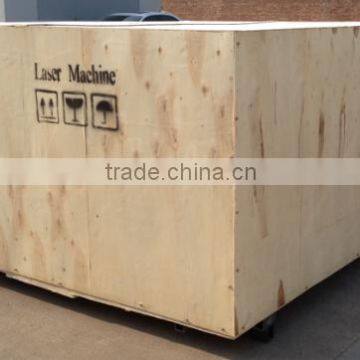

Plywood box package (safe & solid)
other product
Q: Can your machine work in Coreldraw/AutoCAD ?
A: Yes, our laser machine can work in CorelDraw and AutoCAD directly.
and it connects with computer by a USB cable, besides support DSP offline control by U-disk.
Q: What files is the software compatible with ?
A: JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW etc.
Q: What's the difference between the laser tubes ?
A: usually, the power of the tube is decided by two parameters:
1) the length of the tube, the longer the tube is, the more powerful.
2) the diameter of the tube,the bigger the tube is, the more powerful.
Q: What other models does your company have ?
A: There are 7 main models in our factory, like small laser 200*220mm,200*300mm,260*320mm, 320*600mm, large laser 400*600mm, 600*900mm, 900*1200mm, 1200*1500mm, 1300*2500mm etc. please contact our sales for the proper model.
Q: How to confirm the best model ?
A: please check the three questions and the model list below, it will help you to make the choice.
Q1- What's the working material ?
Q2- What's the size of material ?
Q3- What's the Cutting depth ?
