200kW natural gas generator by reliable Chinese gas engine
Specifications for 200kW natural gas generator:
1)400V AC, 50 Hz, 1500 RPM, Power Factor 0.8, 3 phase 4 wire
2)Prime Power 200kw/250kva Standby power 220kw/275kva
3)Natural Gas Engine: Sinotruck T12
4)Alternator: XN274K
5)Genset controller: Smartgen 6110
6)Well performed control system, high quality monitor instrument, with sound and light alarm devices
7)Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
8)Monitor function: speed, water temperature, lub-oil temperature, lub-oil pressure, exhaust temperature
9)Exciting way: brushless
10)Starting mode: 24V DC electric starting system
11)Cooling mode: closed-circuit cooling system
12)Long service life: gas electric generator has a life of over 15 years life time if it is properly operated and maintained.
13)Low operation cost: gas electric generator has a rich reserve with low cost and a high rate of return
| Genset Model | Open Type | SP200GF-Z | |
| Prime Power (kW) | 200 | ||
| Standby Power (kW) | 220 | ||
| Rated current (A) | 360 | ||
| Overall Size(mm) | Length(mm) | 2600 | |
| Width(mm) | 1300 | ||
| Height(mm) | 1880 | ||
| Gross Weight(kg) | 2700 | ||
| Gas Engine | Model | T12 | |
| Type | water-cooled, 4-stroke, spark plug ignition | ||
| Rated Power(kW) | 225 | ||
| Intake Type | Turbocharged | ||
| No.of Cylinder | 6L | ||
| Bore x Stroke(mm) | 126*150 | ||
| Lub oil Consumption(g/kw.h) | 1.6 | ||
| Gas consumption | 0.5-0.7Nm³/kw.h | ||
| Starting method | DC 24V Electric starter | ||
| Governing Type | Electric governor | ||
| Alternator | Model | 274K | |
| Brand | Stamford technology alternator | ||
| Rated Power(kW) | 200 | ||
| Power Efficiency | 91.30% | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||

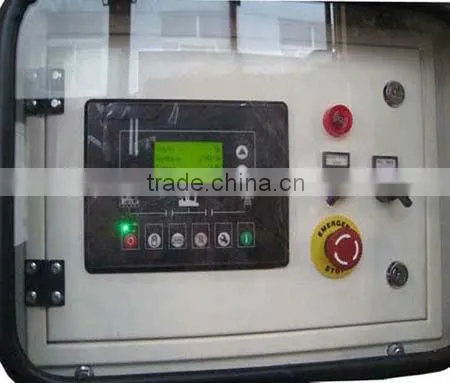

Control system of 200kW natural gas generator:
a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
Standard supply scope of 200kW natural gas generator:
a) Diesel engine with all accessories, 2 filters, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air filter, oil filter
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting battery and battery line
k) Set shock absorber
l) High-efficient silencer
Warranty of 200kW natural gas generator :
1. The main parts will be covered for 12months or 1500 hours whichever comes first, since acceptance.
2. Spare parts under warranty will be sent for free. We charge the spare parts cost when out of warranty .
3. Daily consumed materials/components and damage due to wrong operation and/or lack of maintenance are not included in the warranty.

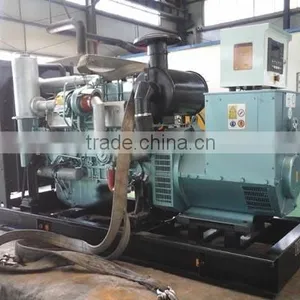

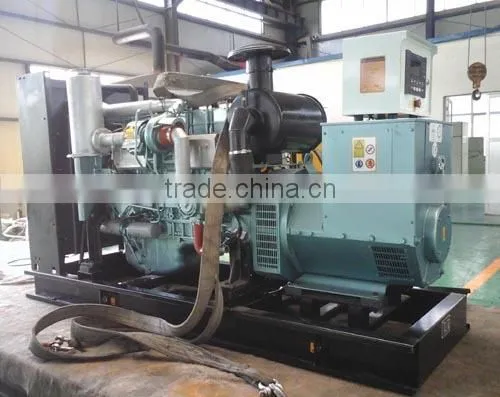

Pictures of 200kW natural gas generator:
