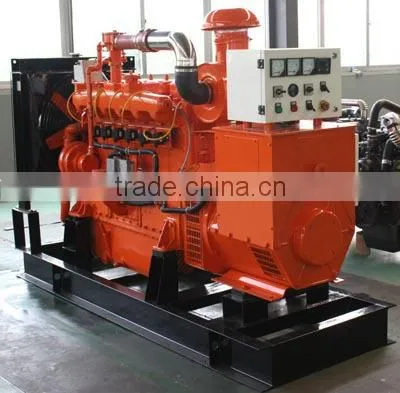

Help CenterHOT ! 150kw Biogas Generator With Cummins Engine
Related Products
-
200kw Gas Generator Fueled by Natural GasUS$ 20,000 - 21,000MOQ: 1 Set -
Environment Friendly 150kw Natural Gas Generator With Cummins EngineUS$ 30,000 - 31,000MOQ: 1 Set
-
Metan Gas Generator 120kw From Leading ManufacturerUS$ 13,000 - 20,000MOQ: 1 Set
-
500kVA Gas Generator With Cummins EngineUS$ 230,000 - 250,000MOQ: 1 Set
-
Easy Operate, 160kW Natural Gas Generator Sinotruck EngineUS$ 22,000 - 27,600MOQ: 1 Set
1. 150kw biogas generator feature
1) 150kw biogas generator gas consumption: 0.28Nm³/kw.h
2) 150kw biogas generator running cost lower.
3) 150kw biogas generator can be installed on your site.
4) We supply you spare parts during the whole service life for 150kw natural gas generator.
5) 150kw biogas generator adopt Cummins engine block, the quality is very strong. Also it is easy for customer to get maintenance spare parts.
6) 150kw biogas generator adopt advanced Hall ignition sensor and highly quality USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
7) 150kw biogas generator adopt ComAp or Deepsea Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
8) The gas inlet pressure for 150kw biogas generator is 2~7kPA.
9) 150kw biogas generator with electrical mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
2. 150kw biogas generator specification
| 150KW Biogas Generator | |||
| Genset Model | Open Type | SPT150GF-Z | |
| Prime Power (kW) | 150 | ||
| Standby Power (kW) | 165 | ||
| Rated current (A) | 270 | ||
| Overall Size(mm) | Length(mm) | 3060 | |
| Width(mm) | 1350 | ||
| Height(mm) | 1800 | ||
| Gross Weight(kg) | 3200 | ||
| Gas Engine | Model | SP12V135DZ | |
| Type | water-cooled, 4-stroke, spark plug ignition | ||
| Rated Power(kW) | 170 | ||
| Intake Type | Turbocharged | ||
| No.of Cylinder | 12.V | ||
| Bore x Stroke(mm) | 135*150 | ||
| Gas consumption(m³/kw.h) | 0.5 | ||
| Lub oil Consumption(g/kw.h) | 1.6 | ||
| Starting method | DC 24V Electric starter | ||
| Governing Type | Electric governor | ||
| Alternator | Brand | Stamford technology alternator | |
| Model | 274G | ||
| Rated Power(kW) | 150 | ||
| Voltage Regulation | automatic | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
3. Our advantage on 150kw biogas generator
1. Professional biogas generator manufacturer, with 35000 square meters factory.
2. Decades’ years of manufacturing and exporting experience
3. Adopt International quality standards and USA technology to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support
6. Advanced production line with skilled workers
1. Our 150kw biogas generator powered by Cummins engine, Yuchai engine, Deutz engine, or China engine.
2. Our 150kw biogas generator exported to all over the world, with low gas consumption, easy operation, overhall time more than 25000hours.
4. 150kw biogas generator electrical feature
Voltage: 400/230V, 220/127V,440/254V, 480/277V, etc |
Frequency: 50Hz/ 60Hz Speed: 1500r.p.m / 1800 r.p.m |
Power Factor: 0.8(lagging) |
Protection Standard: IP23 |
Model of Connection: 3 phase 4 lines /1 phase |
Insulation Grade: H |
Frequency Drop(%): ≤ 0.5 |
Transient state frequency deviation(%):(advertised power ) +10~-7 |
Frequency Recovery Time(S): ≤ 3 |
Voltage Recovery Time(S): ≤4 |
Waveform Distortion(%): ≤5 |
5. 150kw biogas generator photos
Test before delivery for 150kw biogas generator

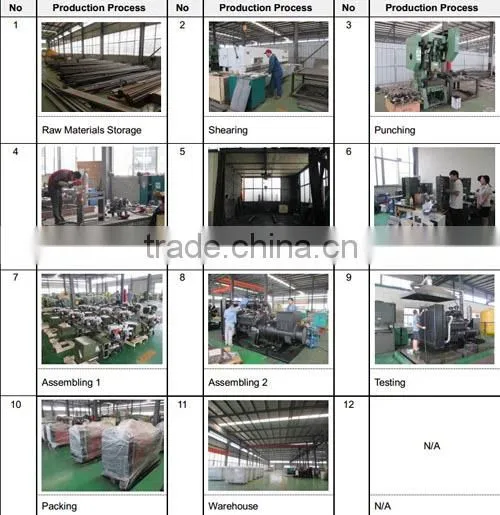

Production of 150kw biogas generator
Packaging and shipping of 150kw biogas generator

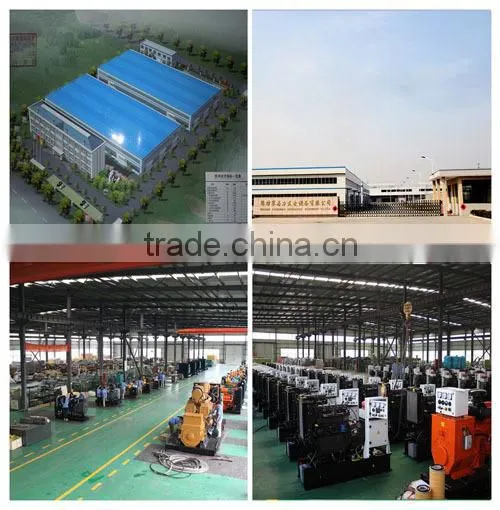

Our factory 35000square meters
If there is any problem, pls contact with me by email or online. Thanks.
+Whatapp / + viber : +86 15095247272
