1. Metan gas generator 120kw feature
1) Metan gas generator 120kw gas consumption: 0.28Nm³/kw.h
2) Running cost of Metan gas generator 120kw is lower.
3) Our engineer can install the Metan gas generator 120kw on your site.
4) We supply you spare parts during the whole service life.
2. Metan gas generator 120kw specification
| Metan Gas Generator 120kw | |||
| Genset Model | Open Type | SPT120GF | |
| Prime Power (kW) | 120 | ||
| Standby Power (kW) | 132 | ||
| Rated current (A) | 216 | ||
| Overall Size(mm) | Length(mm) | 2600 | |
| Width(mm) | 1200 | ||
| Height(mm) | 1800 | ||
| Gross Weight(kg) | 2600 | ||
| Gas Engine | Model | SP6140ADT | |
| Brand | Wudong | ||
| Type | water-cooled, 4-stroke, spark plug ignition | ||
| Rated Power(kW) | 130 | ||
| Intake Type | Turbocharged | ||
| No.of Cylinder | 6.L | ||
| Bore x Stroke(mm) | 140*160 | ||
| Gas consumption(m³/kw.h) | 0.3 | ||
| Lub oil Consumption(g/kw.h) | 1.0 | ||
| Displacement | 14.8L | ||
| Starting method | DC 24V Electric starter | ||
| Governing Type | Electric governor | ||
| Alternator | Model | 274FS | |
| Rated Power(kW) | 120 | ||
| Voltage Regulation | ±1 | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
3. Our advantage on metan gas generator 120kw
1. Professional metan gas generator manufacturer, with 35000 square meters factory.
2. Decades’ years of manufacturing and exporting experience
3. Adopt International quality standards, to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support
6. Advanced production line with skilled workers
4. Metan gas generator 120kw feature
Voltage: 400/230V, 220/127V,440/254V, 480/277V, etc |
Frequency: 50Hz/ 60Hz Speed: 1500r.p.m / 1800 r.p.m |
Power Factor: 0.8(lagging) |
Protection Standard: IP23 |
Model of Connection: 3 phase 4 lines /1 phase |
Insulation Grade: H |
Frequency Drop(%): ≤ 0.5 |
Transient state frequency deviation(%):(advertised power ) +10~-7 |
Frequency Recovery Time(S): ≤ 3 |
Voltage Recovery Time(S): ≤4 |
Waveform Distortion(%): ≤5 |
1. Our metan gas generator 120kw powered by Cummins engine, Yuchai engine, Deutz engine, or China engine.
2. Our metan gas generator 120kw exported to all over the world, with low gas consumption, easy operation, overhall time more than 25000hours.
5. metan gas generator 120kw photos

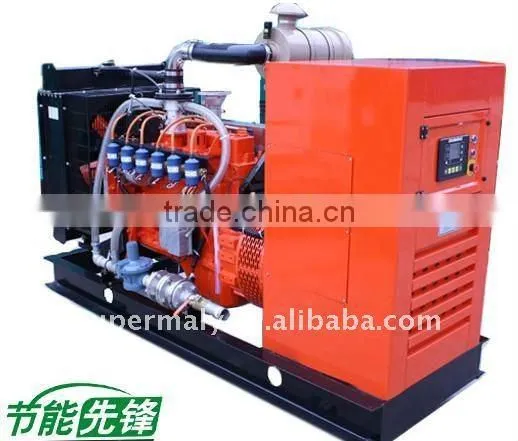

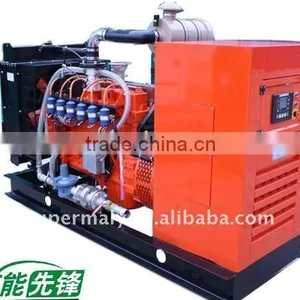

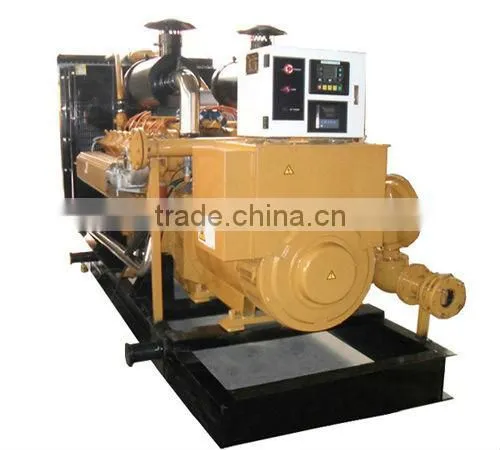

Detailed photo of metan gas generator 120kw
Gauge, Altronic ECU, IMPCO mixer, USA gas reducing valve
|
|
|
|
|
|
Test before delivery for metan gas generator 120kw
Packaging and shipping of Metan gas generator 120kw
If there is any problem, pls contact with me by email or online. Thanks.
