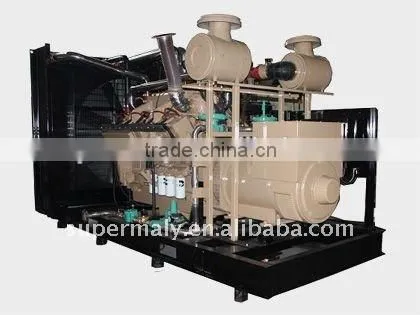

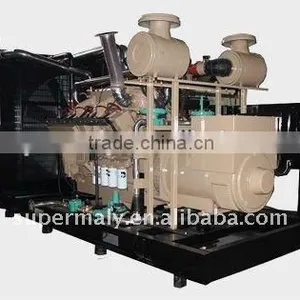

500kVA Gas generator with Cummins engine
Parameters:
| Genset | Gas Engine | Alternator | ||||
| Model | Prime Power (kW/kVA) | Model | No.of Cylinder | Bore x Stroke (mm) | Rated Fuel Consumption (M3/kWh) | Model |
| SPT500GF | 400/500 | NGK38 | 12.V | 159*159 | 0.36 | HCI544FS |
Features:
1)400V AC, 50 Hz, 1500 RPM, Power Factor 0.8, 3 phase 4 wire
2)Prime Power 400kw/500kva Standby power 440kw/550kva
3)Natural Gas Engine: NGK38, with Kingbond system and Altronic ignition unit, IMPCO mixer,
Bosch throttle, Fisher regulator
4)Alternator: HCI544FS
5)Genset controller: Smartgen HGM6110
6)Well performed control system, high quality monitor instrument, with sound and light alarm devices
7)Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
8)Monitor function: speed, water temperature, lub-oil temperature, lub-oil pressure, exhaust temperature
9)Exciting way: brushless
10)Starting mode: 24V DC electric starting system
11)Cooling mode: closed-circuit cooling system
12)Long service life: gas electric generator has a life of over 15 years life time if it is properly operated and maintained.
13)Low operation cost: gas electric generator has a rich reserve with low cost and a high rate of return
Warranty:
1. The main parts will be covered for 12months or 1500 hours whichever comes first, since acceptance.
2. Spare parts under warranty will be sent for free. We charge the spare parts cost when out of warranty .
3. Daily consumed materials/components and damage due to wrong operation and/or lack of maintenance are not included in the warranty.

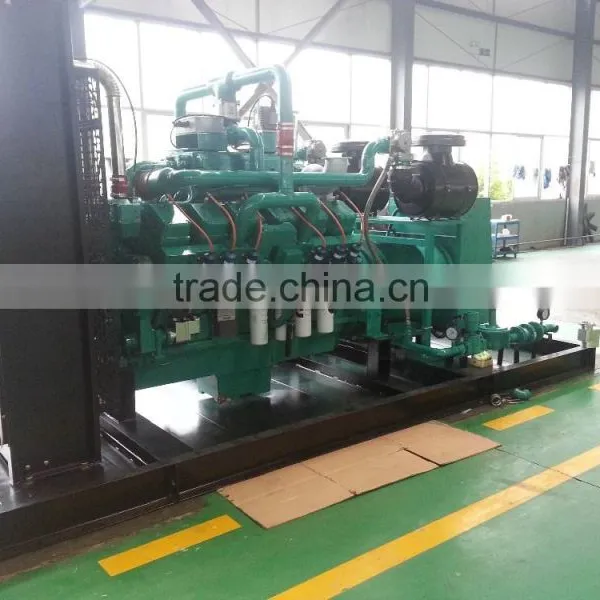

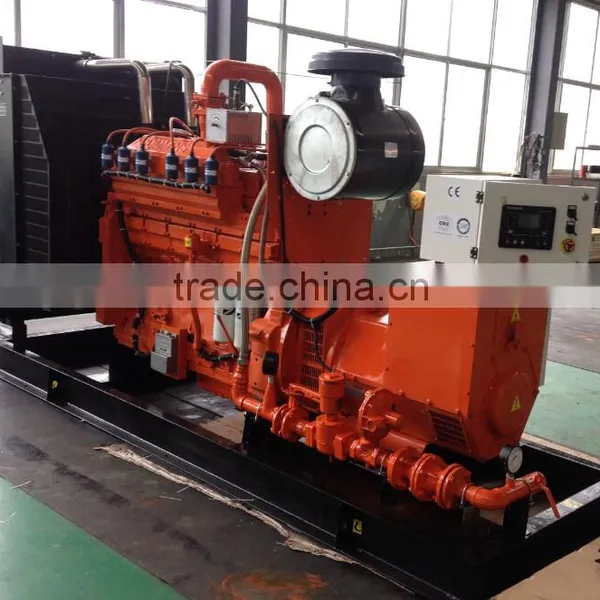

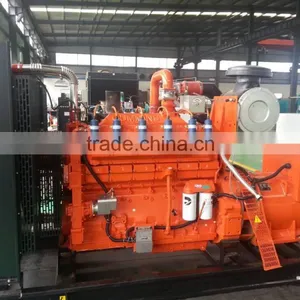

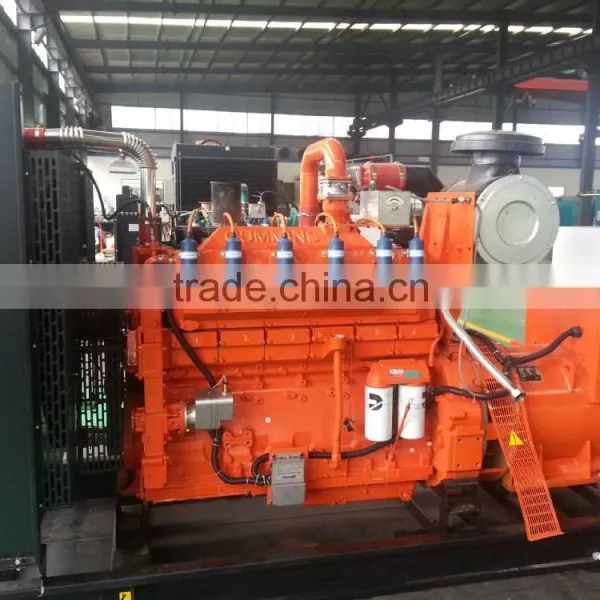

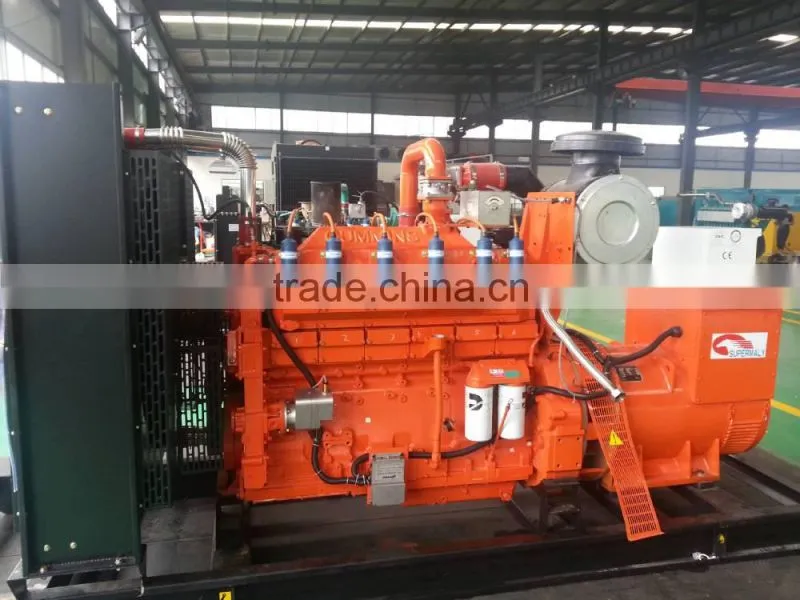

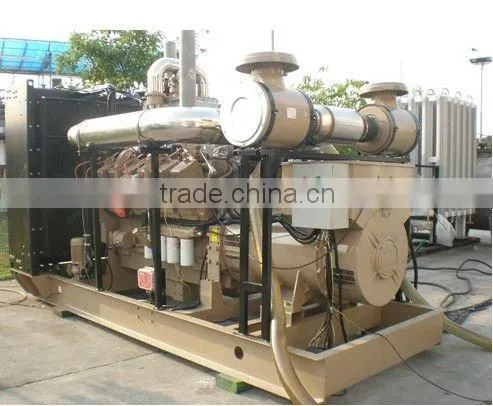

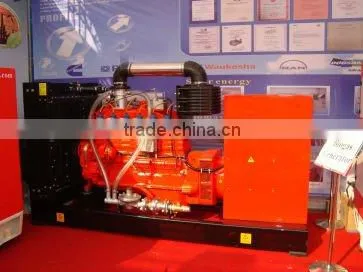

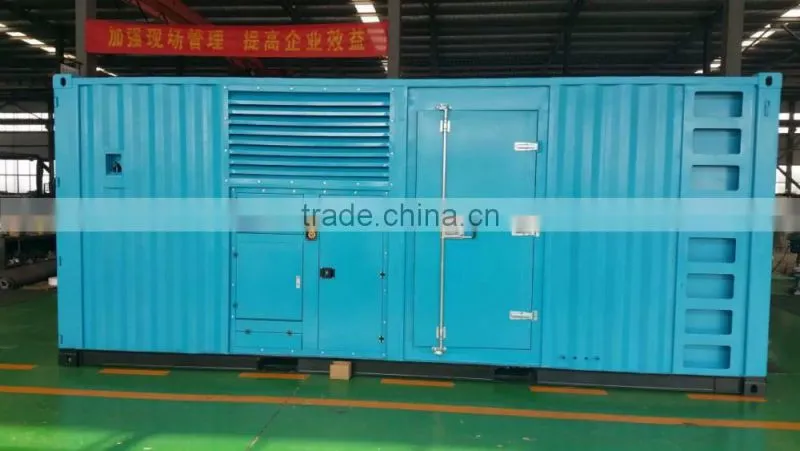

Pictures:
