AEEF Three Phase Induction Motor

FOB Price

US$ 26 - 743 / Piece

1 Piece(Min. Order)

Port FUZHOU CHINA
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Twain	Model Number	AEEF
Type	Asynchronous Motor	Frequency	50HZ, 60HZ
Output Power	0.55-55KW	Protect Feature	Totally Enclosed
Phase	Three-phase	Certification	CCC, CE
AC Voltage	Other, 380V	Place of Origin	Fujian, China
Efficiency	IE 1

Product Description

Specifications

AEEF Three Phase Induction Motor
1.High Effciency synchronous motor
2.IEC, CE standard.
3.Be maintained very conveniently

AEEF Three Phase Induction Motor

DESCRIPTION

AEEF series motor is three-phase, totally enclosed and fan-cooled electric motor with squirrel cage, IP54 Insulation, Class B(other voltages and cycles or insulation Class F are available if request.)

BENEFITS

1. Be made of selected quality material.
2. Nice appearance,outstanding performance,little vibration,little weight,low noise,reliable operation and safety.
3. Be maintained very conveniently and simple construction..
4. Water dust and vermin resistant..
5. Electricity saving.
6. Superior life.
7. Corrosion resistant
8. High efficiency.

OUR ENTERPRISE SPRIIT

The Market is the Core and The Quality is the Life.We welcome worldwide merchants to join us for common development !

FAQ

1. Q: What is your MOQ of this item?

A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.

2. Q: Is it all right to make customers’own brand name?

A: Sure, we can be your OEM manufacturer with your authorization of brand.

3. Q: What are your payment terms?

A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

4. Q: How long is your warranty?

A: One year after receive B/L.

5. Q: What is the delivery time?

A: 25-30 days after receiving your L/C or T/T deposit.

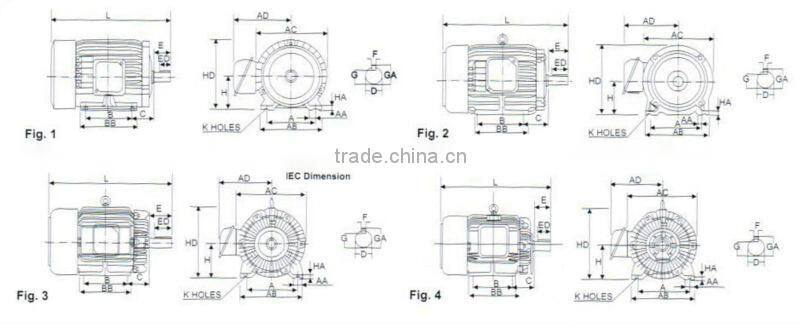

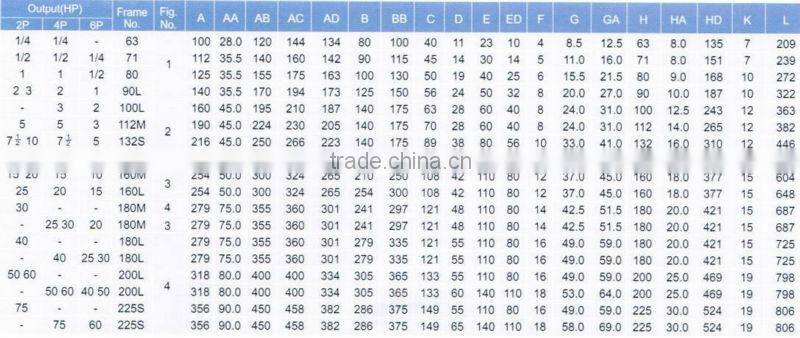

INSTALLATION SIZE & OVERALL DIMENSION

TECHNICAL DATA

Type	Power		Voltage (V)	Current (A)	Speed (r/min)	Eff (%)	Power Factor	Starting torque Rated torque	Starting current Rated current	Max torque Rated torque
Type	HP	kW	Voltage (V)	Current (A)	Speed (r/min)	Eff (%)	Power Factor	Starting torque Rated torque	Starting current Rated current	Max torque Rated torque
AEEF90S-6	1	0.75	380	2.3	910	72.5	0.70	2.0	5.5	2.2
AEEF90L-6	1.5	1.1	380	3.2	910	73.5	0.72	2.0	5.5	2.2
AEEF100L-6	2	1.5	380	6.4	940	77.5	0.74	2.0	6	2.2
AEEF112M-6	3	2.2	380	5.6	940	80.5	0.74	2.0	6	2.2
AEEF132S-6	4	3	380	7.2	960	83	0.76	2.0	6.5	2.2
AEEF132M1-6	5.5	4	380	9.4	960	84	0.77	2.0	6.5	2.2
AEEF132M2-6	7.5	5.5	380	12.6	960	85.3	0.78	2.0	6.5	2.0
AEEF160M-6	10	7.5	380	17.0	970	86	0.78	2.0	6.5	2.0
AEEE160L-6	15	11	380	24.5	970	87	0.78	2.0	6.5	2.0
AEEF180L-6	20	15	380	31.4	970	89.5	0.81	1.8	6.5	2.0
AEEF200L1-6	25	18.5	380	37.7	970	89.8	0.83	1.8	6.5	2.0
AEEF200L2-6	30	22	380	44.6	970	90.2	0.83	1.8	6.5	2.0

NOTE

The voltage and frequency could be made according to your requirement.
If you have any requirements, please contact us.

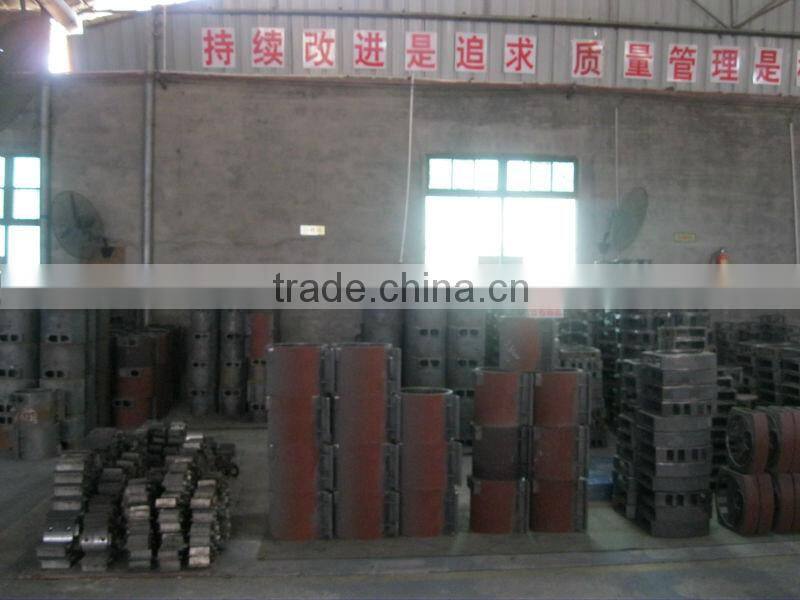

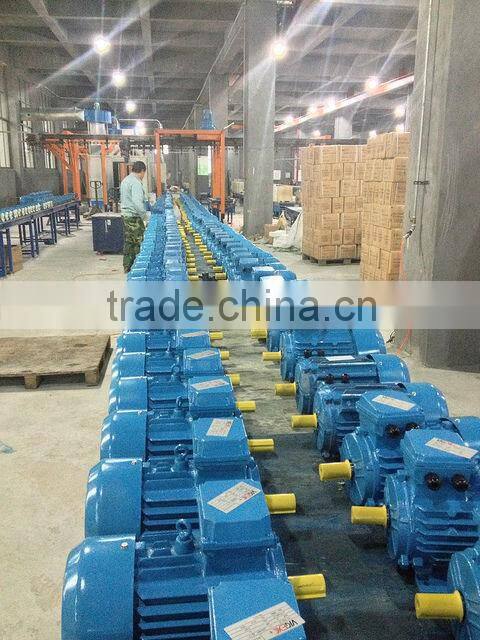

OUR FACTORY
