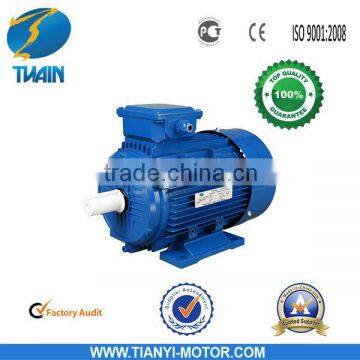

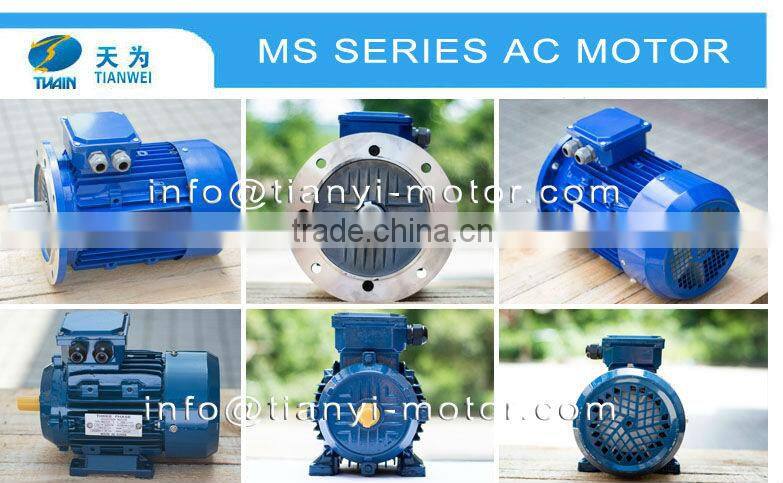

MS Three Phase Aluminum Shell Motor

Specifications

MS Three Phase Aluminum Shell Motor
1. OEM,Factory Price
2. Fast Delivery Time
3. One Year Warranty
4. ISO,CE,SGS,etc.

MS Three Phase Aluminum Shell Motor



Product Overview



DESCRIPTION:

1.MS Series Aluminum Housing Three Phase Induction Motor adopts the latest design and high quality material and are conform to the IEC standard in function, appearance, output and other requirements.
2.The efficiency of MS motor meets EFF2 standard in E. U., and can reach the EFF1 standard if requested. MS motor has a lot of advantages including high efficiency, energy saving, low noise, little vibration, light weight, small volume, reliable operation, up-to-date appearance, convenient operation and maintenance.
3.MS motor is died casted into mounding shape by aluminum-alloy. The base foot can be removable. Various mounting types are available for MS motor.
4.MS motor is suitable for common working environment and machinery without special requirement, like air-compressor, pump, fan, medical apparatus and instruments, small machines etc.



FEATURES:

1 Perfect performance and low noise

2 Slight vibration and reliable running

3 Good performance and small volume

4 Light weight and easy maintenance

5 Conform with ISO and CE standard



SPECIFICATION:

1.Conform to the IEC standard
2.Be made of selected quality materials, latest design in entirety
3.Good performance, low noise, little vibration, and safety and reliable operation
4.Nice appearance, light weight
5.Be maintained very conveniently, simple construction
6.Be used for general drive



OPERATING CONDITIONS:

Ambient temperature : -15°C≤θ≤40°C

Altitude : not exceed 1000m

Rated frequency : 50Hz,60Hz

Rated voltage:380V, Between 220V and 760V

Protection class : IP54, IP55

Insulation class: B, F,H

Cooling method : IC0141



OUR FACTORY ADVANTAGES:

1.Prompt Quotation.

2.Timely Delivery.

3.100% Tested.

4. Most Spare Parts are Produced By Ourself.

5.Strictly and Perfect Management is Guaranteed For Production.

6.Have Ability To Design The Products Based On Your Original Samples.



TRADE INFORMATION:

1.Brand Of Products: Our own manufacturer of Twain brand or OEM with your authorization of brand.

2.Warranty Time: One Year against B/L.

3. Nearest Port Of Shipment: Fuzhou Port.

4.MOQ: 1 Pcs Or 1 Set to test sample quality.

5.Payment Terms: 30% T/T in advance, the balance  before shipment or L/C at sight.

6.Delivery Time: 10 days to 30 days after received your deposit.



TECHNICAL DATAS:

Model	Output	Voltage	Frequency	Current	Eff		Power Factor	Speed
	(KW)	(V)	(Hz)	(A)	100	75		(r/min)
					(%)	(%)
MS631-2	0.18	380	50	0.53	65	63.1	0.8	2720
MS632-2	0.25	380	50	0.69	68	65.1	0.81	2720
MS631-4	0.12	380	50	0.42	57	56.1	0.72	1310
MS632-4	0.18	380	50	0.62	60	58.5	0.73	1310
MS711-2	0.37	380	50	0.99	70	69	0.81	2740
MS712-2	0.55	380	50	1.4	73	71.2	0.82	2740
MS711-4	0.25	380	50	0.79	65	62.4	0.74	1330
MS712-4	0.37	380	50	1.12	67	65.3	0.75	1330
MS801-2	0.75	380	50	1.78	76.3	74.3	0.84	2836
MS802-2	1.1	380	50	2.56	77.8	75.9	0.84	2840
MS801-4	0.55	380	50	1.52	71.4	69.5	0.76	1410
MS802-4	0.75	380	50	2	73.8	72.1	0.77	1415
MS90S-2	1.5	380	50	3.43	79.1	77.2	0.84	2840
MS90L-2	2.2	380	50	4.85	81	80	0.75	2840
MS90S-4	1.1	380	50	2.86	75.8	73.8	0.77	1425
MS90L-4	1.5	380	50	3.69	78.3	76.1	0.79	1425
MS90S-6	0.75	380	50	2.28	69.3	67.6	0.72	918
MS90L-6	1.1	380	50	3.16	72.5	70	0.73	920
MS100L-2	3	380	50	6.3	83.2	81.9	0.87	2845
MS100L1-4	2.2	380	50	5.12	80.6	78	0.81	1430
MS100L2-4	3	380	50	6.62	82.3	80	0.82	1430
MS100L-6	1.5	380	50	3.98	76.4	74.1	0.75	940
MS100L1-8	0.75	380	50	2.39	71.2	67	0.67	698
MS100L2-8	1.1	380	50	3.32	73	69	0.69	700
MS112M-2	4	380	50	8.1	85.2	84	0.88	2890
MS112M-4	4	380	50	8.79	84.3	82.9	0.82	1440
MS112M-6	2.2	380	50	5.53	79.6	77.3	0.76	975
MS112M-8	1.5	380	50	4.39	75.2	73.8	0.69	705
MS132S1-2	5.5	380	50	11	86	84	0.88	2890
MS132S2-2	7.5	380	50	14.9	87.2	85.8	0.88	2890
MS132S-4	5.5	380	50	11.8	85.5	83	0.83	1450
MS132M-4	7.5	380	50	15.6	87.1	84	0.84	1455
MS132S-6	3	380	50	7.36	81.5	79	0.76	953
MS132M1-6	4	380	50	9.66	82.9	80.2	0.76	955
MS132M2-6	5.5	380	50	12.9	84.6	82.1	0.77	960
MS132S-8	2.2	380	50	6	78.2	77	0.71	710
MS132M-8	3	380	50	7.86	79.4	78.4	0.73	710
