Specification of diesel generator 80kw with engine 6BT5.9-G2 silent diesel generator
♦ Diesel Genset with ISO9001/ISO14001
♦ Cummins Diesel engine 6BT5.9-G2
♦ Equipped with Alternator Stamford/ Marathon/Leroy Somer
♦ The control panel is Deep sea/ Smartgen/Harsen
♦ The frequency is 50HZ/60HZ,The rated speed is 1500rpm/1800rpm
♦ The insulation class is IP23/H, self-exciting, AC brushless
Genset Specification:
| Model Genset | SC80GF |
| Frequency | 50HZ |
| Voltage | 415V |
| Phase | 3 |
| Type Genset | Supersilent |
| Control Method | Four Production |
| Battery | SWG |
| Starting Method | DV24V |
| Type Governor | Electric |
| Type Package | Bare |
Alternator Specification :
| Model | Rated power kw/kva | Power effiency | Voltage regulation | Excitation type | Insulation class |
| XN274C | 80/100 | 91.7% | Within +1 or -1 | Brushless | H |

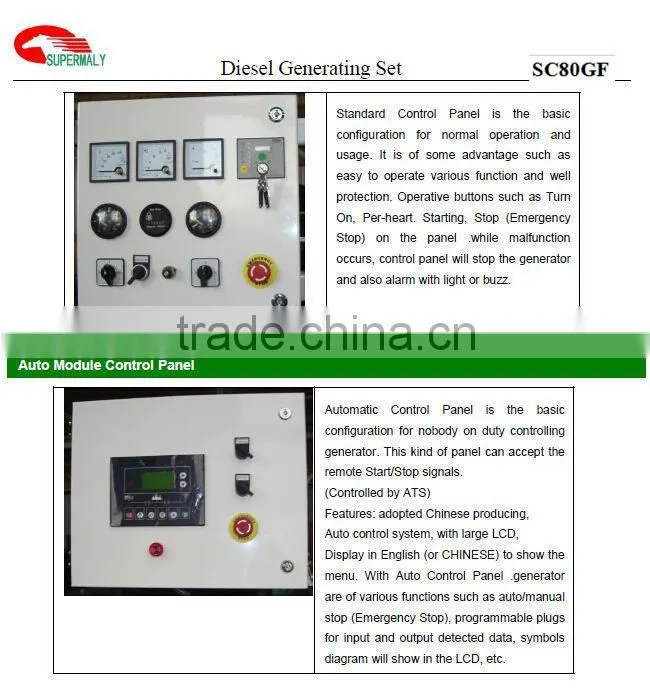

Control Panel Feature:
a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
Supermaly Testing Equipment
Here you can easily look that how is our equioment check our generators .There are many buttons , it can control and well know how runs our generators .
Supernaly Certificate
With many year's efforts,We not only the reliable factory ,but also the credit partner
After sales promise:
1. Since gen-set reached the agreed destination, its main parts will be guaranteed
within 12 months or 1500 hours.
2. We give technical guide all the service life. In the warranty days, we send spare
parts for free. After warranty, we take the spare parts cost.
3. Daily consumed components, wrong operating, lack of maintenance are not include
in the quality guarantee.
