Big power electrical governor type UK Engine diesel generator 1MV for sale Specification :
1.1MV diesel generator water cooled uk engine Sale with stamford, Leroy Somer, Marathon ,and China brand alternator .
2.We supply spare parts during the whole service life.
3.One year warranty or 1500hours .Ane we are manufacturer with 2 factories in weifang city ,after sale service guranteed.
4.Perkins ,Cummins engine 750kva with global warranty .

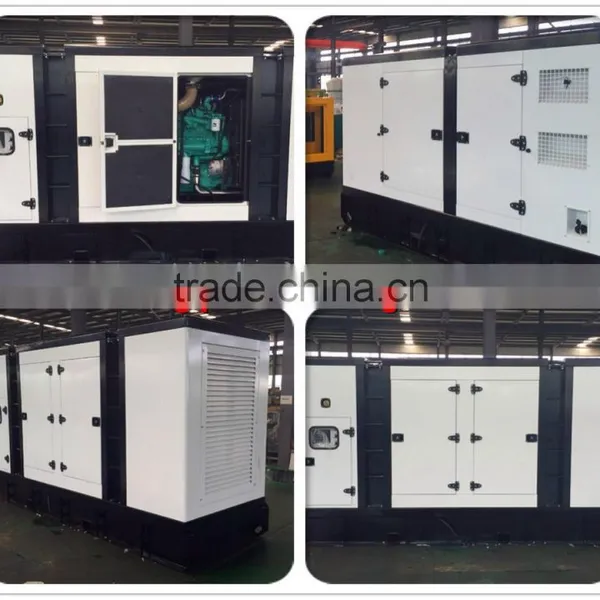

5.Open frame type /Silent type /weatherproof type /Trailer type /Container type at your option.
| Genset Model | Open Type | SP1000GF | ||||
| Silent Type | SP1000GFS | |||||
| Prime Power(kW/kVA) | 1000/1250 | |||||
| Standby Power(kW/kVA) | 1100/1375 | |||||
| Diesel Engine | Model | 4012-46TWG2A | ||||
| Type | water-cooled,inline, 4-stroke,direct injection ,wet cylinder liner | |||||
| Rated Power(kW) | 1113 | |||||
| Intake Type | Turbocharged | |||||
| No.of Cylinder | 12.V | |||||
| Bore x Stroke(mm) | 160x190 | |||||
| Compression Ratio | 13.6:1 | |||||
| Mechanical Governor Rate | 5% | |||||
| Electronic Governor Rate | 1% | |||||
| Noise Level (dBA) | 103 | |||||
| Exhaust Temperature(°C) | 422 | |||||
| Lub oil Capacity(L) | 177 | |||||
| Rated Fuel Consumption(L/h) | 235 | |||||
| Alternator | Model | XN6G | ||||
| Rated Power(kW/kVA) | 1000/1250 | |||||
| Power Efficiency | 95.2% | |||||
| Voltage Regulation | ±1.0 | |||||
| Excitation Type | Brushless | |||||
| Insulation Class | H | |||||
| Overall Size(mm) | Length | 5000 | ||||
| Width | 1870 | |||||
| Height | 2350 | |||||
| Gross Weight(kg) | 8000 | |||||
Big power electrical governor type UK Engine diesel generator 1MV for saleControl Panel :
a)Automatic alarm system:The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat,the water is over temperature,the oil pulls down,over speed,over load and over current.
b)Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2)Starting system :starter is used to start engine
3)Short circuit protection :MCCB air switch
4)Cooling system :combined cooling water tank fitted to meet the requirment of radiation at ambient temperature 40
5)Filter system :Oil,fuel and air filter
6)Accessories:exhaust elbow,bellow ,muffler
A. Supermaly advantage:
1. Professional diesel generator manufacturer, not trader
2. Decades’ years of manufacturing and exporting experience
3. Adopt International quality standards, to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support ,quality checking strictly and 24hrs service team
6. Advanced production line with skilled workers
7.Some in stock and quick delivery
8.Choosing the reliable quality and famous brand for each parts
