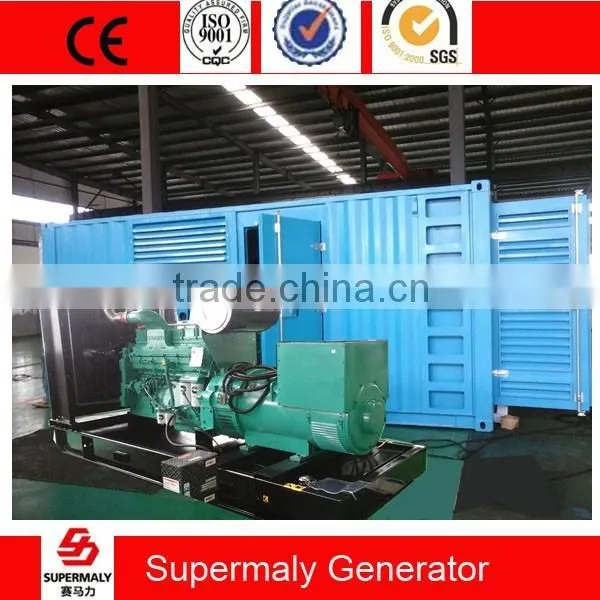

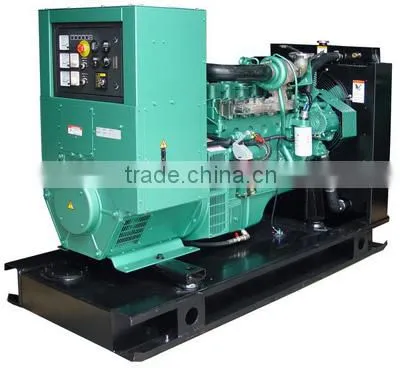

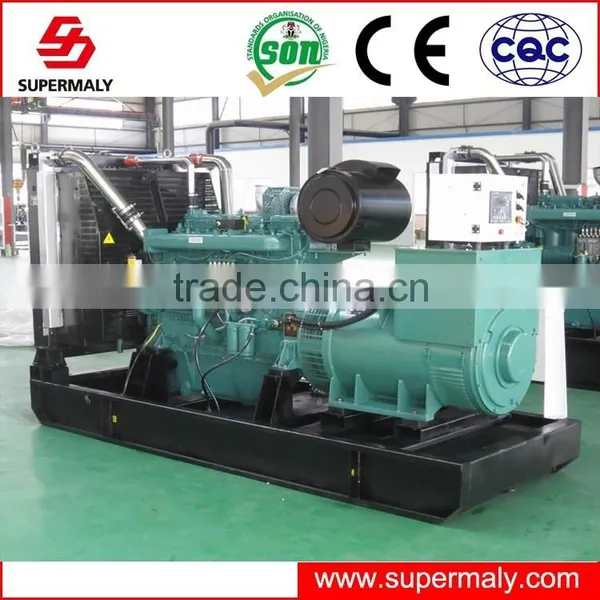

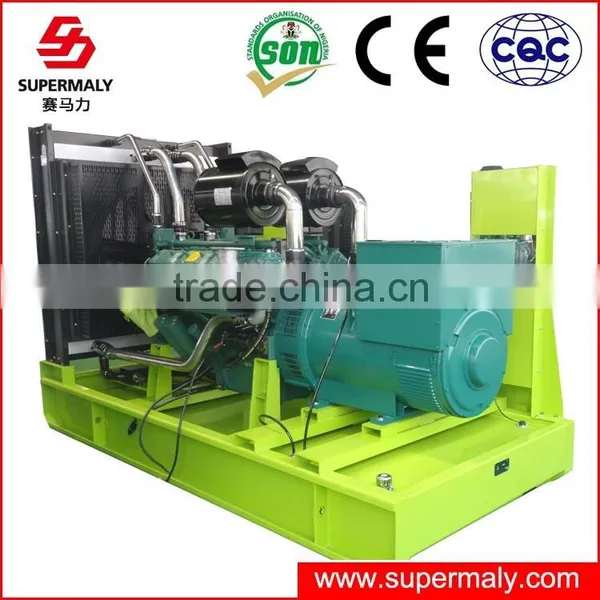

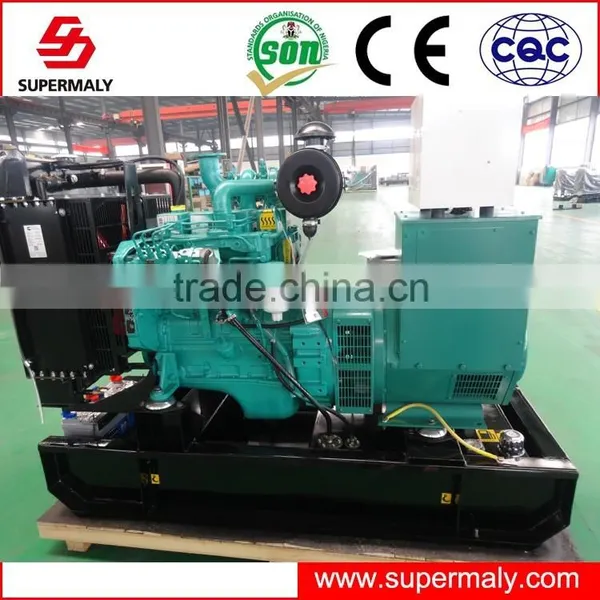

Photos of 800kva generator diesel 3 phase by sale with engine KTA38-G2B

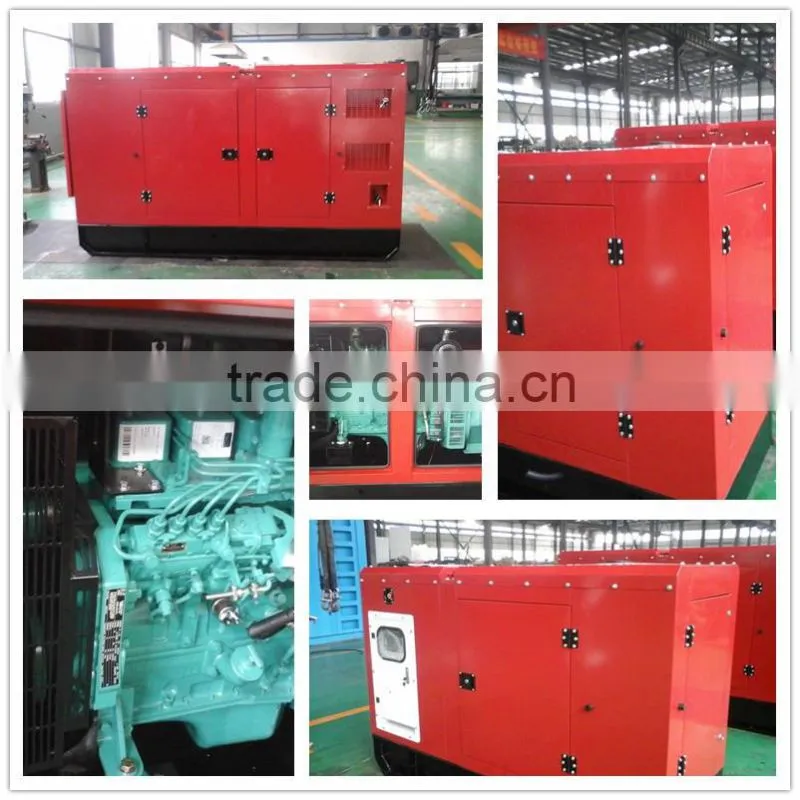

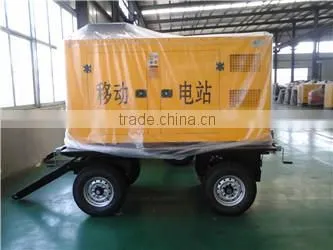

Open type and silent type by option
Specification of 800kva generator diesel 3 phase by sale with engine KTA38-G2B
Note: MARATHON ,LEROY SOMER and other brand of alternator is avaliable as your requirement.
Genset Model :SC640GF
50HZ ,400/230V ,1500RPM
Prime power kw/kva :640/800
Standby power kw/kva :704/880
Size mm :4500x1700x2400
Gross weight kg:8000kg
Diesel Engine :KTA38-G2B
Type :Water -cooled, inline , 4 stroke , direct injection , wet cylinder liner, 1500rpm
Rated power kw :711kw
Intake type :Turbocharged
No.of Cylinder :12.V
Bore *Stroke mm:159*159
Compression Ratio :16.5:1
Oil consumption L:135L
Fuel consumption :182L/h
Displacement L:37.8
Alternator :XN6C
Rated power kw /kva :640/800
Voltage Regulation :within +1 or -1
Excitation type :Brushless
Insulation type :H
Exhaust System
Exhaust Gas Flow (after turbo): 2643L/s
Exhaust Temperature: 552℃
Max Back Pressure: 10.0kPa
Fuel System
100%(Prime Power) Load: 213g/Kwh
75%(Prime Power) Load: 218g/Kwh
50%(Prime Power) Load: 230g/Kwh
100%(Prime Power) Load: 161.2L/h
Oil System
Oil Consumption: ≤4g/KWhr
Engine Oil Tank Capacity: 114L
Min Oil Pressure at Rated RPM: 310kPa
Cooling System
Total Coolant Capacity: 252L
Thermostat: 82-93℃
Max top tank Temperature: 104℃
Supermaly Testing Equipment
Here you can easily look that how is our equioment check our generators .There are many buttons , it can control and well know how runs our generators .

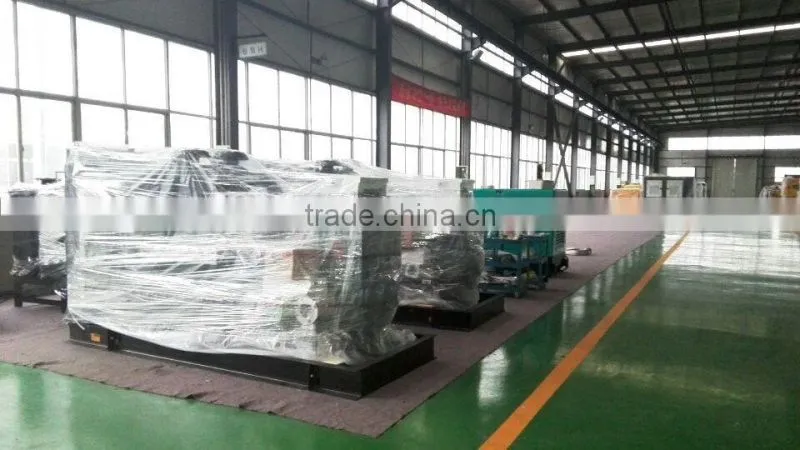

Packed with wrapped film as standard,plywooden case for options
When we finished the test of diesel generator,our transporation department then will take charge
of sending the generator to the container at port of loading,with help of our excellent forwarder,
we send our generators to our customers successfully without any damage.
