Stable Performance 400kw Diesel Generator Competitive Price
US$ 36,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Supermaly
Model Number:
SC400GF
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot ! 250kva 350kva Genset Backup ac GeneratorUS$ 4,000 - 17,000MOQ: 1 Set -
Hot ! Silent Power Generator 250kw With Diesel EngineUS$ 4,000 - 17,000MOQ: 1 Set
-
Hot ! 20kw - 500kw 3 Phase Generator Gensets With Soundproof CanopyUS$ 4,000 - 17,000MOQ: 1 Set
-
Closed Diesel 50kva Generator PriceUS$ 6,150 - 10,000MOQ: 1 Set
-
Automatic Start Generator 600kw Diesel GensetUS$ 73,700 - 150,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Supermaly
Model Number
SC400GF
Output Type
AC Three Phase
Speed
1500/1800r/m
Frequency
50/60HZ
Rated Power
400kw/500kva
Rated Voltage
400V
Rated Current
720A
Product Description
Stable performance 400kw diesel generator competitive price
| Cummins Series Diesel Generator | ||||||
| Genset Model | Open Type | SC400GF | ||||
| Silent Type | SC400GFS | |||||
| Prime Power(kW/kVA) | 400/500 | |||||
| Standby Power(kW/kVA) | 440/550 | |||||
| Diesel Engine | Model | KTA19-G3A | ||||
| Type | water-cooled, inline, 4-stroke, direct injection ,wet cylinder liner,1500rpm | |||||
| Rated Power(kW) | 457 | |||||
| Intake Type | Turbocharged | |||||
| No.of Cylinder | 6.L | |||||
| Bore x Stroke(mm) | 159x159 | |||||
| Piston Speed(m/s) | 7.9 | |||||
| Compression Ratio | 14.5:1 | |||||
| Mechanical Governor Rate | 5% | |||||
| Electronic Governor Rate | 1% | |||||
| Noise Level (dBA) | 75 | |||||
| Exhaust Temperature(°C) | 510 | |||||
| Lub oil Capacity(L) | 50 | |||||
| Rated Fuel Consumption(L/h) | 107 | |||||
| Displacement(L) | 18.9 | |||||
| Governing Type | Electrical | |||||
| Alternator | Model | HCI 544C | ||||
| Rated Power(kW/kVA) | 400/500 | |||||
| Power Efficiency | 94.10% | |||||
| Voltage Regulation | ±1.0 | |||||
| Excitation Type | Brushless | |||||
| Insulation Class | H | |||||
| Overall Size(mm) | Length | 3300 | ||||
| Width | 1150 | |||||
| Height | 1700 | |||||
| Gross Weight(kg) | 4600 | |||||
Standard:
International standard certification ISO9001: 2008, industry standards GB / T2820.1997
Environmental conditions
under the following conditions, the generator be able to work reliably and output rated power: Altitude: ≤1500m, if altitude above 1500m, the generator output power will be reduce, please consider this when purchasing; Ambient temperature: 40 ℃; Relative Humidity: 85%.
Unit structure
Diesel generator consists of diesel engines, alternators, common base, and control panel. Engine and alternator are connected by flexible coupling, and mounted on the common base with shock absorber. The control panel mounted on the common base alternator end by the shock absorber. It enables monitoring of electrical parameters of the generator, diesel-parameter measurement, control, parameter adjustment and alarm protection.
Delivery documentation
Engine Operation and Maintenance Manual, spare parts manual, diesel engine parts catalog, control panel manual, diesel generator operation and maintenance manual, , diesel generator certification, test report, alternator manual, etc. .
Standard Configuration:
Direct injection diesel engine; Perkins Engine Co., Ltd. (Global warranty)
AC synchronous generator (single bearing, global services);
40 ℃ -50 ℃ radiator, belt-driven cooling fan, fan safety shield;
MCCB, standard control panel; (digital display control panel supports eight languages worldwide)
steel common base with shock absorber
dry type air filter, fuel filter, lubricating oil filter, starter motor, and self-charging generator;
starter battery and connecting cables;
industrial 90dB muffler and standard connecting parts
wooden case
Engine Operation and Maintenance Manual, spare parts manual, diesel engine parts catalog, control panel manual, diesel generator operation and maintenance manual, diesel generator certification, test report, alternator manual, etc. .

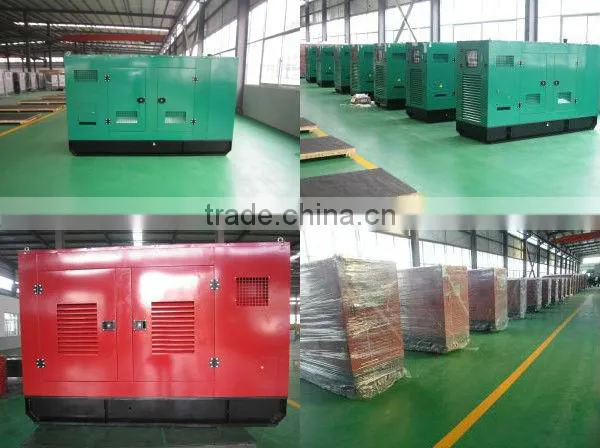

Supermaly Exhibition :
After we tested ,the next step is to package our products.We have many methods to package our products .Our packge can protect diesel generrator well.In transit,diesel generator keep well .
Warranty policy Supermaly:
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
