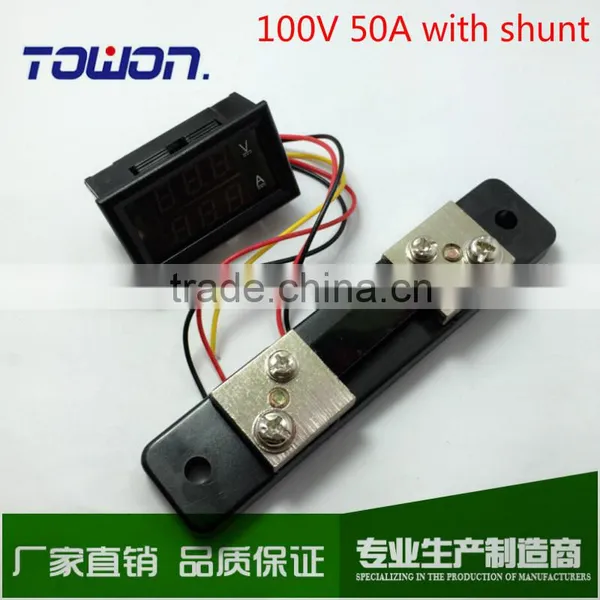

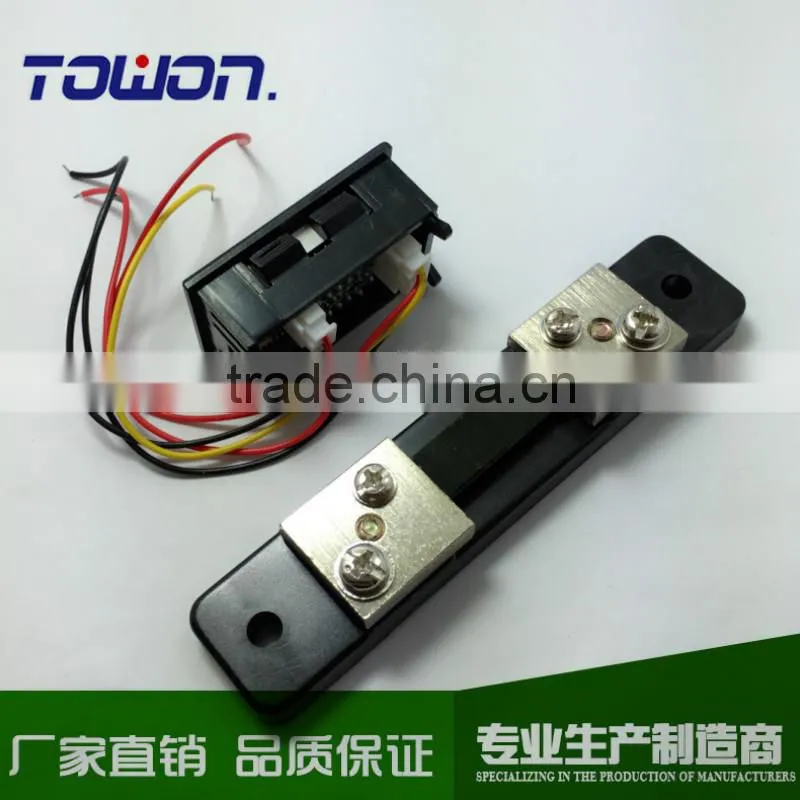

Dual LED Digital Voltmeter Ammeter Amp Volt Meter + Current Shunt DC 100V 50A

Name: Dual LED Digital Voltmeter Ammeter Amp Volt Meter + Current Shunt DC 100V 50A
Brand: TOWON
SKU: 109299043
Availability: InStock

US$ 8.00 - 8.00 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

TOWON

Model Number:

YB27VA

Yueqing Towon Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name TOWON

Model Number YB27VA

Display Type Digital Only

Measuring Range 300V 300A

Accuracy Class 1%

Supply Voltage 12V

Operating Temperature -10~60

Dimensions 48 x 29 x 21 mm

Features:

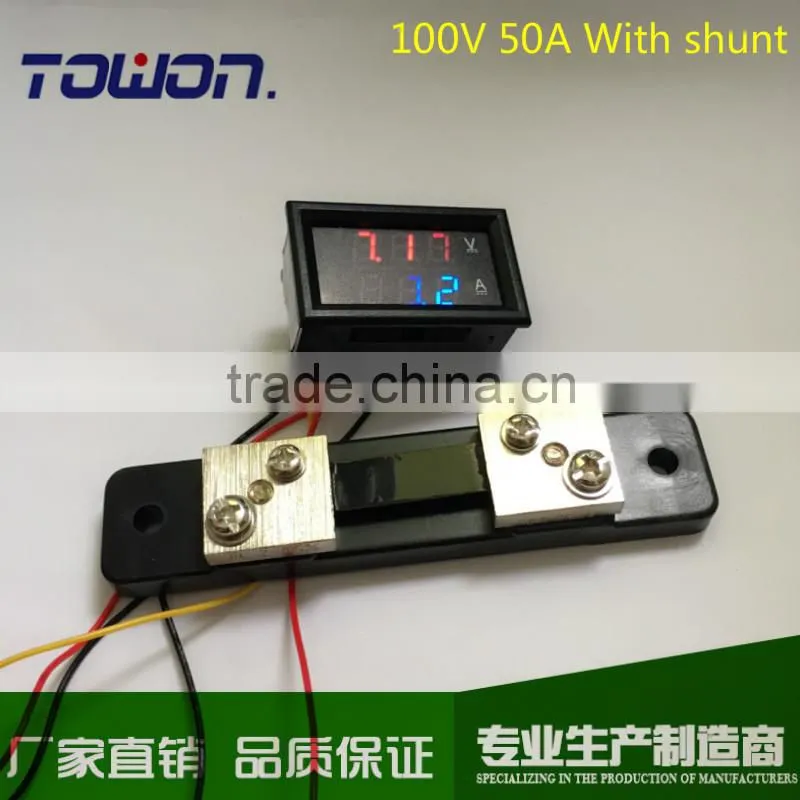

Dual LED: Red voltage, Blue current, Display Voltage Current at same time
this panel meter is common ground design, it means that the ( measure ground wire) and (power supply ground) is common ground.
Power Supply DC 4.5-30V. With reverse polarity protection, but the max power supply can not exceed 30VDC.

Specific:

Power Supply: DC 4.5-30V
Measure Voltage: DC 0-100V
voltage < 100V, resolution: 0.1V
voltage >= 100V, resolution: 1V

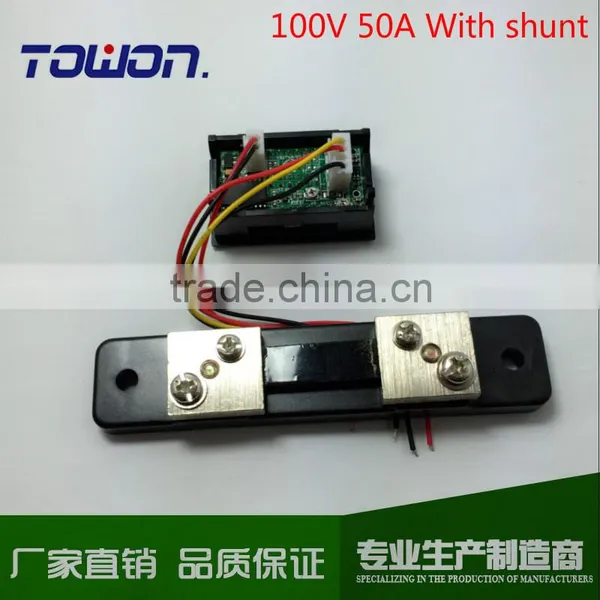

Measure Current: 0-50A forward current ( this ammeter need extra 50A shunt for measuring current, please check the description picture for connection reference )
Current Resolution: 0.1A
Operating Current: <20mA
Display: 0.28" LED, Dual Color, Red and Blue
Dimensions: 48 x 29 x 21 mm
Cutting Size: 45 x 26 mm
Measurement rate: ≥ 500mS / times
Accuracy: 1% ( ± 1 digit )
Operating Temperature:-10~65 degree
Operating Humidity: 10 ~ 80% (non-condensing)
Working pressure: 80 ~ 106kPa
Applications:Suitable for industrial equipments/electronic equipment/automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement.
