Home > Instruments & Meters > Meter for Electricity > Current Meter > Dual Display Ammeter Voltmeter DC 0~100V/20A Digital Voltage Current Meter 2in1 Volt Amp Gauge + Current Transformer

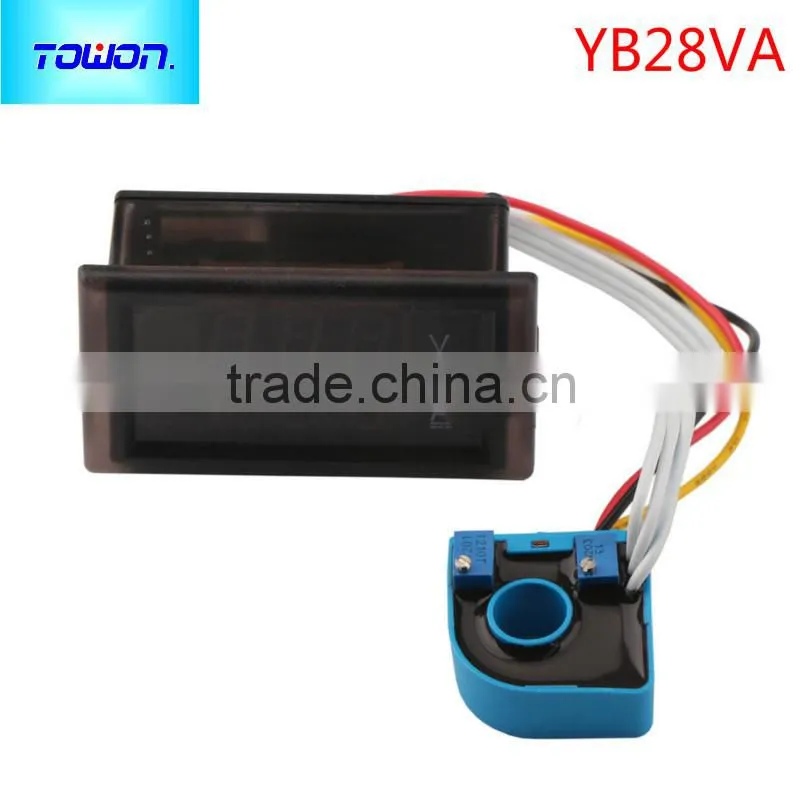

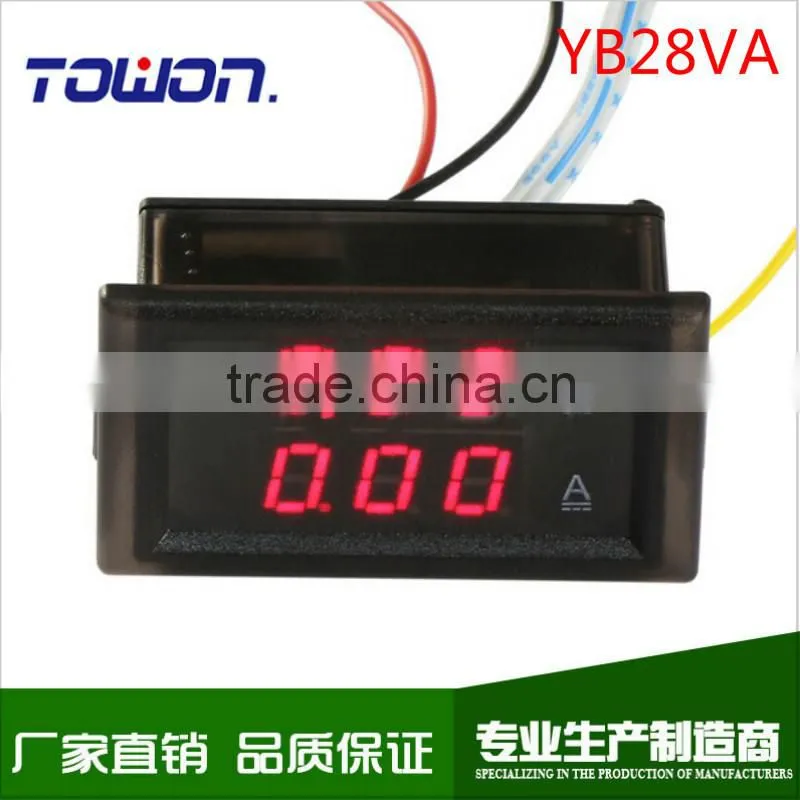

Dual Display Ammeter Voltmeter DC 0~100V/20A Digital Voltage Current Meter 2in1 Volt Amp Gauge + Current Transformer
US$ 10.00 - 10.00
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TOWON
Model Number:
YB28VA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo wenzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Display YB28VA DC Digital 10A Voltmeter Ammeter Digital DC Voltage AmmeterUS$ 10.00 - 10.00MOQ: 100 Pieces -
LCD 199.9V & DC50A Amp Volt Combo Meter With Shunt , Power Supply AC220VUS$ 10 - 10MOQ: 100 Pieces
-
D52-2048 AC80-300V 100A Din Rail LED Voltmeter Ammeter With Active and Reactive Power and Power Factor 5in 1AC Combo MeterUS$ 11.5 - 12.5MOQ: 100 Pieces
-
Din Rail LED AC 200-450V 0-100A Display Voltmeter Ammeter With Active and Reactive Power and Power Factor 5 in 1 Combo MeterUS$ 11.5 - 13MOQ: 100 Pieces
-
Din Rail Ammeter Voltmeter Dual Dipaly AC80-300V AC0.1-99.9A Amp Volt Combo MeterUS$ 7.5 - 10MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
TOWON
Model Number
YB28VA
Display Type
Digital Only
Measuring Range
300V 20A
Accuracy Class
1% (+ /-1)
Supply Voltage
DC4.5-30V
Operating Temperature
-10~+65

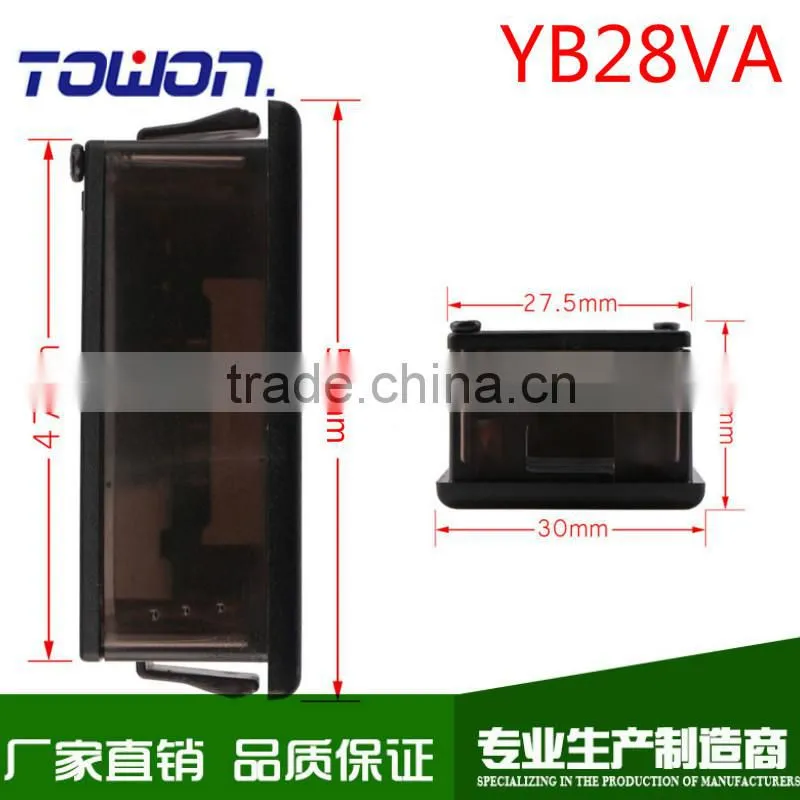

Dimensions
L54*W30*H21mm
Dual display Voltmeter Ammeter DC 0~100V/20A Digital Voltage Current Meter 2in1 Volt Amp Gauge + Current Transformer

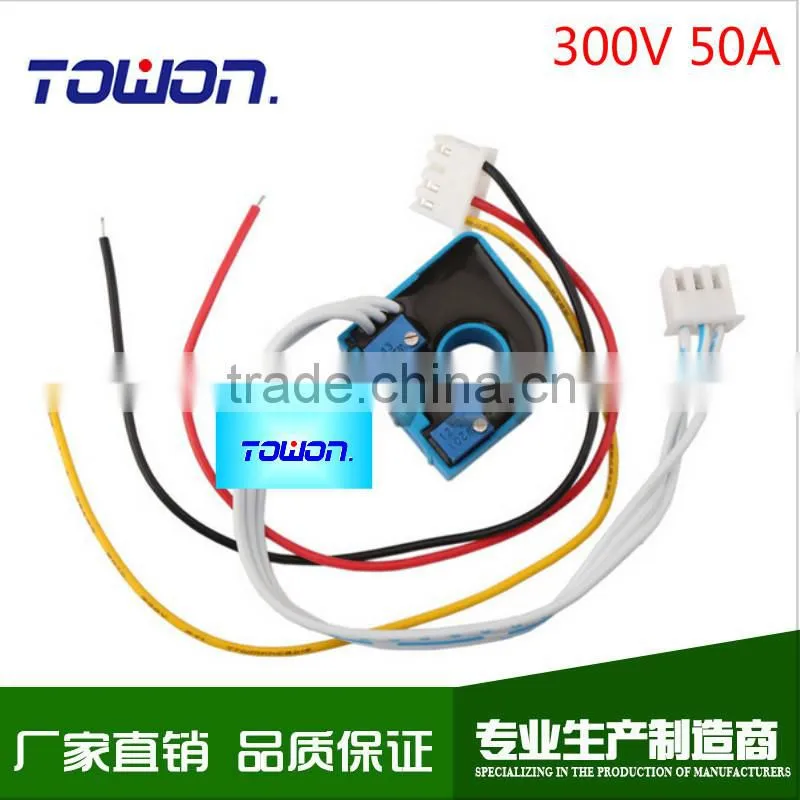

2in1 Current Meter Voltage Meter DC 0~300V/50A Digital Voltmeter Ammeter DC 12V 24V Volt Amp Meter + Current Transformer
Parameter:
- Wiring hole diameter: 8.5 mm
- Transformer dimension : L23.3 x W23 x T9.3 mm
- Measure Voltage range: 0.0~100V
- Resolution: 0.01(less than 100V);0.1(>100V)
- Resistance: > 1M
- Measure Current Range: +/- 0.0~20.0A
- Resolution: 0.1
- Power supply voltage: DC 4~30V(Note: the max voltage input should not be larger than 30V, or it will burn out)
- Working current: <30mA
- Display color: red+red
- Testing rate: ≥500mS/per time
- Measuring accuracy: 1%(+/-2 words)
-
Extreme working conditions:
- Lowest power supply voltage: +4.0V
- Max power supply voltage: +30V
- Working temperature: -10 to 65 Celsius
- Operating humidity: 10 to 80%(No condensation)
- Working pressure: 80 to 106kPa
- Direct sunshine: NO(please prevent direct sunshine)
