Home > Instruments & Meters > Meter for Electricity > Voltage Meter > Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive Shunt

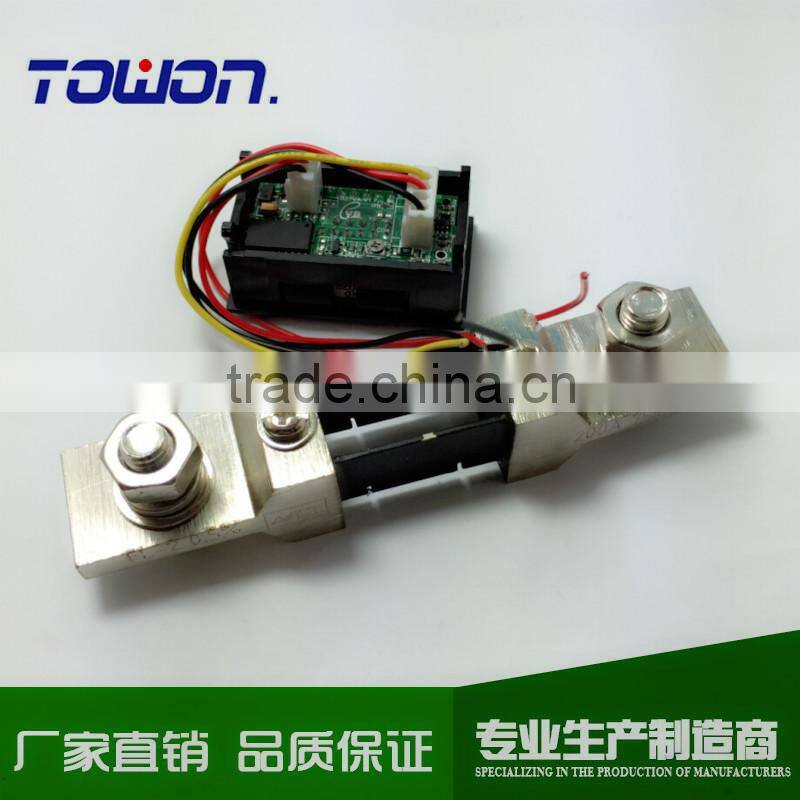

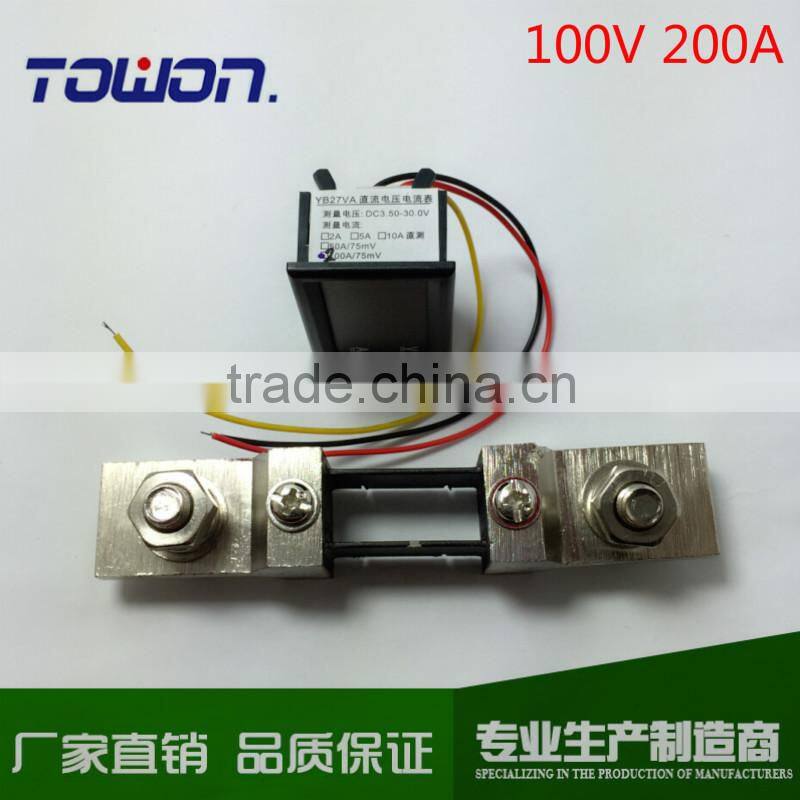

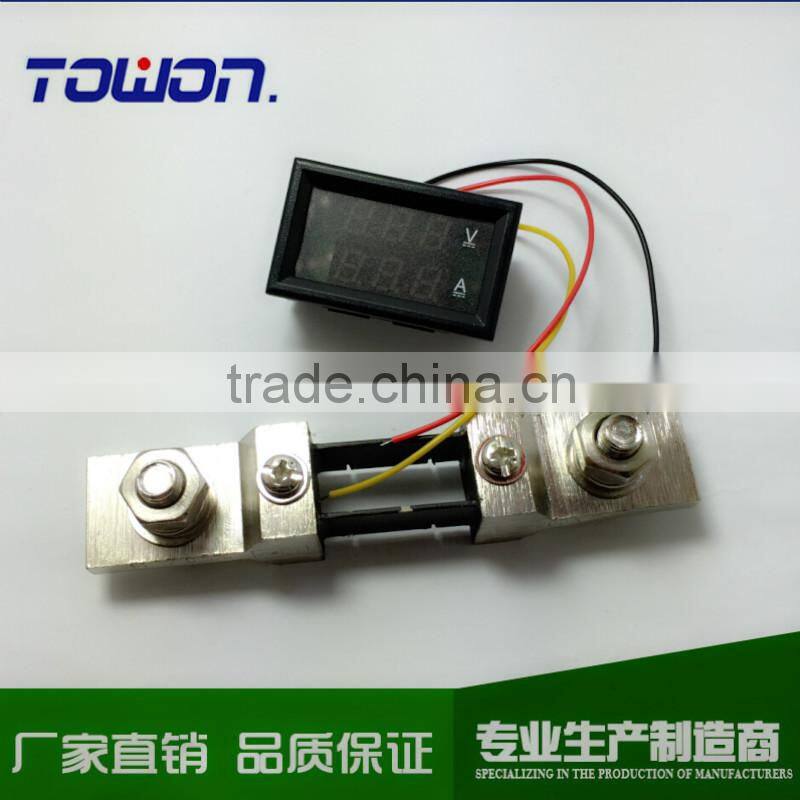

Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive Shunt

Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive Shunt thumbnail-1
Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive Shunt thumbnail-2
Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive Shunt thumbnail-3
Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive Shunt photo-1
Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive Shunt photo-2
Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive Shunt photo-3
US$ 8.00 - 8.00 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TOWON
Model Number:
YB27VA
Contact Supplier Request Quote Chat Now
Yueqing Towon Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name TOWON
Model Number YB27VA
Display Type Digital Only
Measuring Range 100V 200A
Accuracy Class 1%(+-1)
Operating Temperature -10~+65
Dimensions 48mm x 29mm x 21mm

Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive ShuntMini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive ShuntMini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive Shunt



Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive Shunt



Features:

  • Operating voltage:DC 4.5 ~ 30V
  • Measure voltage: DC 0 ~ 100V
  • Minimum resolution(V): 0.1V
  • Measure current :DC 200A (require external shunt)
  • Minimum resolution(A): 0.1A
  • Operating Current: <20mA
  • Display: three 0.28" LED digital tube
  • Display color: Red (dual display)
  • Dimensions: 48 x 29 x 21mm
  • Mounting cutout: 45.5 x 26.5mm
  • Refresh rate: about 500mS / times
  • Measure accuracy: 1% (± 1 digit)
  • Operating temperature: -10 to 65° c
  • Operating Humidity: 10 to 80% (non-condensing)
  • Working pressure: 80 to 106 kPa
  • Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement
