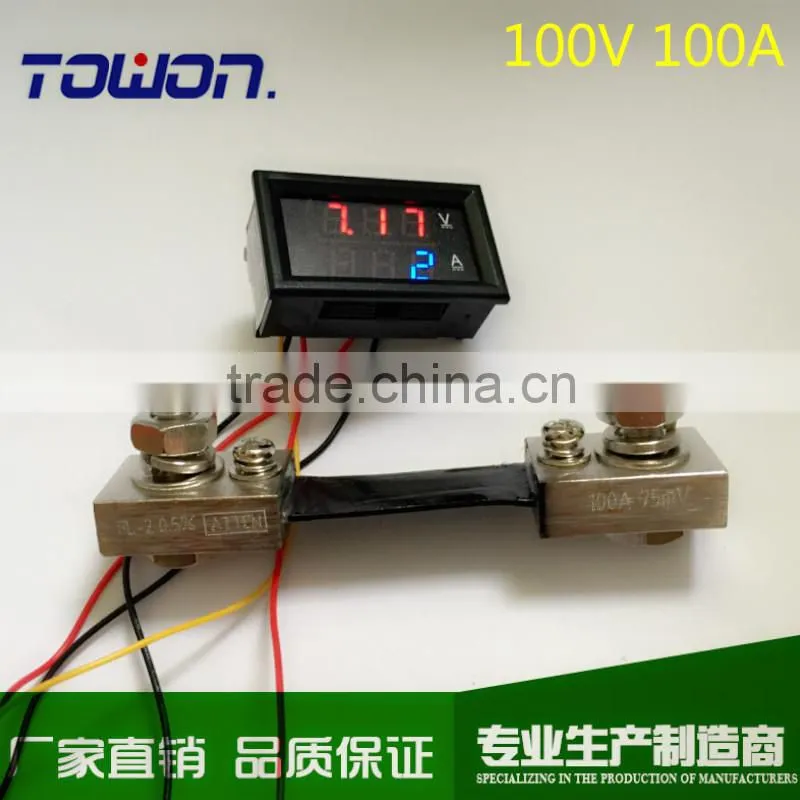

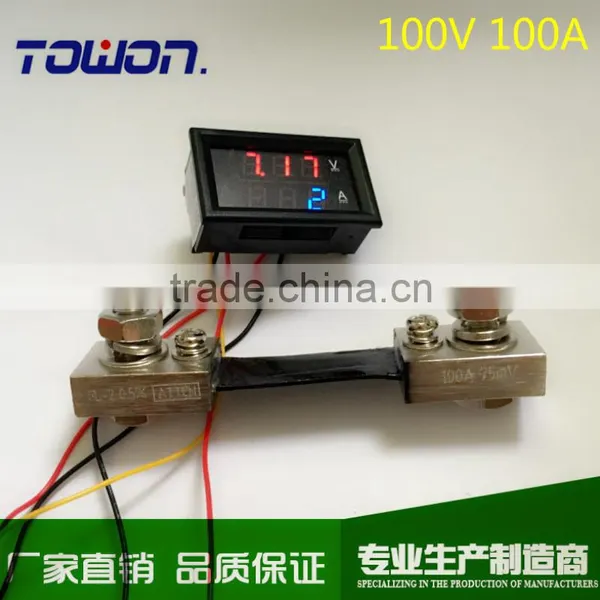

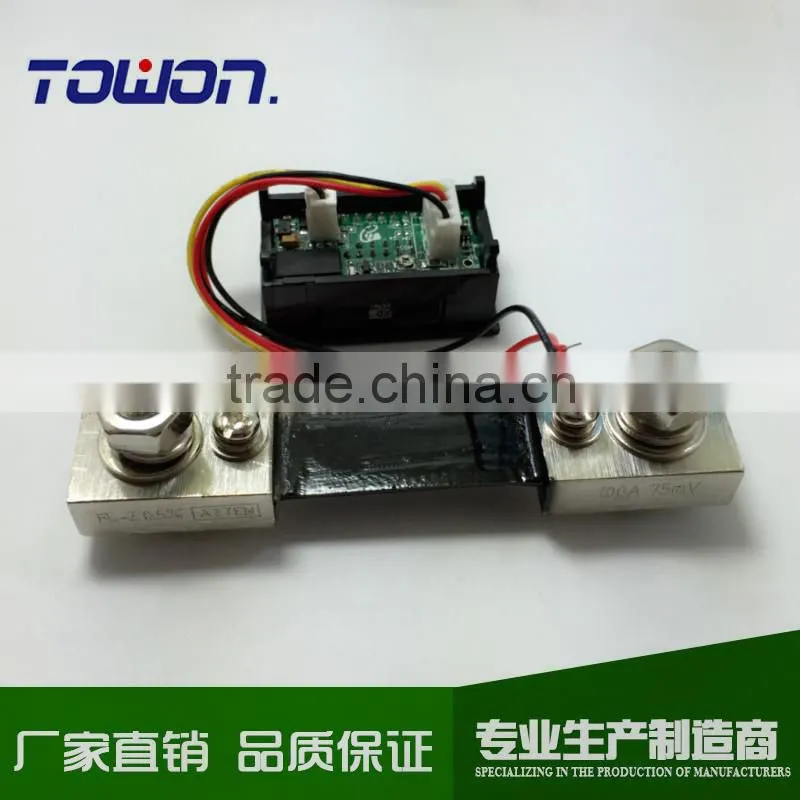

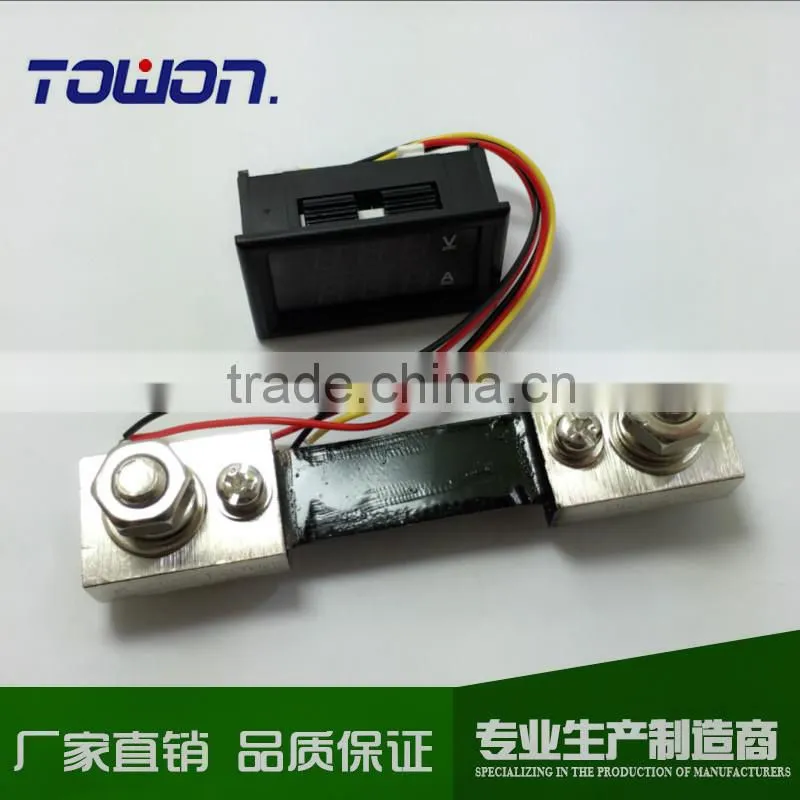

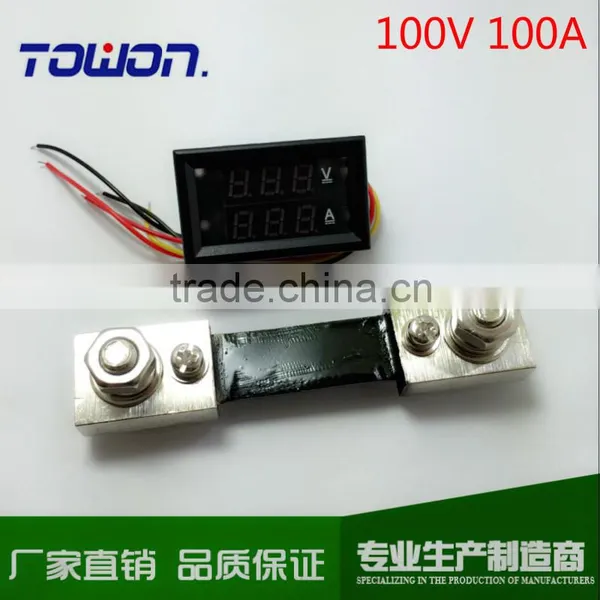

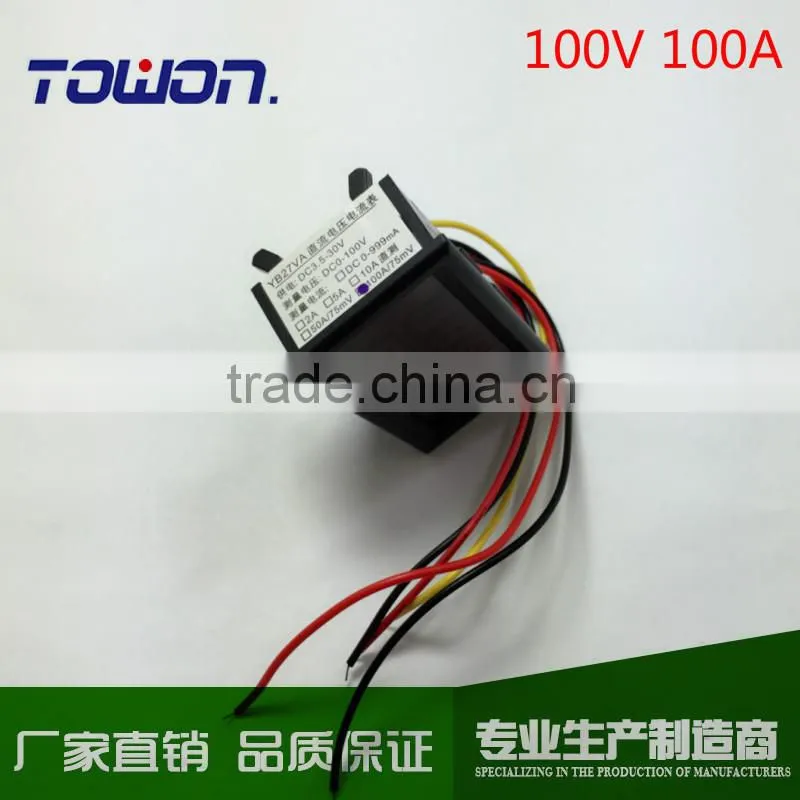

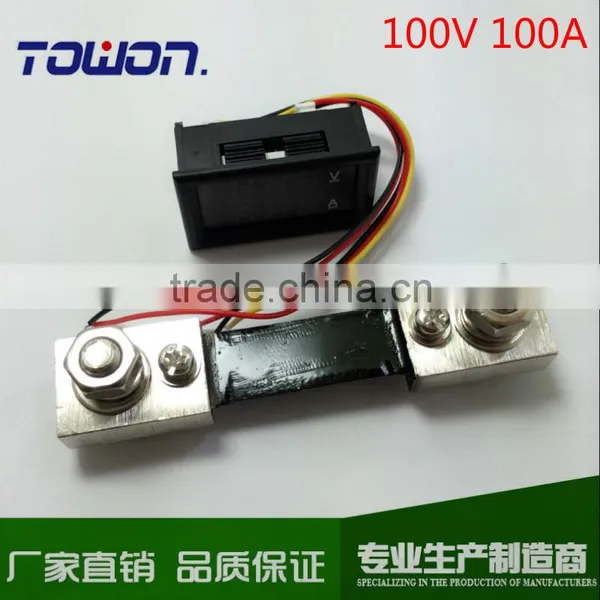

Dual LED Digital Voltmeter Ammeter Amp Volt Meter + Current Shunt DC 100V 100A
US$ 7.00 - 7.00
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TOWON
Model Number:
YB27VA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive ShuntUS$ 8.00 - 8.00MOQ: 100 Pieces -
100A Ammeter 100V Voltmeter 2in1 Digital Voltage Current Meter DC 12V 24V Dual Display Volt Amp Monitor + Current TransformerUS$ 9.00 - 9.00MOQ: 100 Pieces
-
2in1 Current Meter Voltage Meter DC 0~300V/50A Digital Voltmeter Ammeter DC 12V 24V Volt Amp Meter + Current TransformerUS$ 10.00 - 10.00MOQ: 100 Pieces
-
Dual Display Ammeter Voltmeter DC 0~100V/20A Digital Voltage Current Meter 2in1 Volt Amp Gauge + Current TransformerUS$ 10.00 - 10.00MOQ: 100 Pieces
-
Double Display YB28VA DC Digital 10A Voltmeter Ammeter Digital DC Voltage AmmeterUS$ 10.00 - 10.00MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
TOWON
Model Number
YB27VA
Display Type
Digital Only
Measuring Range
100V 100A
Accuracy Class
1% (+ / - 1 digit)
Operating Temperature
-10~+65
Dimensions
48mm x 29mm x 21mm
Dual LED Digital Voltmeter Ammeter Amp Volt Meter + Current Shunt DC 100V 100A
Features:
- Operating voltage:DC 4.5 ~ 30V
- Measure voltage: DC 0 ~ 100V
- Minimum resolution(V): 0.1V
- Measure current:100A (require external shunt)
- Minimum resolution(A): 0.1A
- Operating current: <20mA
- Display: three 0.28" LED digital tube
- Display color: Red and Blue (double color display)
- Dimensions: 48 x 29 x 21mm
- Mounting cutout: 45.5 x 26.5mm
- Refresh rate: about 500mS / times
- Measure accuracy: 1% (± 1 digit)
- Operating temperature: -10 to 65° c
- Operating Humidity: 10 to 80% (non-condensing)
- Working pressure: 80 to 106 kPa
- Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement
Wiring:
- Black line (thin): vacant or buck circuit (module) negative
- Red line (thin): power supply+
- Black line (thick): COM, common measuring
- Red line (thick): PW+, measuring terminal voltage input positive
- Yellow line (thick): IN+, current input+
- (Please refer to the wiring diagrams for more details)
