Home > Instruments & Meters > Meter for Electricity > Current Meter > YB27VA DC 0-300V/300A Red/Blue Voltmeter Ammeter 2in1 Volt Amp Panel Meter for Car Motorcycle and DIY Ect
YB27VA DC 0-300V/300A Red/Blue Voltmeter Ammeter 2in1 Volt Amp Panel Meter for Car Motorcycle and DIY Ect
US$ 8.00 - 8.00
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TOWON
Model Number:
YB27VA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dual LED Digital Voltmeter Ammeter Amp Volt Meter + Current Shunt DC 100V 50AUS$ 8.00 - 8.00MOQ: 100 Pieces -
Dual LED Digital Voltmeter Ammeter Amp Volt Meter + Current Shunt DC 100V 100AUS$ 7.00 - 7.00MOQ: 100 Pieces
-
Mini 2in1 0.28" DC 0-100V/200A Red Blue LED Voltage Current Monitor Meter YB27-VA Voltmeter Amperemeter With Resistive ShuntUS$ 8.00 - 8.00MOQ: 100 Pieces
-
100A Ammeter 100V Voltmeter 2in1 Digital Voltage Current Meter DC 12V 24V Dual Display Volt Amp Monitor + Current TransformerUS$ 9.00 - 9.00MOQ: 100 Pieces
-
2in1 Current Meter Voltage Meter DC 0~300V/50A Digital Voltmeter Ammeter DC 12V 24V Volt Amp Meter + Current TransformerUS$ 10.00 - 10.00MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
TOWON
Model Number
YB27VA
Display Type
Digital Only
Measuring Range
300V 300A
Accuracy Class
1%
Supply Voltage
12V
Operating Temperature
-10~60
Dimensions
48 x 29 x 21 mm
Features:
- Dual LED: Red voltage, Blue current, Display Voltage Current at same time
- this panel meter is common ground design, it means that the ( measure ground wire) and (power supply ground) is common ground.
- Power Supply DC 4.5-30V. With reverse polarity protection, but the max power supply can not exceed 30VDC.
Specific:
- Power Supply: DC 4.5-30V
- Measure Voltage: DC 0-300V
- voltage < 100V, resolution: 0.1V
- voltage >= 100V, resolution: 1V

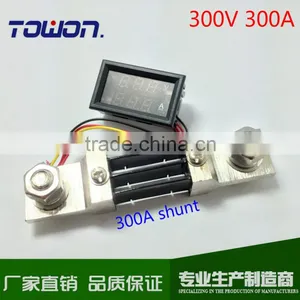

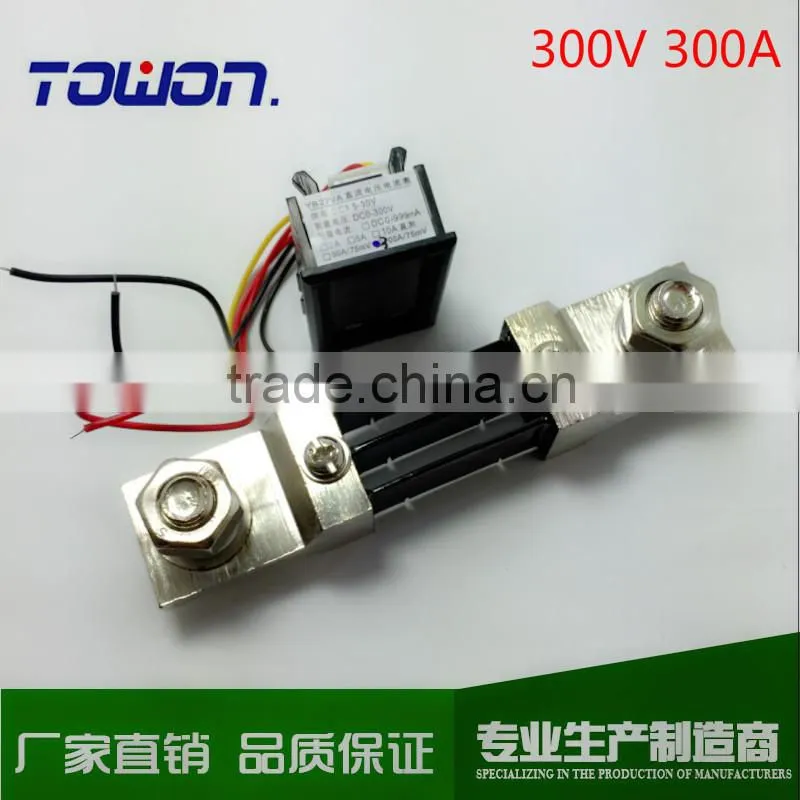

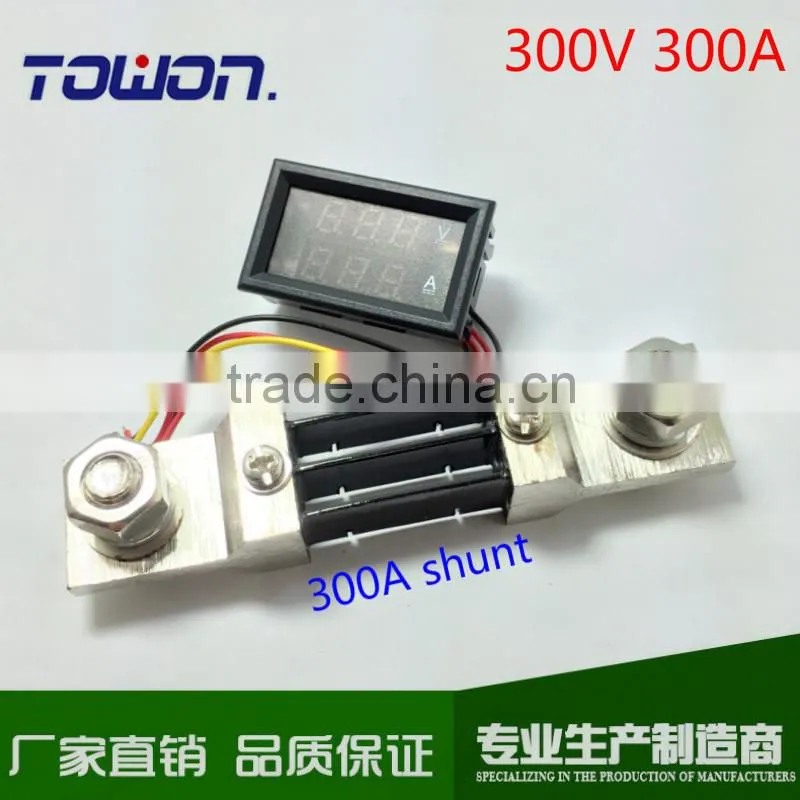

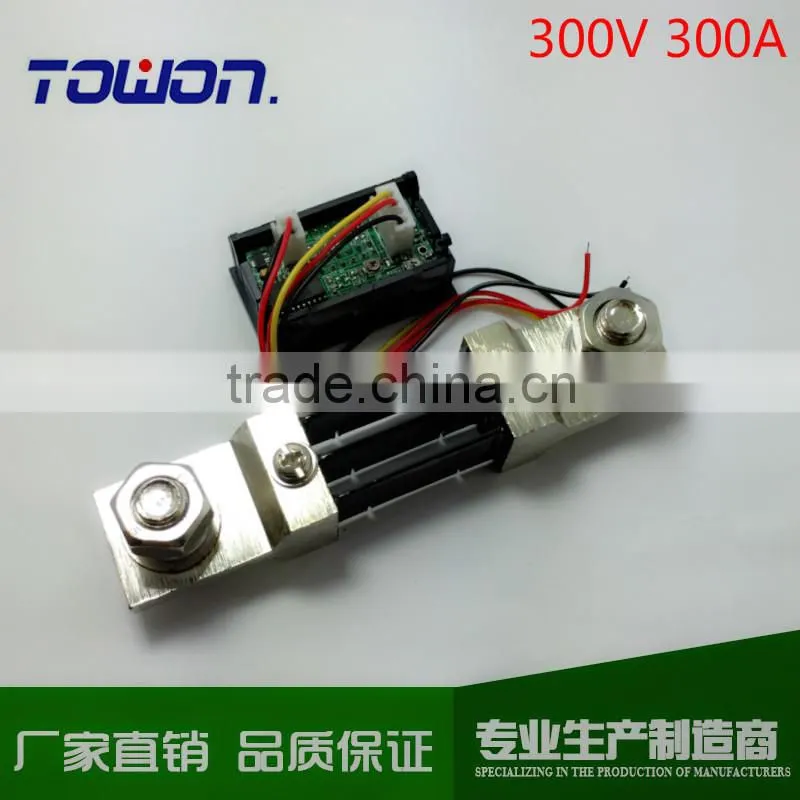

- Measure Current: 0-300A forward current ( this ammeter need extra 300A shunt for measuring current, please check the description picture for connection reference )
- Current Resolution: 0.1A
- Operating Current: <20mA
- Display: 0.28" LED, Dual Color, Red and Blue
- Dimensions: 48 x 29 x 21 mm
- Cutting Size: 45 x 26 mm
- Measurement rate: ≥ 500mS / times
- Accuracy: 1% ( ± 1 digit )
- Operating Temperature:-10~65 degree
- Operating Humidity: 10 ~ 80% (non-condensing)
- Working pressure: 80 ~ 106kPa
- Applications:Suitable for industrial equipments/electronic equipment/automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement.
