Plastic Carry Bags Printing Machine
- 20 Set / Sets per Month
- NINGBO / SHANGHAI
- T/T Credit Card
Product Details
Condition: | New | Plate Type: | Gravure | Place of Origin: | China |
Brand Name: | YH | Model Number: | YT | Automatic Grade: | Automatic |
Voltage: | 380V/ 220V | Gross Power: | 12KW | Weight: | 3200KGS |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

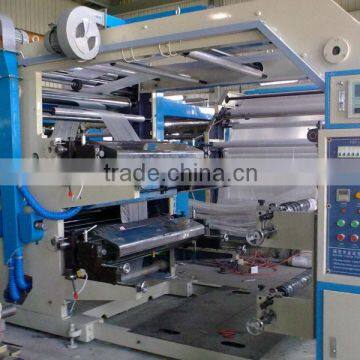

Plastic Shopping Bag printing machine
for printing plastic film, paper, alum foil and non woven fabrics film.
Economic Stable.
Only one worker can be run it
Use
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paperetc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Characteristics
1.Easy operation, flexible starting accurate color register.
2.The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually, It will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylinder with even ink color.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.3600 continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Variables:
Model of Machine | YT-2600 | YT-2800 | YT-4600 | YT-4800 |
Width Range | 200-600mm | 200-800mm | 200-600mm | 200-800mm |
Length Range | 191-914mm | 191-914mm | 191-914mm | 191-914mm |
Max.Diameter of Material | Φ450mm | Φ450mm | Φ450mm | Φ450mm |
Printing Speed | 5~50m/min | 5~50m/min | 5~50m/min | 5~50m/min |
Thickness of plate(Including Two-sides Glue Paper) | 2.38mm | 2.38mm | 2.38mm | 2.38mm |
Total Power | 11kw | 15kw | 18kw | 25kw |
Weight of Machine | 3500kg | 4200kg | 5000kg | 5500kg |
Overall Dimensions | 2900*1660*2950mm | 2900*1860*2950mm | 3900*2060*2950mm | 3900*2260*2950mm |
Two Colors Printing Machine
Four Colors Printing Machine (without Automatic Tension Control)
Four Colors Printing Machine (with Automatic Tension Control)
Our Service :
1. Purchase Service
We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .
2. Shipping Service
We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.
We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.
3.Installation and Training Services
Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.
Training on our factory also be welcome.
4.After Sales Service
Our machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
