Home > Products > Pump and Accessories > Mini High Quality Peristaltic Pump
Mini High Quality Peristaltic Pump
Negotiable
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- Tianjin & Shanghai & Shenzhen
- T/T Credit Card PayPal
You May Like
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Hebei, China | Brand Name: | Longer | Model Number: | BQ50-1J |
| Theory: | Other, Peristaltic Pump | Structure: | Other, Peristaltic Dosing Pump | Usage: | Other, Peristaltic Dosing Pump |
| Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
| Pressure: | Low Pressure | Application: | Other, Peristaltic Dosing Pump |
Product Description

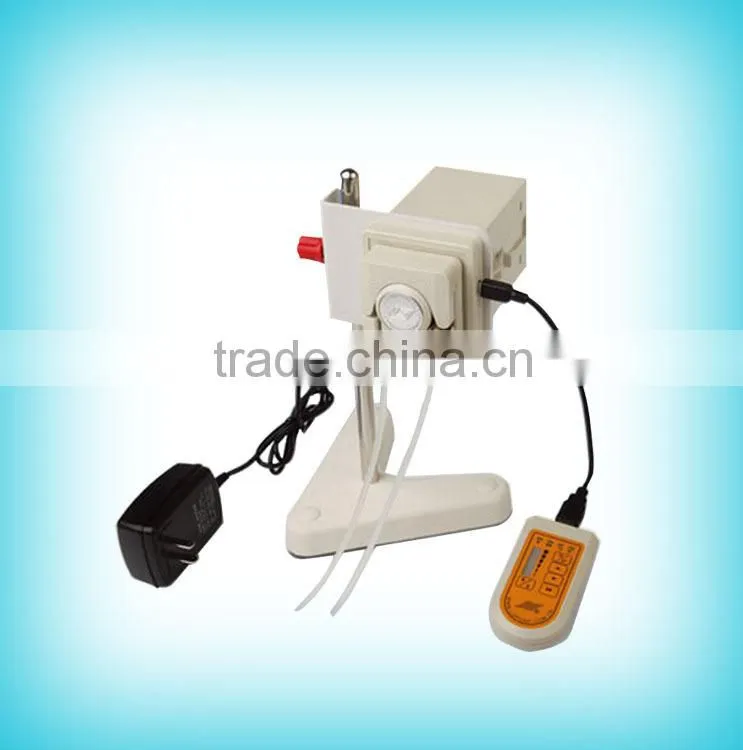

Mini High Quality Peristaltic Pump
Product Description
Precise peristaltic pump combines low flow and a compact size into a single pump that mounts in your equipment rack or panel. The pump delivers flow rates form 0.006 to 20 mL/min. And it can be operated through hand-held remote controller, analog interface or RS485. White and black casing are available.
Specification:
- Speed: 1 to 50 rpm, reversible
- Speed precision: 1 rpm (External Control 0.1 rpm)
- Speed control: Hand-held remote controller
- Display: Hand-held remote controller displays speed range and running status
- External interface: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, 4 to 20 mA and 0 to 10 KHz speed control
- Communication Interface: RS485
- Power supply: DC 12 V/1A or Adapter
- Power consumption: < 10 W
- Operating condition: Temperature 0 - 40 °C
- Relative humidity < 80%
- Drive dimensions (L × W × H): 135 × 72 × 72 (mm)
- Controller dimensions (L × W × H): 105 × 50 × 16 (mm)
- Pump weight: 0.5 kg
- IP rating: IP 31
Features:
- Prime function for fast filling and emptying
- Memory function :Storing the running parameter automatically
- Ideal for OEM: Compact size and light weight
- Installation modes: Inlaid and rack
- Control modes: Hand-held remote controller, analog external control, communication
- Tubinb loading: Flexible, reliable
Accessories:
Standard Configuration:
1. Pump Head
2. Drive
3. Hand-held Remote Controller
4. Adapter
2. Drive
3. Hand-held Remote Controller
4. Adapter
Optional Accessories:
1. Small V-base
2. Polished Stainless Steel Frame Tube
3. Fixed Plate
1. Small V-base
2. Polished Stainless Steel Frame Tube
3. Fixed Plate

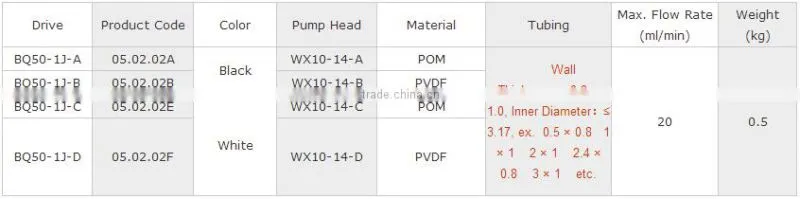

Parameters:
Packaging & Shipping
Protective Box & Carton
Our Services
We aim to provide professional services to meet consistently customer's requirements keeping quality & cost on priority. OEM is highly welcome.
Contact Us
- Beijing Mingbofei Science Technology Limited Company
- Contact nameLiying Zhang
- Phone86-10-52118031
- Address(10-8, Ximen Business Bldg.) No. 56, Xinhua West Street
