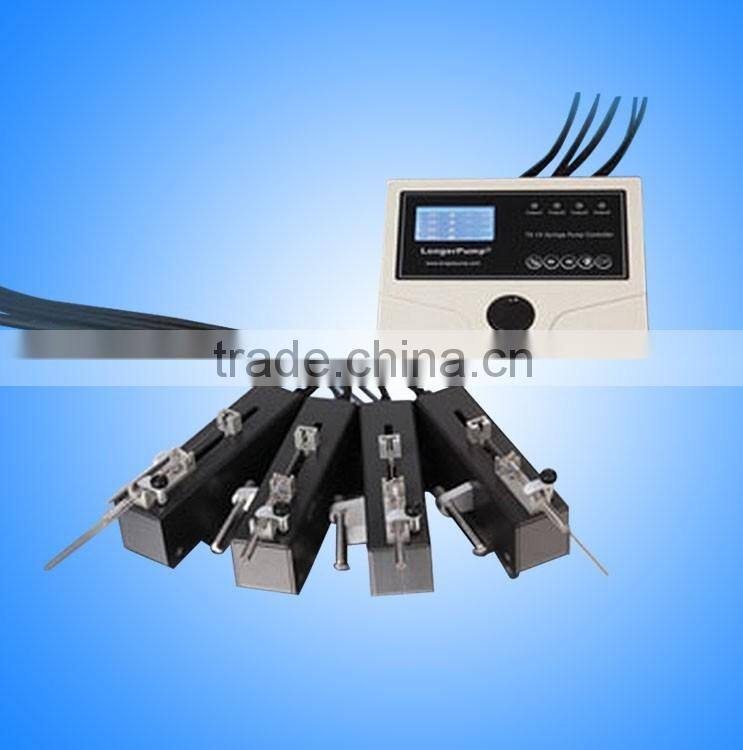

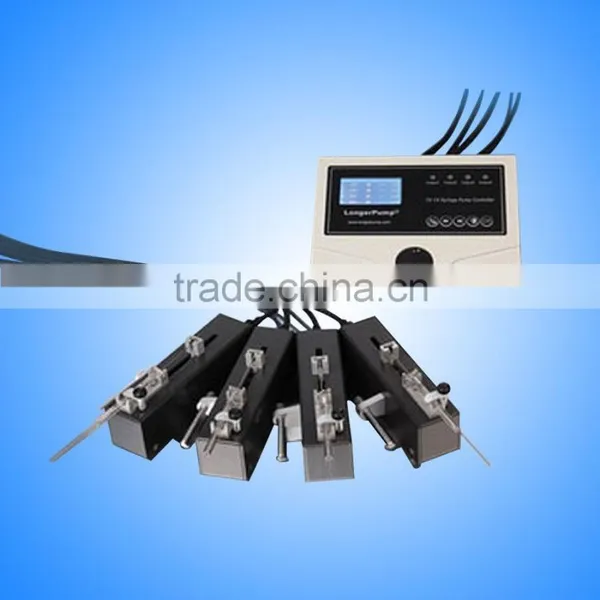

Disinctive Design Syringe Pump System Four-channel Micro Syringe Pump TS-1A



Specifications:

• Max. Infusion Distance: 70 mm
• Acceptable Glass Syringe : 5 µL - 1000 µL
• Linear Speed: 7.9 µm/min - 79.4 mm/min
• Adjusting Resolution: 7.9 µm/min
• Distance Resolution: 0.165 µm
• Linear Force: > 20 N
• Setting Mode: Membrane keypad and rotary coded switch
• Accuracy: < +/- 0.5% error in the condition of > 30% of max. infusion distance
• Display: 128 x 64 graphic LCD
• External Control: Start/Stop control, fast forward control, fast reverse control
• Communication Interface: RS 485
• Power: AC 100 V - 240 V or DC 12 V
• Power Consumption: < 40 W
• Operating Condition: Temperature 0 - 40 °C
• Relative Humidity < 80 %
• Controller Dimensions (L x W x H): 170 x 108 x 65 (mm)
• Controller Weight: 0.8 Kg
• Drive Unit Dimensions (L x W x H): 180 x 46 x 78 (mm)
• Drive Unit Weight: 0.6 Kg
• IP Rating: IP 21

 Feasures:

• Parameters Setting: The parameters of each channel can be different.
• Running Control: Each drive unit can be controlled separately, or four drive units can be controlled to run simultaneously or run at different time
• Channel Copy: All drive units can be run according to the parameters of one drive units of them
• Delaying Startup: Delaying startup time of each channel can be controlled separately
• Memory Function: Select resume operation or remain stopped when power turns after an interruption
• Block Protection: When one drive unit stops accidently, the system will warm and stop
• Working Mode: TS-1A/L0107-1A - Infusion; TS-2A/L0107-2A - infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuours
• External Control: Start/stop input control signal which is pulse mode to switch the states of start and stop
• Communication: Realize computer control through RS485 communication interface

Main Functions for Each Channel:

• Syringe Selection: The syringe can be selected in the manufacture table which includes manufacturer, material and size
• User-Defined Glass Syringe: Save 4 inner diameter of user-defined glass syringe barrel
• Parameters Setting: Set dispensing volume, infusion time, pause time and copy number
• Display Mode Selection: Different parameters (column, flow rate, linear speed) can be selected in the main display interface
• Fast Forward & Fast Reverse: Infusion at the max. speed
• Calibration: Acquire accurate volume through calibration

Parameters:

Protective Box & Carton
