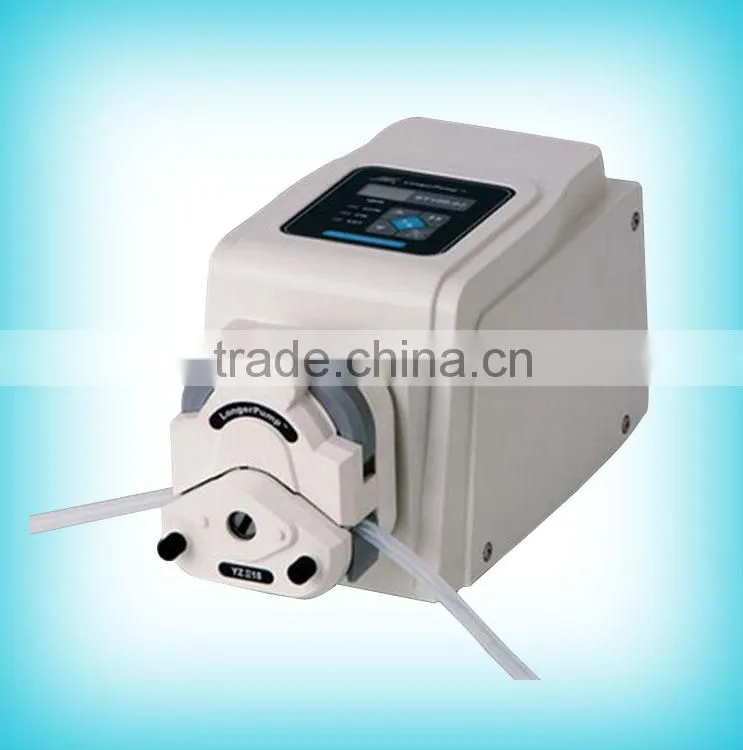

High Quality Low Flow Rate Peristaltic Pump

High Quality Low Flow Rate Peristaltic Pump photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Longer
Model Number:
BT100-2J
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin & Shanghai & Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Longer
Model Number BT100-2J
Theory Other, Peristaltic Pump
Structure Other, Peristaltic Dosing Pump
Usage Other, Peristaltic Dosing Pump
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electric
Pressure Low Pressure
Application Other, Peristaltic Dosing Pump

High Quality Low Flow Rate Peristaltic Pump



Product Description

Precise peristaltic pump BT100-2J can be loaded YZ1515XYZII15,YZ2515XYZII25DG-1 and DG-2. The pump provides flow rates from 0.0002 to 380 ml/min. The speed can be adjusted manually or automatically through external control. Store the running parameters automatically. Easy to operate.



High Quality Low Flow Rate Peristaltic Pump





Specification:



  • Speed: 0.1 to 100 rpm, reversible
  • Speed precision: 0.1 rpm
  • Speed control: Membrane keypad
  • Display: 3-digit LED displays current rpm
  • Communication interface: RS485
  • External control: Start/stop, cw/ccw control  and speed control 0-5 V, 0-10 V, 4-20 mA and 0-10KHz
  • Power supply: AC 90V-260 V 50/60 Hz
  • Power consumption: ≤30 W
  • Operating condition: Temperature 0 to 40 ℃
  • Relative humidity: < 80%
  • Dimensions (L×W×H): 232×142×149 (mm)
  • Drive weight: 2.3 kg
  • IP rating: IP 31


Features:

  • Applicable pump heads: YZ1515XYZ2515XYZII15,YZII25DG-1DG-2
  • Prime key for fast filling and emptying
  • Adjust speed manually or automatically through analog interface
  • Memory function, storing the running parameters automatically
  • Membrane keypad, easy to operate
  • Good performance and low price
  • Indoor use only

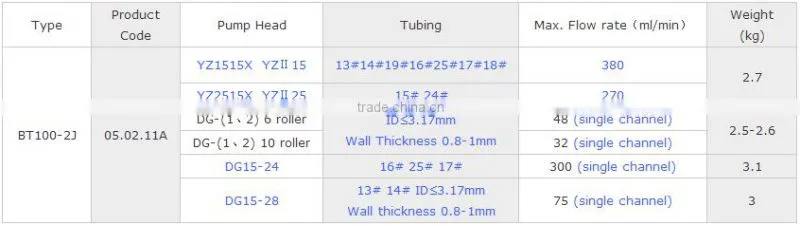

Parameters:

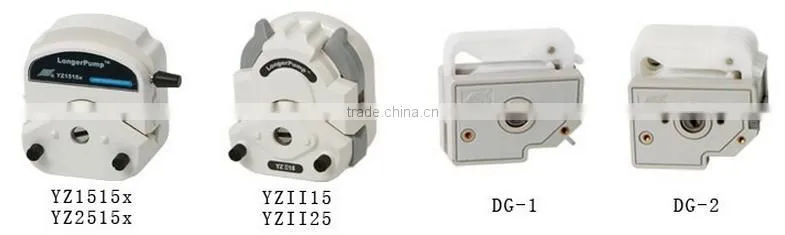

Suitable Pump Head:
