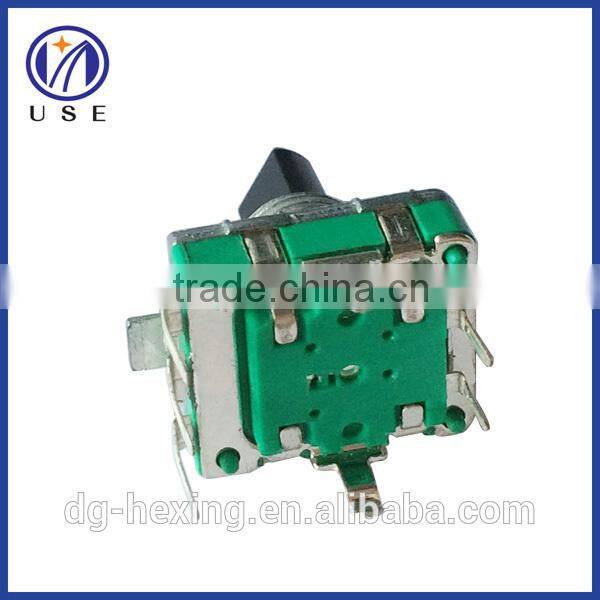

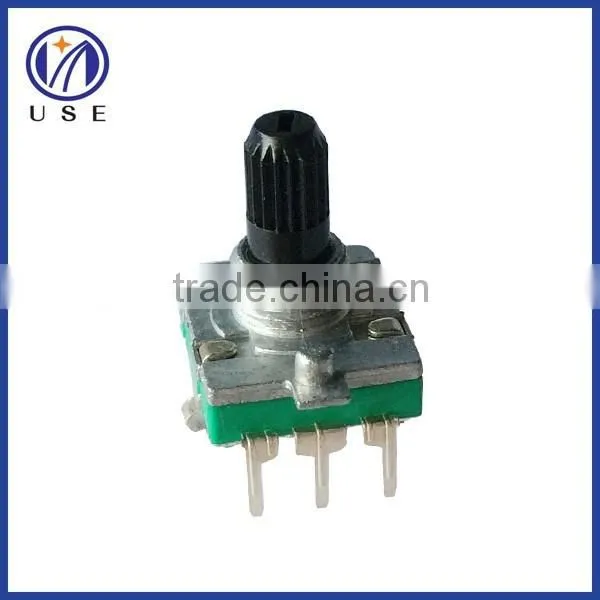

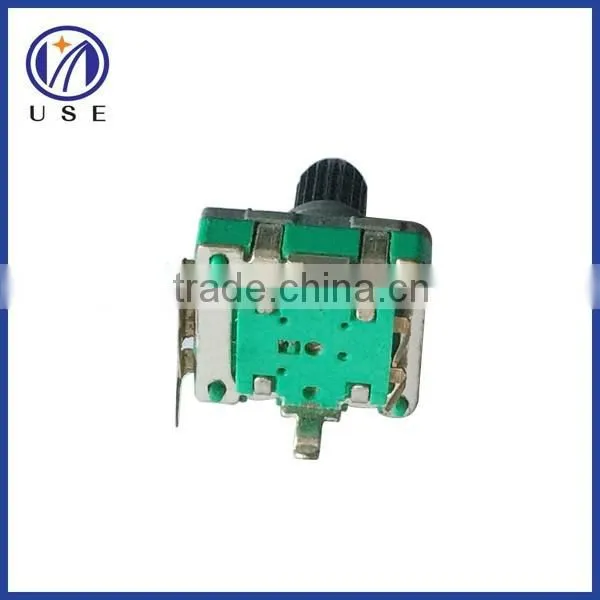

16mm japan rotary encoder for home appiances (EC16S)

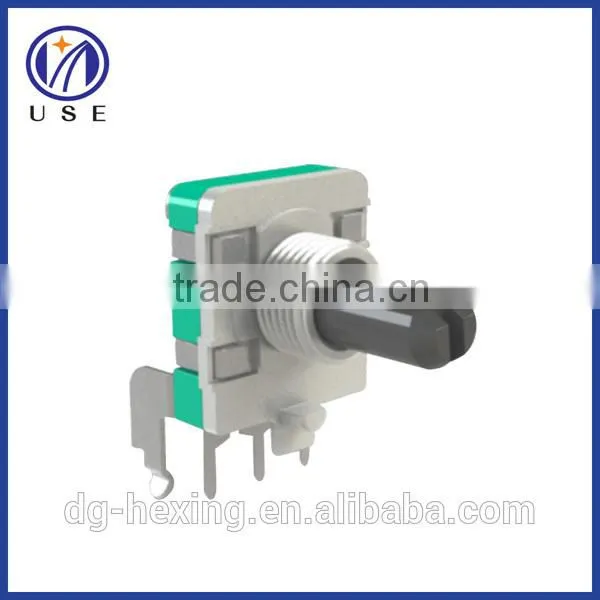

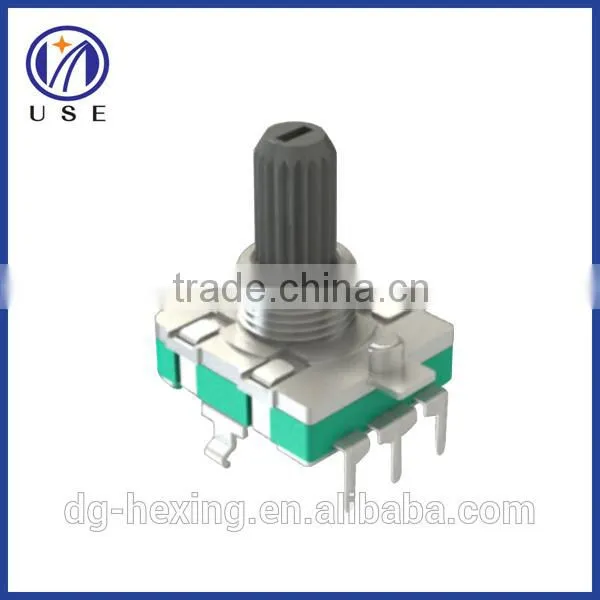

japan rotary encoder , 16MM with switch encoder, pin type, mounting height 6.5MM, 5MM threaded sleeve, semi-circular iron handle, shaft length 12.5MM, 15 pulses of 30 positioning, is Positive wave
Detailed Description:
Insulated shart rotary encoder series with 360°rotational angle.
1.General
1.1 Scope> This specification applies to 16mm size low-profile rotary encoder(incremental type) for microscopic current circuits,used in electronic equipment
1.2Standard atmospheric conditions>Unless otherwise specified,the standard range of atmospheric conditions for making measurements and test is as following limits:
Ambient temperature: 15°C to 35°C
Relative humidity : 25% to 85%
Air pressure : 86kpa to 106kpa
1.3>Operating temperature range: -10°C to 70°C
1.4> Storage temperature range : -40°C to +85°C
2.Construction

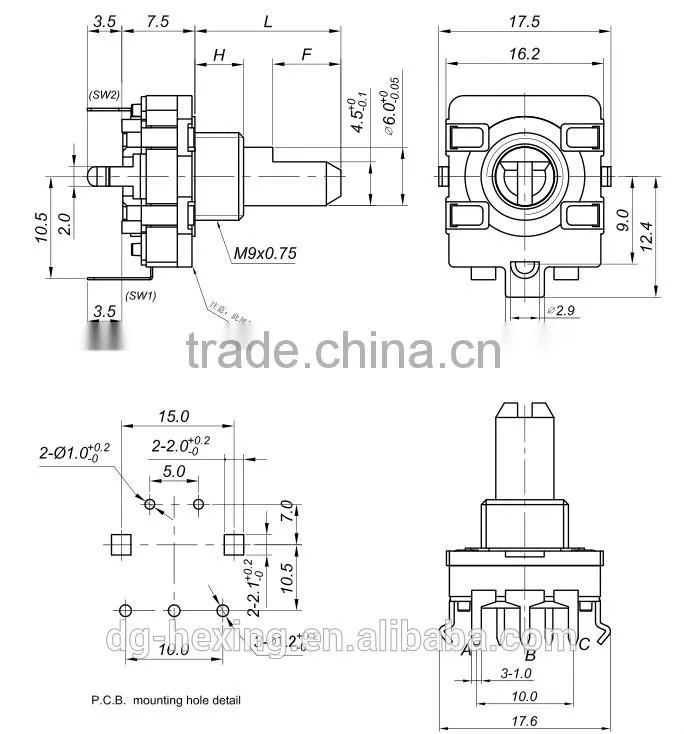

2.1>Dimensions Refer to attached drawing
3.Rating
3.1>Rated voltage: DC 5V
3.2>Maximum operating current (resistive load); Each lead: 0.5mA(MAX 5mA; MIN 0.5mA);Common lead:lmA(MAX 10mA; MIN 0.5mA)
4.Application Nots
4.1>Avoid storing the products in a place at high temperature,high humidity and in Corrosive gases.Please use this product as soon as possible with 6 months limitation.If any rimainder left after packing is opened,please store it with proper moistureprooting,gasproofing etc.
4.2> The encoder pulses count method should be designed with taking operating speed,sampling time and design of the microcomputer softwae into cosideration.
4.3>With this products the detent position output consnlt fig.5--1.Therefore make the A phase the reference at the soft ware design stage.
4.4> At design of the pulse count process.Using the C/R filter circuit is Recommended.(fig.1)
4.5> Care must be taken not to expose this product to water or dew to prevent possible problem in pluses output waveform
250pcs in a polyfoam box ,2000pcs in a carton.
Delivery pot: Shenzhen
1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.
2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.
3>Quick and exact lead time.
4>We have QC team for every procedure and 100% satisfaction guaranteed.
5>OEM and ODM is welcome
6>Any questions and requirements ,we will reply you within 24 hours.
Dongguan Unionstar Electronic Co., Ltd. was established in 2001, We have our own factory ,it's 7000 square meters, and more than 300 skilled workers. We specialized in designing, developing and manufacturing rotary encoders, the switch rotary encoders, the switch potentiometers, potentiometers, as well as plastic and hardware accessories. They are widely used for audio, car navigation system, household appliances, sport equipment and medical equipment, handheld walkie-talkie, a small intercom system center, etc. Various controls for Devices in automotive field. Controls for image/sound devices, including DVD players, mini component stereos, CD players and portable audio players.All kinds of level control, turning and timer setting in audio-visual equipment, ordinary household electric appliances, radio equipment, etc .
In order to keep improving the quality of our products, we have been awarded the certificate of ISO9001:2008, and will offer our customers the best quality products and services.
"Fine Quality Means A Brighter Tomorrow". A slogan that we believe will win a lot of trust among our customers and lead to better success in years to come!
Application
Hong Kong HKDTC Fair in 2015
1. What's the rotary encoder?
Reply: For rotary encoder, the shaft size can custom as your design, it has 3 type shaft design, such as flat shaft, KQ shaft and R shaft, the material of shaft can be metal and plastic.
360 degree rotation with clicks, and the rotational torque can custom as your demands.
The solution is 12 pulses of 12 detents, 12 pulses of 24 detents or 24 pulses of 24 detents, 24 pulses wihout detent. It's rotational life is 30000 cycles.
2, What's the function of rotary encoder?
Reply: It's good for controlling tempreture for refrigerator, controlling frequency for radio,fitness equipment, medical equipment, controlling cluminance for lamp and LED light, and volume control for most auodio and vedio equipment, such as car navigation system, car audio and vedio, DVD, DJ, multi-speakers, etc. It can replace of ALPS rotary encoder.
