plastic shaft rotary encoder with switch for car GPS EC12S
- 100000 Piece / Pieces per Month
- Shenzhen Guangzhou
- T/T Credit Card
- LJV RE09101AB-V01-0026 Incremental rotary encoder, 10 pulses, 20 positions, horizontal, with press switch, shaft length 15mm
- EC18/RE18 Digital Absolute Encoder Rotary Type For Wash Machine Control Panel,Logical encoder,12 Channel encoder
- EC16/RE16 incremental rotary encoder, 12 position/12 pulses, IP67 waterproof, without press switch
- RS126 double pole, double throw, Self -return switch,Reset Switch,Left and right rotation
- RS26 1 Pole Position 10 Selectable Band Rotary Channel Selector Switch
- RS12 gear switch Multi-position rotary switch 2 gear 4 gear audio semi-circular handle rotary switch
Product Details
Place of Origin: | Guangdong, China | Brand Name: | USE | Model Number: | EC12S-H6-27.5F12-24P-24CC |
Max. Current: | 10mA | Max. Voltage: | 5V | Mechanical Life: | 30000 cycles |
Product Description

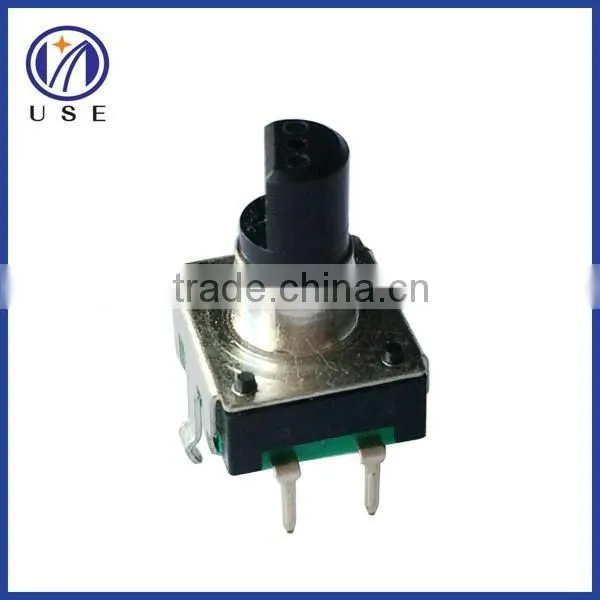

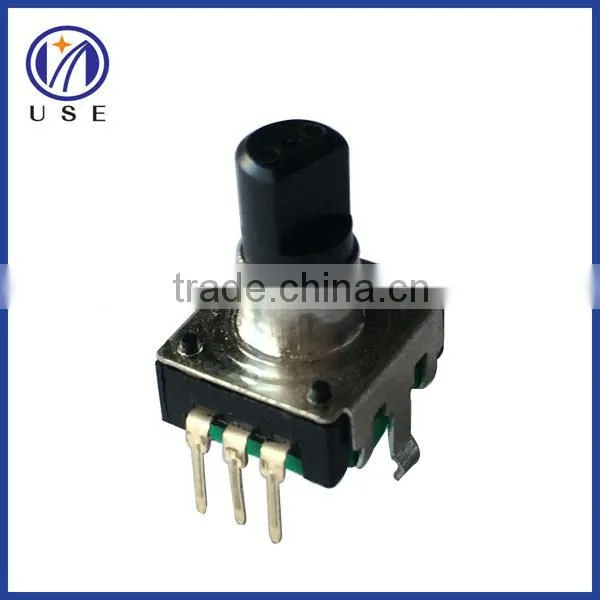

Plastic shaft 360 degree rotary encoder with switch for car GPS EC12S
12MM encoder with switch, 360 degree rotary , rotary life is 30000 cycles, semi-circular plastic shaft, shaft length 27.5MM, 24 pulses of 24 position, best quaility and price for car GPS.
General: |
This specification applies to the 11mm size metal shaft rotary encoder (incremental) for microscopic current circuit used in electronic equipment |
Operating temperature range: -10 to +45oC |
Storage temperature range: -10 to +65oC |
Rating: |
Rating voltage: 5V DC |
Operating current (resistive load) each bit: 1mA |
Electrical characteristics: |
Rotational noise: 3.5V minimum |
Insulation resistance: between individual terminals and bushing: 100M ohms minimum |
Rating: 5V DC, 10mA (1mA minimum) |
Mechanical characteristics: |
Total rotational angle: 360o (endless) |
Detent torque: 122.4 +/- 71.4 gf.cm |
Number and position of detents: 20 detents (step angle: 18o +/- 3o) |
Shaft play in axial direction: 0.55mmp-p maximum |
Rotation play at the click position: 5o maximum |
Endurance characteristics: |
Operating life: 20,000 times |
Styrofoam protection , 2000pcs in a carton box.
FOB Shenzhen
1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.
2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.
3>Quick and exact lead time.
4>We have QC team for every procedure and 100% satisfaction guaranteed.
5>OEM and ODM is welcome
6>Any questions and requirements ,we will reply you within 24 hours.
