11mm incremental encoder SMD encoder with metal shaft
- 100000 Piece / Pieces per Month
- Shenzhen Guangzhou
- T/T Credit Card
- LJV RE09101AB-V01-0026 Incremental rotary encoder, 10 pulses, 20 positions, horizontal, with press switch, shaft length 15mm
- EC18/RE18 Digital Absolute Encoder Rotary Type For Wash Machine Control Panel,Logical encoder,12 Channel encoder
- EC16/RE16 incremental rotary encoder, 12 position/12 pulses, IP67 waterproof, without press switch
- RS126 double pole, double throw, Self -return switch,Reset Switch,Left and right rotation
- RS26 1 Pole Position 10 Selectable Band Rotary Channel Selector Switch
- RS12 gear switch Multi-position rotary switch 2 gear 4 gear audio semi-circular handle rotary switch
Product Details
Place of Origin: | Guangdong, China | Brand Name: | USE | Model Number: | EC11-SMD |
Max. Current: | 10mA | Max. Voltage: | 5v | Mechanical Life: | 30,000 cycles |
Product Description

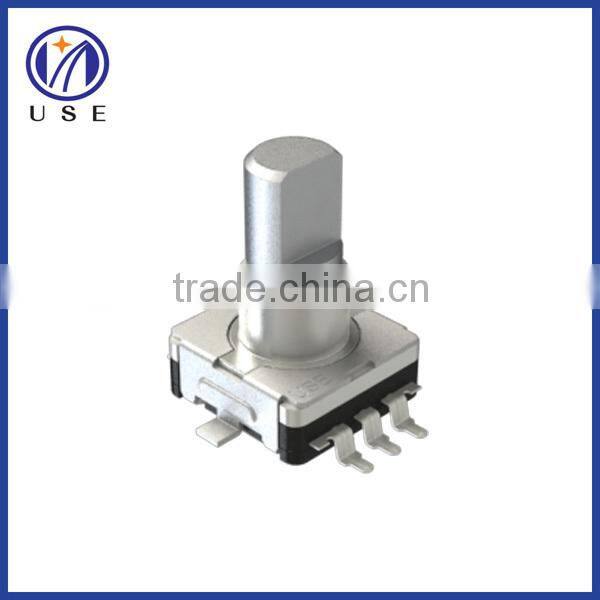

11mm car audio control encoder
SMD rotary encoder, heat resisting rotary switch,360 degree rotary shaft,apply for car audio, CD,DVD and household appliances.
Detailed Description
Insulated shart rotary encoder series with 360°rotational angle.
1.General
1.1 Scope>This specification applies to 11mm size low-profile rotary encoder(incremental type) for microscopic current circuits,used in electronic equipment
1.2Standard atmospheric conditions>Unless otherwise specified,the standard range of atmospheric conditions for making measurements and test is as following limits:
Ambient temperature: 15°C to 35°C
Relative humidity : 25% to 85%
Air pressure : 86kpa to 106kpa
1.3>Operating temperature range: -10°C to 70°C
1.4> Storage temperature range : -40°C to +85°C
2.Construction
2.1>Dimensions Refer to attached drawing
3.Rating
3.1>Rated voltage: DC 5V
3.2>Maximum operating current (resistive load); Each lead: 0.5mA(MAX 5mA; MIN 0.5mA);Common lead:lmA(MAX 10mA; MIN 0.5mA)
4.Application Nots
4.1>Avoid storing the products in a place at high temperature,high humidity and in Corrosive gases.Please use this product as soon as possible with 6 months limitation.If any rimainder left after packing is opened,please store it with proper moistureprooting,gasproofing etc.
4.2> The encoder pulses count method should be designed with taking operating speed,sampling time and design of the microcomputer softwae into cosideration.
4.3>With this products the detent position output consnlt fig.5--1.Therefore make the A phase the reference at the soft ware design stage.
4.4> At design of the pulse count process.Using the C/R filter circuit is Recommended.(fig.1)
4.5> Care must be taken not to expose this product to water or dew to prevent possible problem in pluses output waveform
polyfoam box+carton
250pcs per polyfoam, 2000pcs per carton
FOB Shenzhen
1> 5 pieces free samples is available.
2>Short lead time.
3>Best quality and service.
