11mm DVD audio rotary encoder tal and plastic shaft is available, multimedia car audio control,CD/DVD stereo control.

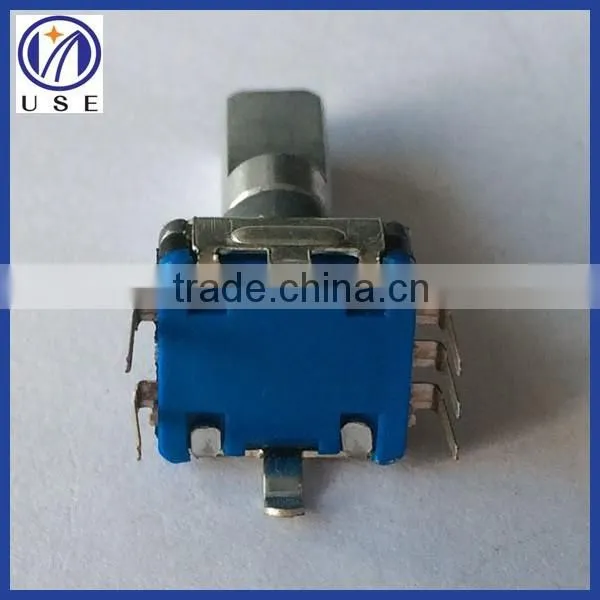

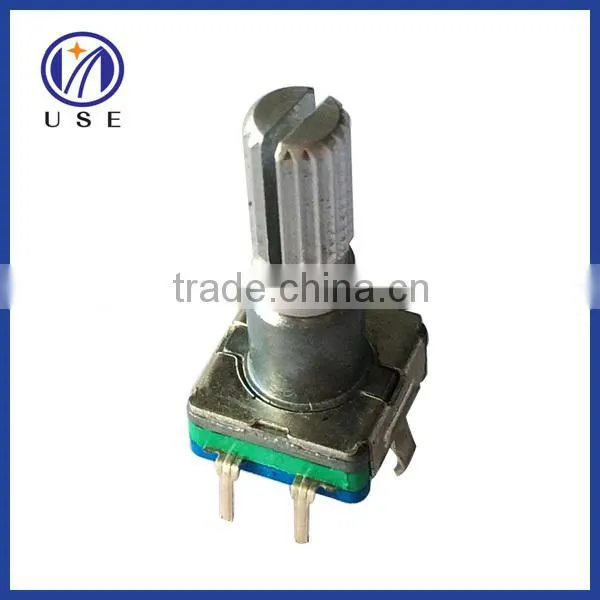

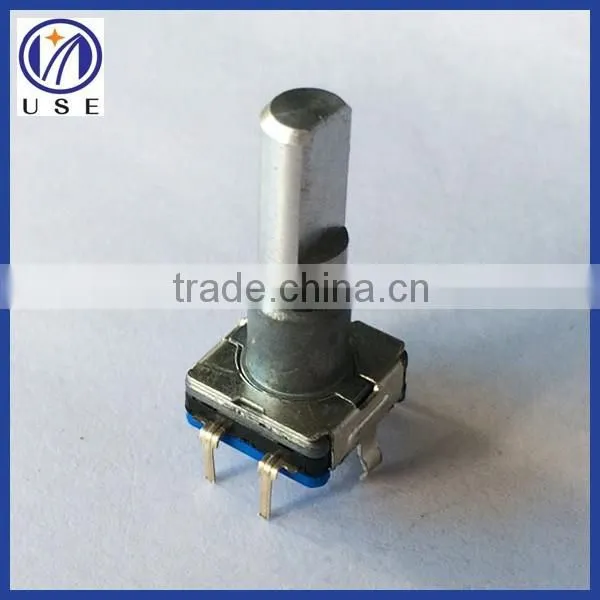

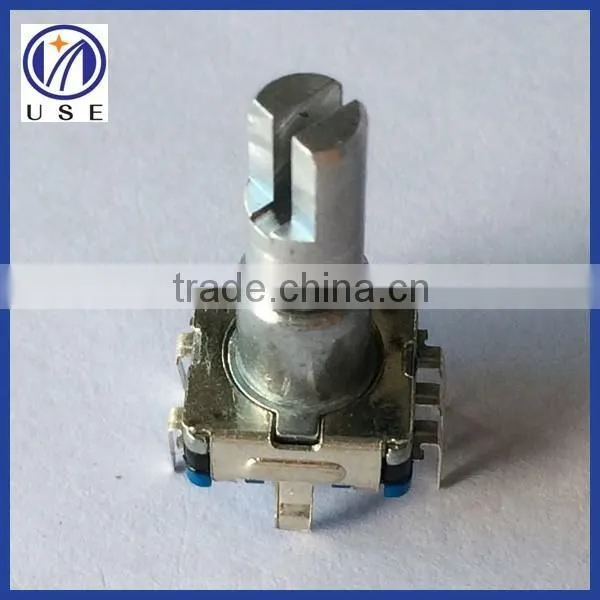

11mm DVD audio rotary encoder switch
11mm DVD audio rotary encoder switch.Universal encoder switch, metal and plastic shaft is available, pin type, can be screwed,SMD type is available with key switch encoder, the structure is more reliable and better quality.
Application: multimedia car audio control,CD/DVD stereo control,household appliances control,etc..
Detailed Description:
Insulated shart rotary encoder series with 360°rotational angle.
1.General
1.1 Scope>This specification applies to 11mm size low-profile rotary encoder(incremental type) for microscopic current circuits,used in electronic equipment
1.2Standard atmospheric conditions>Unless otherwise specified,the standard range of atmospheric conditions for making measurements and test is as following limits:
Ambient temperature: 15°C to 35°C
Relative humidity : 25% to 85%
Air pressure : 86kpa to 106kpa
1.3>Operating temperature range: -10°C to 70°C
1.4> Storage temperature range : -40°C to +85°C
2.Construction
2.1>Dimensions Refer to attached drawing
3.Rating
3.1>Rated voltage: DC 5V
3.2>Maximum operating current (resistive load); Each lead: 0.5mA(MAX 5mA; MIN 0.5mA);Common lead:lmA(MAX 10mA; MIN 0.5mA)
4.Application Nots
4.1>Avoid storing the products in a place at high temperature,high humidity and in Corrosive gases.Please use this product as soon as possible with 6 months limitation.If any rimainder left after packing is opened,please store it with proper moistureprooting,gasproofing etc.
4.2> The encoder pulses count method should be designed with taking operating speed,sampling time and design of the microcomputer softwae into cosideration.
4.3>With this products the detent position output consnlt fig.5--1.Therefore make the A phase the reference at the soft ware design stage.
4.4> At design of the pulse count process.Using the C/R filter circuit is Recommended.(fig.1)
4.5> Care must be taken not to expose this product to water or dew to prevent possible problem in pluses output waveform
