16mm Newest arrival coffee machine parts rotary encoder switch

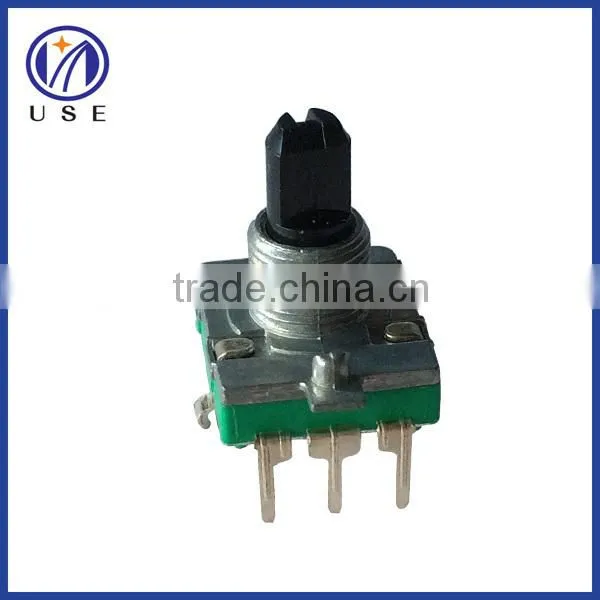

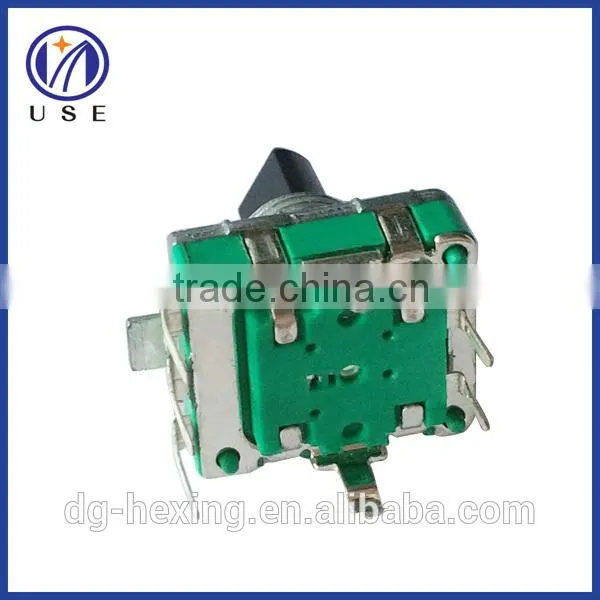

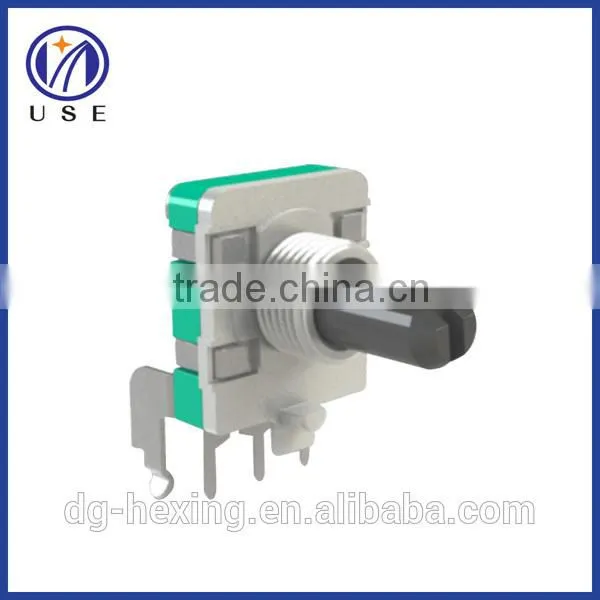

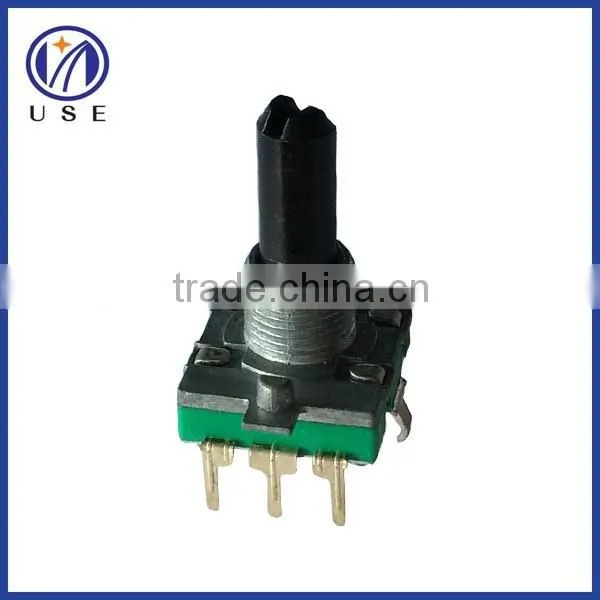

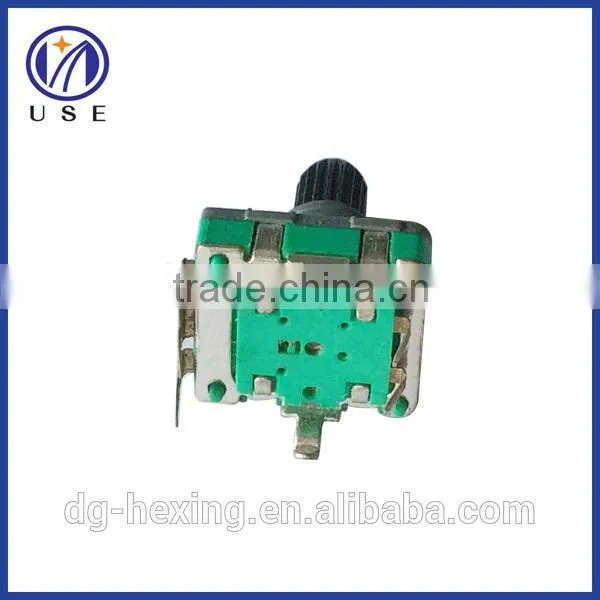

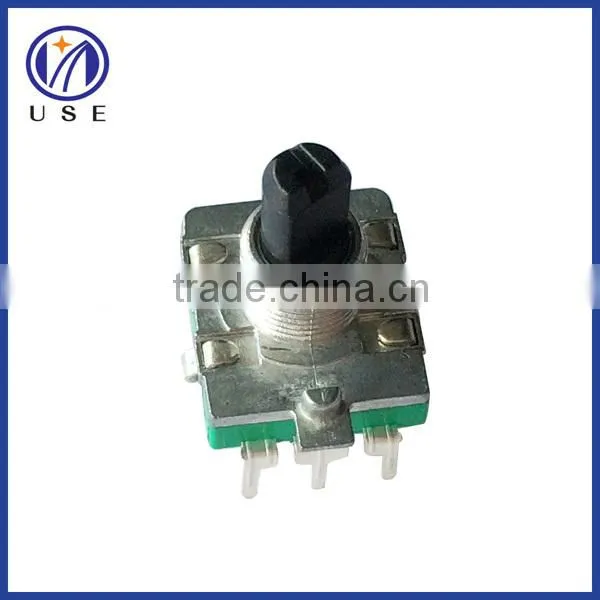

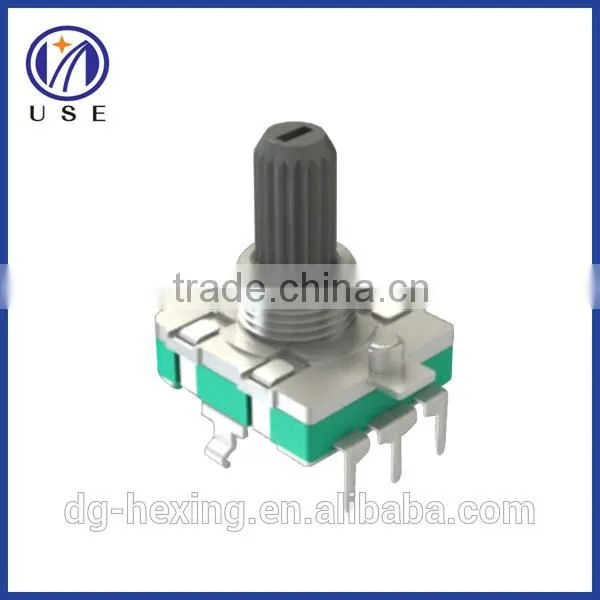

16MM with switch encoder, pin type, mounting height 7MM, 5MM threaded sleeve, F shape plastic handle, shaft length 20MM, 24 pulses of 24 positioning, is Positive wave,custom shaft design is available.
Detailed Description:
Insulated shart rotary encoder series with 360°rotational angle.
1.General
1.1 Scope> This specification applies to 16mm size low-profile rotary encoder(incremental type) for microscopic current circuits,used in electronic equipment
1.2Standard atmospheric conditions>Unless otherwise specified,the standard range of atmospheric conditions for making measurements and test is as following limits:
Ambient temperature: 15°C to 35°C
Relative humidity : 25% to 85%
Air pressure : 86kpa to 106kpa
1.3>Operating temperature range: -10°C to 70°C
1.4> Storage temperature range : -40°C to +85°C
2.Construction
2.1>Dimensions Refer to attached drawing
3.Rating
3.1>Rated voltage: DC 5V
3.2>Maximum operating current (resistive load); Each lead: 0.5mA(MAX 5mA; MIN 0.5mA);Common lead:lmA(MAX 10mA; MIN 0.5mA)
4.Application Nots
4.1>Avoid storing the products in a place at high temperature,high humidity and in Corrosive gases.Please use this product as soon as possible with 6 months limitation.If any rimainder left after packing is opened,please store it with proper moistureprooting,gasproofing etc.
4.2> The encoder pulses count method should be designed with taking operating speed,sampling time and design of the microcomputer softwae into cosideration.
4.3>With this products the detent position output consnlt fig.5--1.Therefore make the A phase the reference at the soft ware design stage.
4.4> At design of the pulse count process.Using the C/R filter circuit is Recommended.(fig.1)
4.5> Care must be taken not to expose this product to water or dew to prevent possible problem in pluses output waveform
Application
250pcs in a polyfoam box ,2000pcs in a carton.
Delivery pot: Shenzhen
1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.
2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.
3>Quick and exact lead time.
4>We have QC team for every procedure and 100% satisfaction guaranteed.
5>OEM and ODM is welcome
6>Any questions and requirements ,we will reply you within 24 hours.
